Epson Expression 10000XL Service Manual

Expression 10000XL Revision A
DISASSEMBLY/ASSEMBLY Disassembly Procedure 60
5. Lift the TPU Inverter Board and remove the Lamp Connector Cables at the both sides,
then remove the TPU Inverter Board.

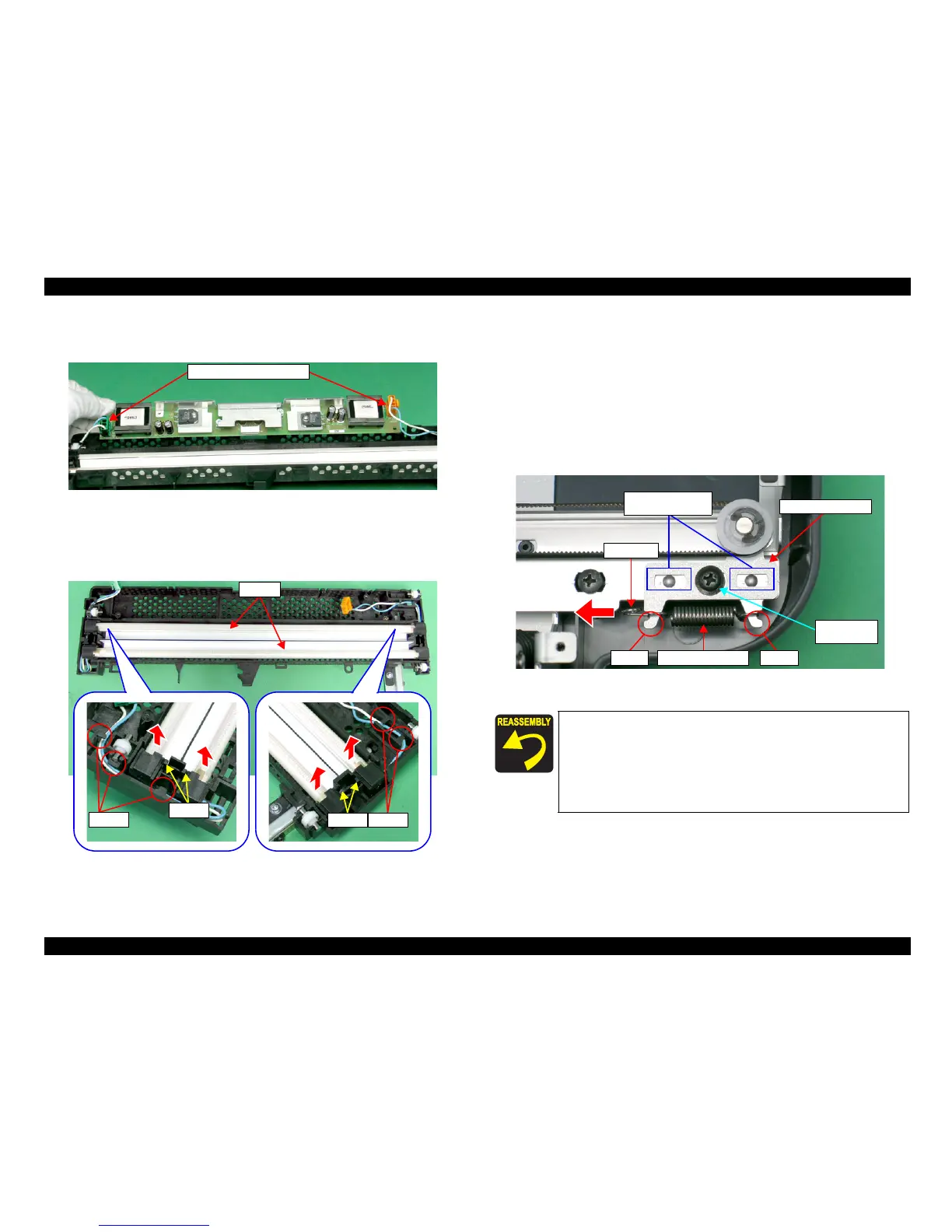

Figure 4-54. Removal of TPU Inverter Board (2)
6. Remove the Lamp Connector Cables at both sides from the Guides.
7. Release the four hooks that are securing both edges of Lamps, and remove the Lamp
one by one.
Figure 4-55. Removal of Lamp
4.2.12.8 Removal of TPU CR Belt
1. Remove the TPU CR Motor Belt. (Refer to 4.2.12.5 Removal of TPU CR Motor
Belt/TPU CR Motor Step 5
2. Remove the TPU Carriage Unit. (Refer to 4.2.12.6 Removal of TPU Carriage Unit)
3. Pull the A portion of the Extension Spring in a direction of the arrow, and release it
from the two hooks of the Pulley Unit, then remove the Extension Spring.
4. Remove the one screw (CC SCREW, M4x6) that is securing the Pulley Unit, and
remove the Pulley Unit.
Figure 4-56. Removal of Pulley Unit
Lamp Connector Cables
GuidesHooks
Guides
Hooks
Lamps
Reinstall the Pulley Unit in the following order.
(Refer to Figure 4-56)
1. Match the Positioning Holes and Dowels.
2. Tighten the screws tentatively.
3. Install the Extension Spring.
4. Tighten the screws.
A portion
Extension Spring HooksHooks
M4x6
(50±10Ncm)
Pulley Unit
Positioning Holes
and Dowels

Epson Expression 10000XL Specifications

Resolution

optical resolution	2400 dpi
maximum resolution with Micro Step Drive technology	2400 x 4800 dpi
interpolated resolution	12, 800 x 12, 800 dpi

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption operating without optional unit	45W
power consumption operating with optional unit	55W
power consumption sleep mode without optional unit	6W

Operating Environment

operating temperature	41ºF to 95ºF (5ºC to 35ºC)
operating humidity	10% to 80% (no condensation)
storage humidity	10% to 85% (no condensation)

Interface and Connectivity

interface	USB 1.1/2.0, IEEE 1394 (FireWire), optional Ethernet
system compatibility	Windows 98SE, 2000 Me, XP; Macintosh OS 9.1 or later

Weight and Dimensions

maximum scan area	12.2" x 17.2" (310mm x 437mm)
width	25.8" (656mm)
depth	18.0" (458mm)
height	6.2" (158mm)
weight	28.7 lb (13 kg approx.)
