Epson Expression 10000XL Service Manual

Expression 10000XL Revision A
DISASSEMBLY/ASSEMBLY Disassembly Procedure 59
4.2.12.7 Removal of TPU Inverter Board/Lamp
1. Remove the TPU Carriage Cover. (Refer to 4.2.12.6 Removal of TPU Carriage Unit
Step 2
2. Remove the Carriage FFC from the TPU Inverter Board.
3. Remove the three screws (CP(O), M3x6) that are securing the TPU Inverter Board.
4. Slide the TPU Inverter Board until its Ribs match the notches of the Frame, and release
the Board from the two Ribs of the Carriage Frame.

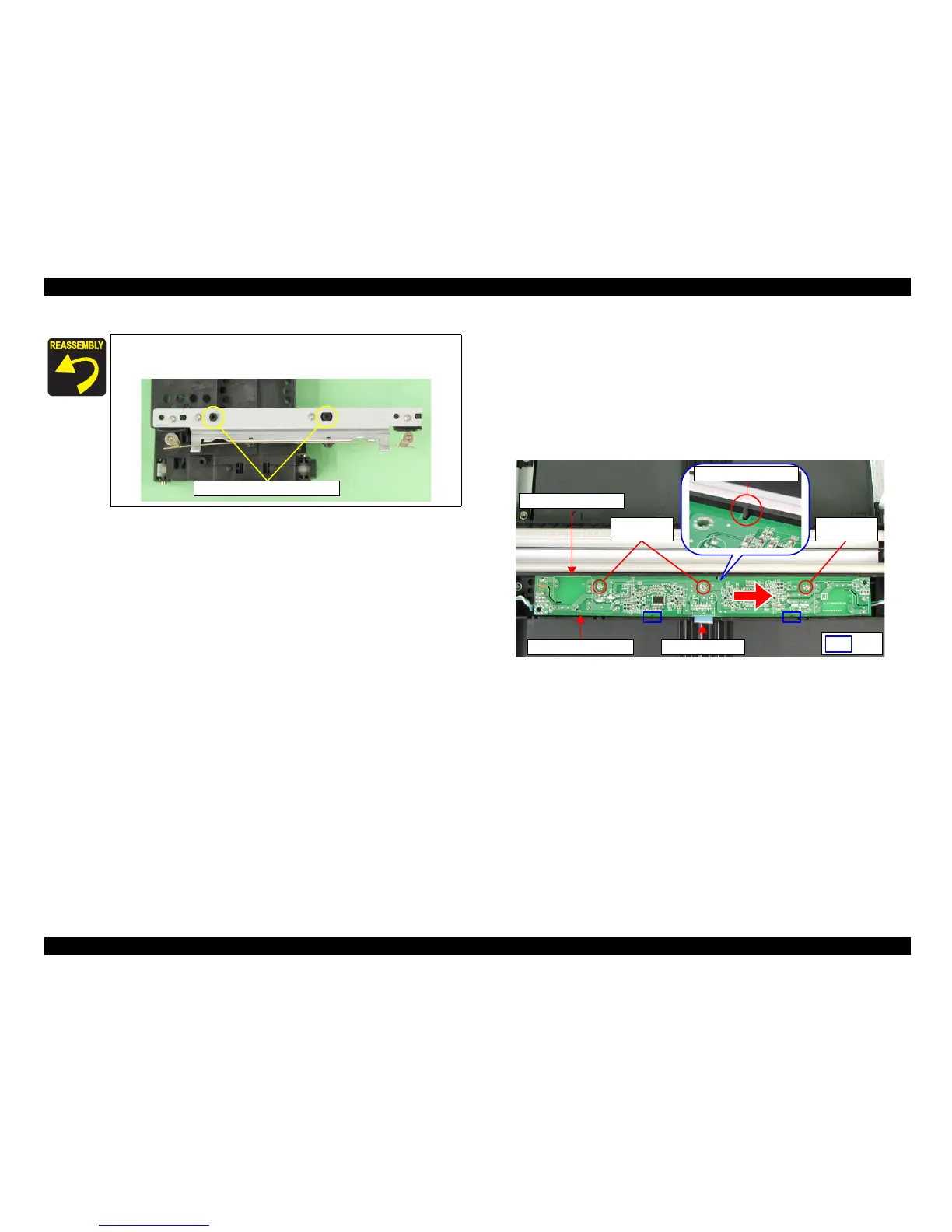

Figure 4-53. Removal of TPU Inverter Board (2)
When reinstalling the Carriage Guides, be sure to match the holes
and dowels.
Positioning Holes and Dowels
TPU Inverter Board
M3x6
(50±10Ncm)
M3x6
(50±10Ncm)
Carriage FFC
Ribs
Notches and Dowels
Carriage Frame

Epson Expression 10000XL Specifications

Resolution

optical resolution	2400 dpi
maximum resolution with Micro Step Drive technology	2400 x 4800 dpi
interpolated resolution	12, 800 x 12, 800 dpi

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption operating without optional unit	45W
power consumption operating with optional unit	55W
power consumption sleep mode without optional unit	6W

Operating Environment

operating temperature	41ºF to 95ºF (5ºC to 35ºC)
operating humidity	10% to 80% (no condensation)
storage humidity	10% to 85% (no condensation)

Interface and Connectivity

interface	USB 1.1/2.0, IEEE 1394 (FireWire), optional Ethernet
system compatibility	Windows 98SE, 2000 Me, XP; Macintosh OS 9.1 or later

Weight and Dimensions

maximum scan area	12.2" x 17.2" (310mm x 437mm)
width	25.8" (656mm)
depth	18.0" (458mm)
height	6.2" (158mm)
weight	28.7 lb (13 kg approx.)
