Epson Expression 10000XL Service Manual

Expression 10000XL Revision A
DISASSEMBLY/ASSEMBLY Overview 34

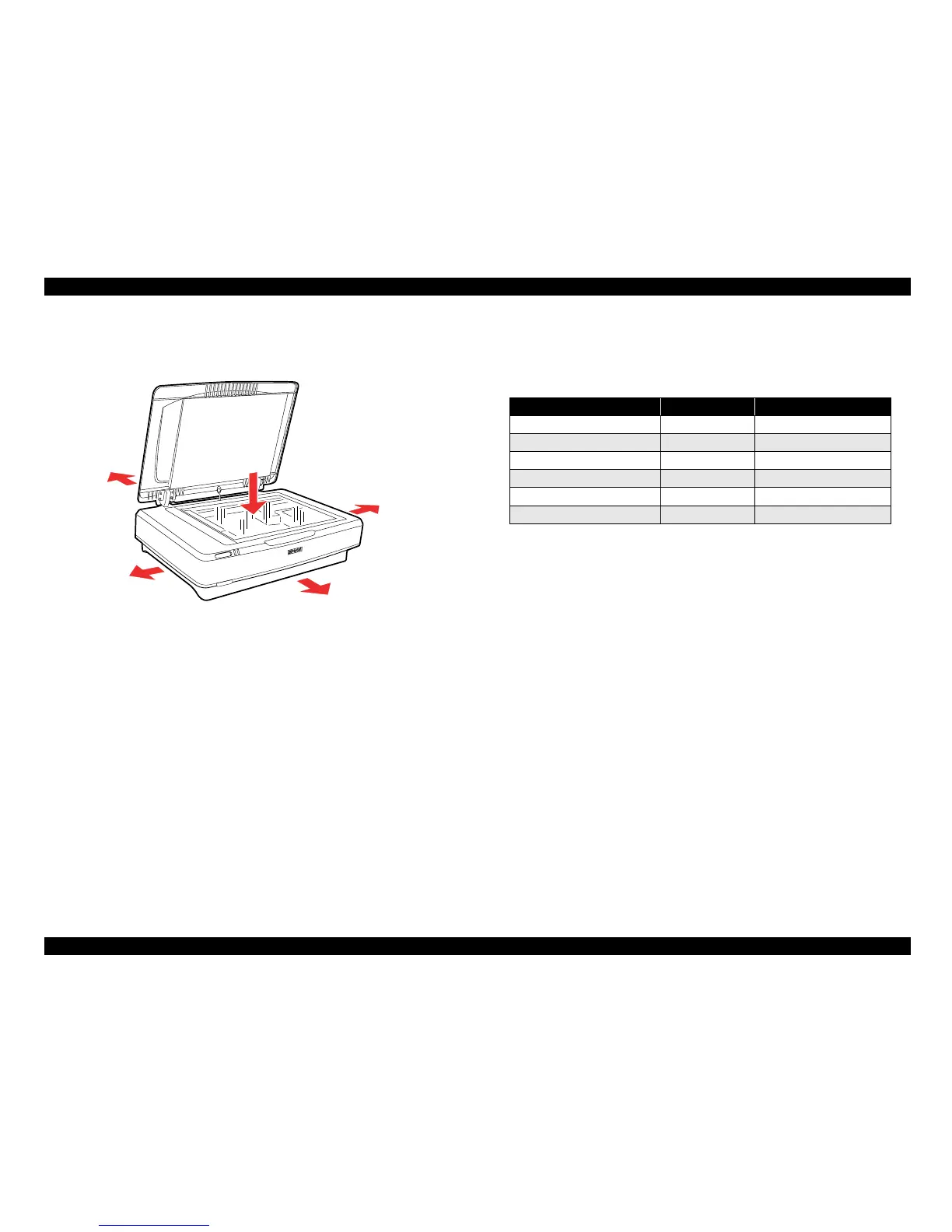

The following figure shows the definition of the scanner orientations explained in the
disassembly procedure.
Figure 4-1. Orientation Definition
4.1.2 Recommended Tools
To protect this product from damage, use the specified tools indicated in the following
table.
Inside
Right
Left
Front
Rear
Table 4-1. Specified Tools
The Name of Tools Supplier Part number
Phillips screwdriver No. 1 EPSON 1080530
Phillips screwdriver No. 2 EPSON 1080532
Flat-blade screwdriver EPSON 1080527
Allen hex socket driver (5 mm) EPSON TBD
Long-nose pliers EPSON 1080564
Tweezers EPSON 1080561

Epson Expression 10000XL Specifications

Resolution

optical resolution	2400 dpi
maximum resolution with Micro Step Drive technology	2400 x 4800 dpi
interpolated resolution	12, 800 x 12, 800 dpi

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption operating without optional unit	45W
power consumption operating with optional unit	55W
power consumption sleep mode without optional unit	6W

Operating Environment

operating temperature	41ºF to 95ºF (5ºC to 35ºC)
operating humidity	10% to 80% (no condensation)
storage humidity	10% to 85% (no condensation)

Interface and Connectivity

interface	USB 1.1/2.0, IEEE 1394 (FireWire), optional Ethernet
system compatibility	Windows 98SE, 2000 Me, XP; Macintosh OS 9.1 or later

Weight and Dimensions

maximum scan area	12.2" x 17.2" (310mm x 437mm)
width	25.8" (656mm)
depth	18.0" (458mm)
height	6.2" (158mm)
weight	28.7 lb (13 kg approx.)
