Epson Expression 10000XL Service Manual

Expression 10000XL Revision A
TROUBLE SHOOTING Action on Troubles 28

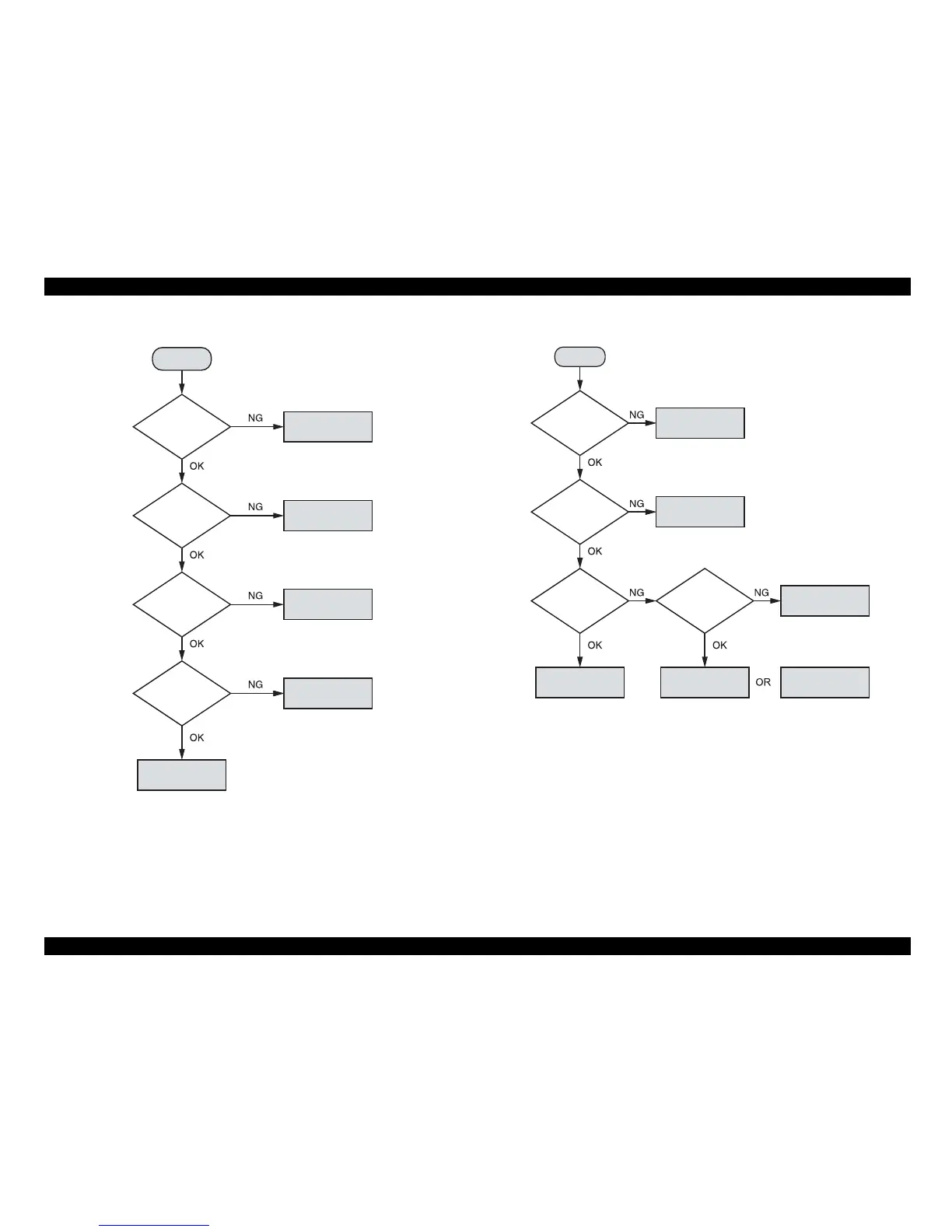

Figure 3-1. Main Unit doesn’t operate initialization. Figure 3-2. Carriage Unit doesn’t work.
Are all Connectors
connected normally?
Start
Is the Power Supply
without a fuse blow?
Is the Lamp lit?
Can the CR Motor
operate normally?
Replace the Power
Supply Board.
Check the connections.
Replace the Power
Supply Board.
Replace the CR
Motor.
Replace the Power
Supply Board.
Is the Upper Housing
installed correctly?
Start
Is the Connector
CN2 on the Main Board
connected?
Is the Carriage
Movement Mechanism
normal?
Replace the Main
Board.
Install the Upper
Housing properly.
Connect the Connector.
Can the CR Motor
operate normally?
Disassemble and
reassemble.
Replace the CR Motor.
Replace the
corresponding parts.

Epson Expression 10000XL Specifications

Resolution

optical resolution	2400 dpi
maximum resolution with Micro Step Drive technology	2400 x 4800 dpi
interpolated resolution	12, 800 x 12, 800 dpi

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption operating without optional unit	45W
power consumption operating with optional unit	55W
power consumption sleep mode without optional unit	6W

Operating Environment

operating temperature	41ºF to 95ºF (5ºC to 35ºC)
operating humidity	10% to 80% (no condensation)
storage humidity	10% to 85% (no condensation)

Interface and Connectivity

interface	USB 1.1/2.0, IEEE 1394 (FireWire), optional Ethernet
system compatibility	Windows 98SE, 2000 Me, XP; Macintosh OS 9.1 or later

Weight and Dimensions

maximum scan area	12.2" x 17.2" (310mm x 437mm)
width	25.8" (656mm)
depth	18.0" (458mm)
height	6.2" (158mm)
weight	28.7 lb (13 kg approx.)
