Epson Expression 10000XL Service Manual

Expression 10000XL Revision A
DISASSEMBLY/ASSEMBLY Disassembly Procedure 61
5. Remove the one screw (CC SCREW, M4x6) that is securing the Pulley Fixing Plate,
and remove the Pulley Fixing Plate and the Pulley.
6. Remove the TPU CR Belt.

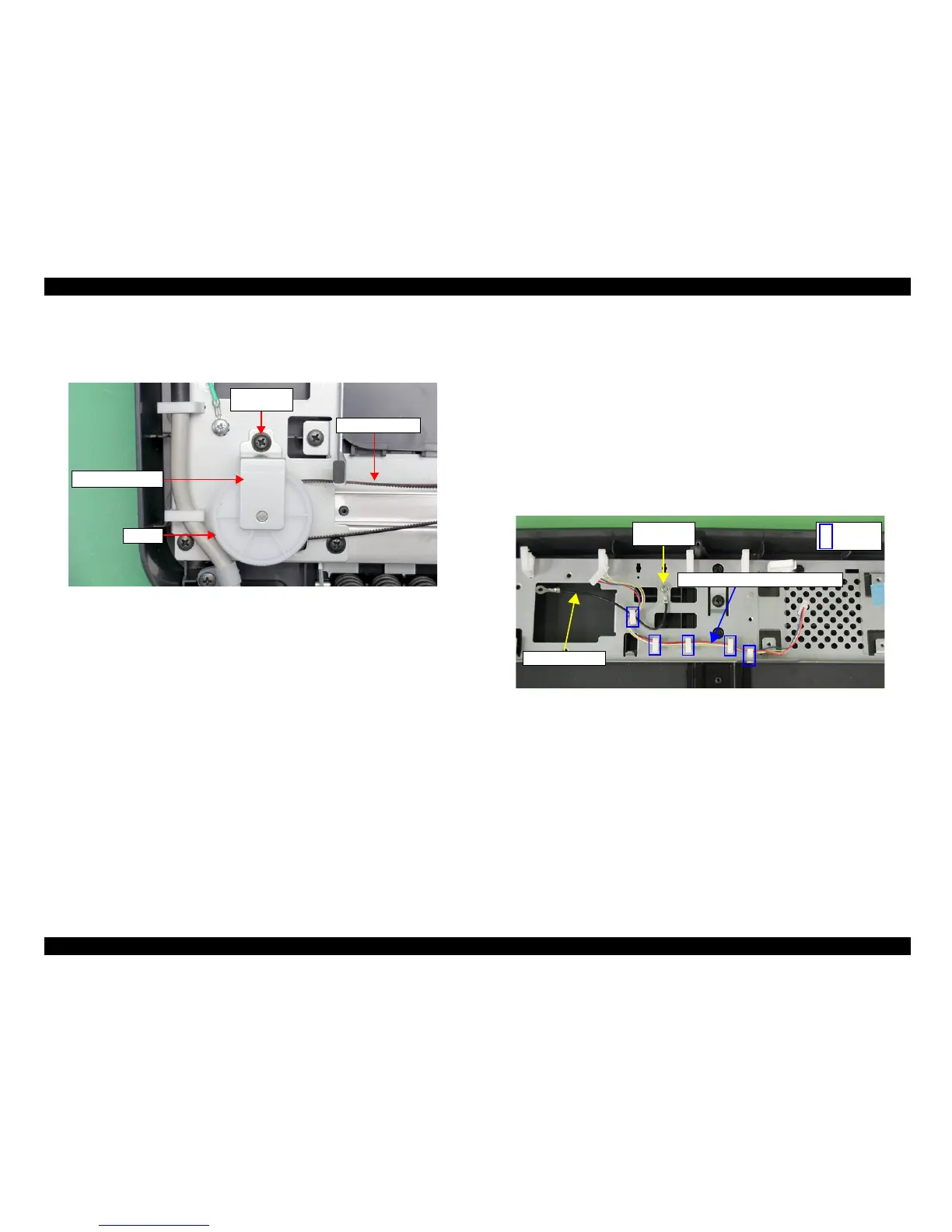

Figure 4-57. Removal of TPU CR Belt
4.2.12.9 Removal of Hinges
1. Remove the TPU Main Board. (Refer to 4.2.12.3 Removal of TPU Main Board)
2. Remove the OPTION I/F Connector Cable. (Refer to 4.2.12.4 Removal of OPTION
I/F Connector Cable)
3. Remove the TPU CR Motor. (Refer to 4.2.12.5 Removal of TPU CR Motor Belt/
TPU CR Motor)
4. Remove the TPU CR Belt. (Refer to 4.2.12.8 Removal of TPU CR Belt)
5. Remove the screw (CP(S-P1), M4x6) that is securing the Earth Cable.
6. Remove the TPU CR Motor Connector Cable and the Earth Cable from the clamps (5
pcs).
Figure 4-58. Removal of Earth Cable/TPU CR Motor Connector Cable
Pulley Fixing Plate
Pulley
M4x6
(50±10Ncm)
TPU CR Belt
Earth Cable
TPU CR Motor Connector Cable
M4x6
(50±10Ncm)
Clamps

Epson Expression 10000XL Specifications

Resolution

optical resolution	2400 dpi
maximum resolution with Micro Step Drive technology	2400 x 4800 dpi
interpolated resolution	12, 800 x 12, 800 dpi

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption operating without optional unit	45W
power consumption operating with optional unit	55W
power consumption sleep mode without optional unit	6W

Operating Environment

operating temperature	41ºF to 95ºF (5ºC to 35ºC)
operating humidity	10% to 80% (no condensation)
storage humidity	10% to 85% (no condensation)

Interface and Connectivity

interface	USB 1.1/2.0, IEEE 1394 (FireWire), optional Ethernet
system compatibility	Windows 98SE, 2000 Me, XP; Macintosh OS 9.1 or later

Weight and Dimensions

maximum scan area	12.2" x 17.2" (310mm x 437mm)
width	25.8" (656mm)
depth	18.0" (458mm)
height	6.2" (158mm)
weight	28.7 lb (13 kg approx.)
