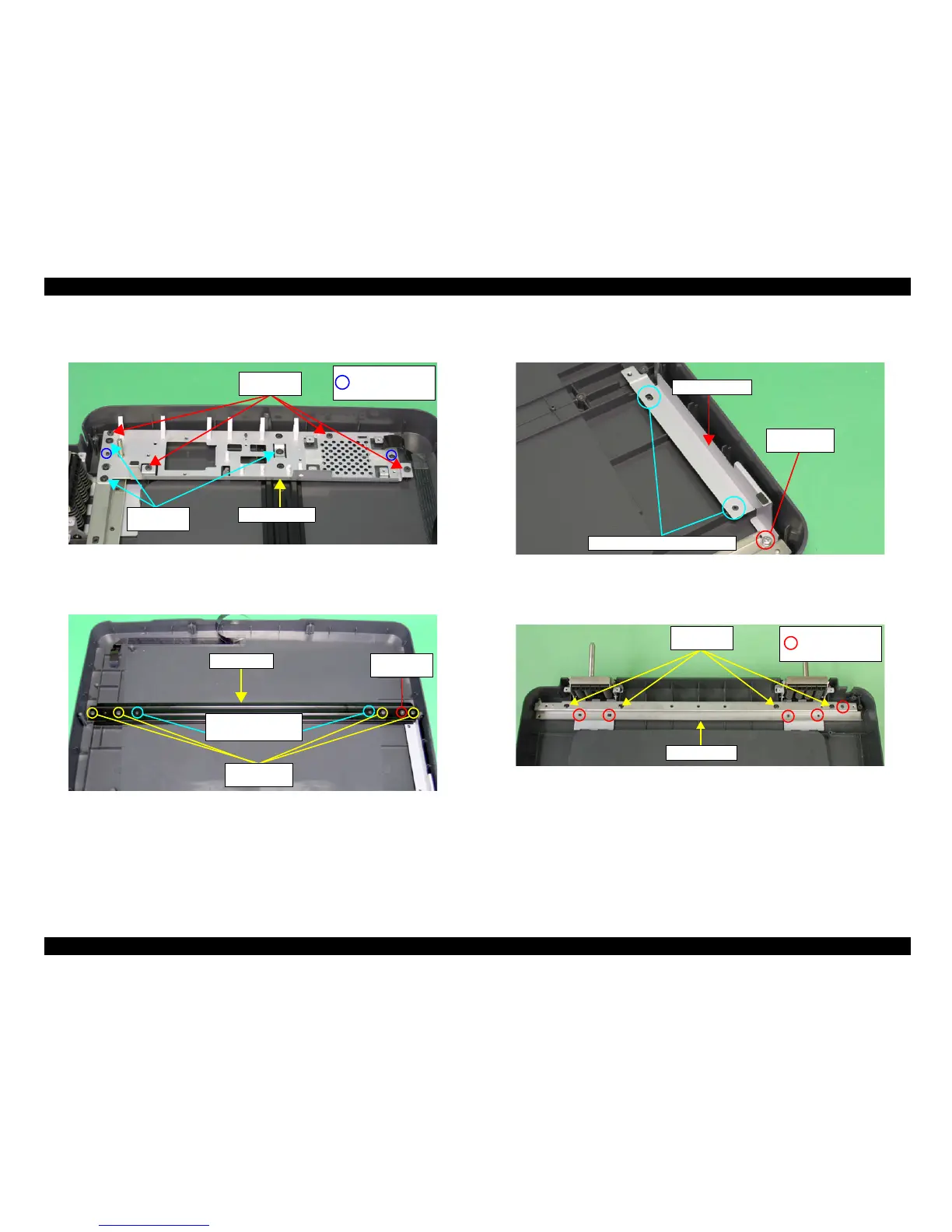

DISASSEMBLY/ASSEMBLY Disassembly Procedure 62
7. Remove the seven screws (CBP, M4x10:4 pcs, CC SCREW, M4x6:3 pcs) that are
securing the Fixing Plate A, and remove the Fixing Plate A.
Figure 4-59. Removal of Fixing Plate A
8. Remove the five screws (CBP, M4x10:4 pcs, CC SCREW, M4x6: 1 pc) that are
securing the Frame A, and remove the Frame A.
Figure 4-60. Removal of Frame A
9. Remove the one screw (CC SCREW, M4x5) that is securing the Fixing Plate B, and
remove the Fixing Plate B.
Figure 4-61. Removal of Fixing Plate B
10. Remove the four screws (CBP, M4x10) that are securing the Guide Rail, and remove
the Guide Rail.
Figure 4-62. Removal of Guide Rail
M4x10
(50±10Ncm)
M4x6
(50±10Ncm)
Fixing Plate A
Positioning Holes
and Dowels
Frame A
M4x10
(50±10Ncm)
M4x6
(50±10Ncm)
Positioning Holes
and Dowels
M4x5
(50±10Ncm)
Fixing Plate B
Positioning Holes and Dowels
M4x10
(50±10Ncm)
Guide Rail
Positioning Holes
and Dowels
