Epson Expression 10000XL Service Manual

Expression 10000XL Revision A
DISASSEMBLY/ASSEMBLY Disassembly Procedure 58

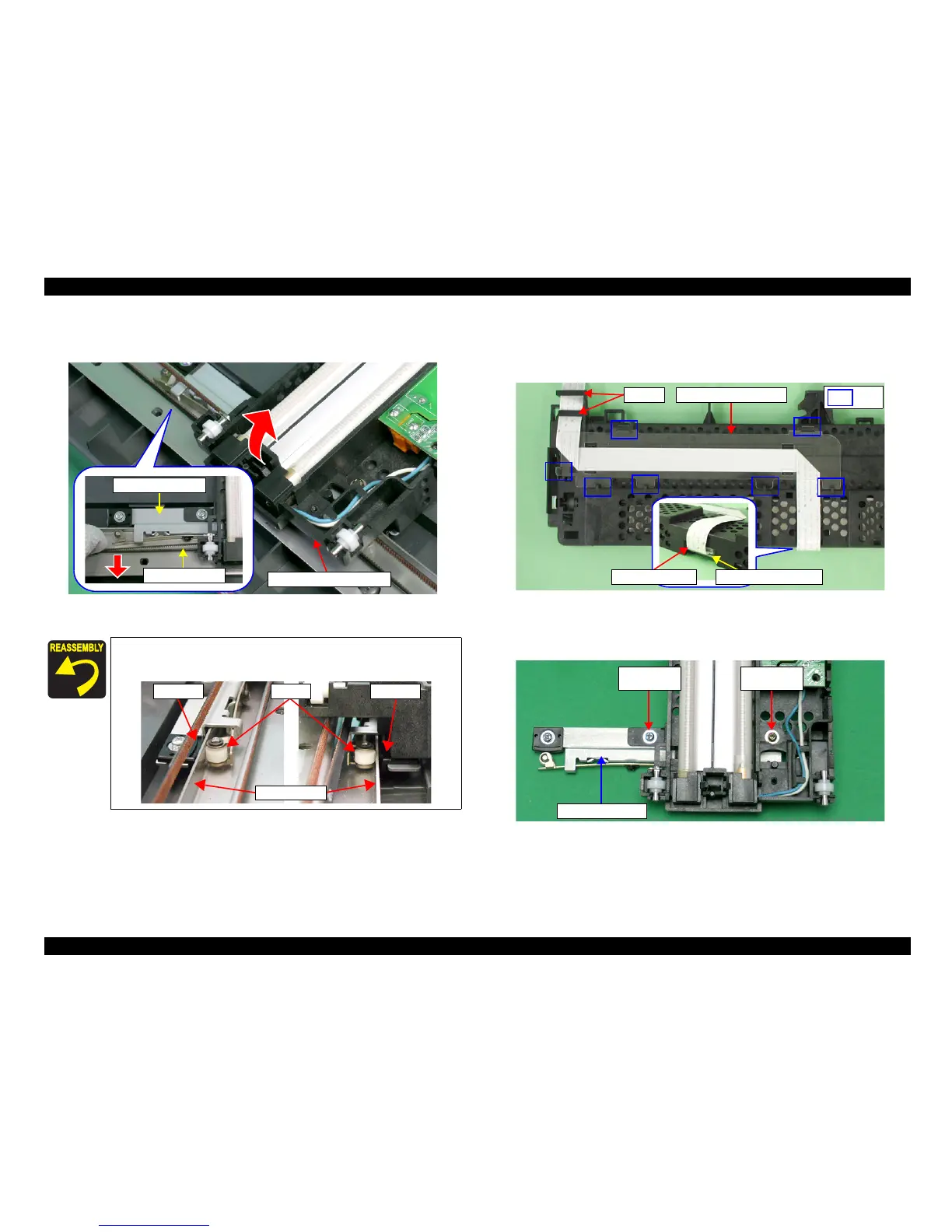

4. Remove the TPU CR Belt from the Carriage Guide, then lift the TPU Carriage Unit to
remove it.
Figure 4-50. Removal of TPU Carriage Unit
5. Remove the seven Ribs of the Cable Fixing Film and remove the Cable Fixing Film.
6. Remove the Carriage FFC from the TPU Inverter Board, and release the Carriage FFC
from the two Guides and remove it.
Figure 4-51. Removal of Carriage FFC
7. Remove the two screws (CP(S-P1), M3x6, CP(S-P2), M3x12) that are securing the
Carriage Guides and remove the Carriage Guides.
Figure 4-52. Removal of Carriage Guide
When reinstalling the TPU Carriage Unit, be sure to catch the Guide
Rail between the Rollers of Carriage Guide and the Slider.
Carriage Guide
TPU CR Belt
TPU Carriage Unit
Slider Slider
Roller
Guide Rail
Cable Fixing Film
Ribs
Carriage FFC TPU Inverter Board
Guides
Carriage Guide
M3x6
(50±10Ncm)
M3x12
(50±10Ncm)

Epson Expression 10000XL Specifications

Resolution

optical resolution	2400 dpi
maximum resolution with Micro Step Drive technology	2400 x 4800 dpi
interpolated resolution	12, 800 x 12, 800 dpi

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption operating without optional unit	45W
power consumption operating with optional unit	55W
power consumption sleep mode without optional unit	6W

Operating Environment

operating temperature	41ºF to 95ºF (5ºC to 35ºC)
operating humidity	10% to 80% (no condensation)
storage humidity	10% to 85% (no condensation)

Interface and Connectivity

interface	USB 1.1/2.0, IEEE 1394 (FireWire), optional Ethernet
system compatibility	Windows 98SE, 2000 Me, XP; Macintosh OS 9.1 or later

Weight and Dimensions

maximum scan area	12.2" x 17.2" (310mm x 437mm)
width	25.8" (656mm)
depth	18.0" (458mm)
height	6.2" (158mm)
weight	28.7 lb (13 kg approx.)
