Epson Expression 10000XL Service Manual

Expression 10000XL Revision A
DISASSEMBLY/ASSEMBLY Disassembly Procedure 45
8. Remove the Fixing Ring and Pulley of the CR Belt Tension Unit, and remove the CR
Belt.
(Refer to 4.2.4 Removal of Power Supply Board Step 5 )
9. Remove the right edge of Carriage Shaft A from the Bushing.

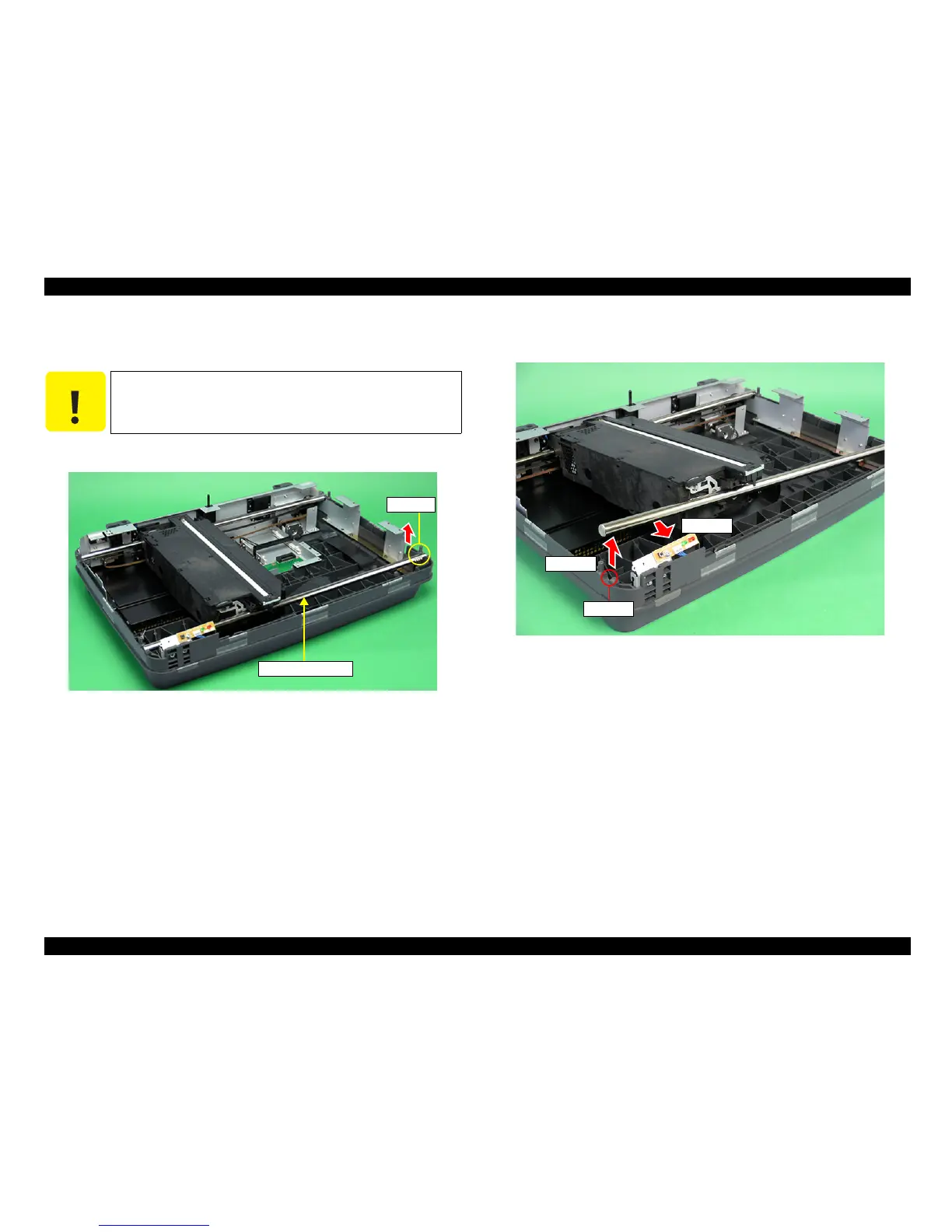

Figure 4-22. Removal of Carriage Shaft A (1)
10. While lifting the front end of the Carriage Unit, remove the left edge of the Carriage
Shaft A from the Bushing, and remove the Carriage Shaft A.
Figure 4-23. Removal of Carriage Shaft A (2)
C A U T I O N
When doing the following procedure, be fully careful not to damage
the Carriage Shaft A.
Bushing
Carriage Shaft A
Bushing
Step 10-1
Step 10-2

Epson Expression 10000XL Specifications

Resolution

optical resolution	2400 dpi
maximum resolution with Micro Step Drive technology	2400 x 4800 dpi
interpolated resolution	12, 800 x 12, 800 dpi

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption operating without optional unit	45W
power consumption operating with optional unit	55W
power consumption sleep mode without optional unit	6W

Operating Environment

operating temperature	41ºF to 95ºF (5ºC to 35ºC)
operating humidity	10% to 80% (no condensation)
storage humidity	10% to 85% (no condensation)

Interface and Connectivity

interface	USB 1.1/2.0, IEEE 1394 (FireWire), optional Ethernet
system compatibility	Windows 98SE, 2000 Me, XP; Macintosh OS 9.1 or later

Weight and Dimensions

maximum scan area	12.2" x 17.2" (310mm x 437mm)
width	25.8" (656mm)
depth	18.0" (458mm)
height	6.2" (158mm)
weight	28.7 lb (13 kg approx.)
