ADJUSTMENTS Adjustments Using the Special Software 58
5.3 Adjustments Using the Special Software
5.3.1 Necessary Tools
"
Name of special software: 1) Product Name Rewriting Software
2) Imaging attached by Windows 95/98
"
Operating Environment: Windows 95/98
"
Compatible SCSI cards: See "Table 5-2 Pre-checked SCSI Interface
Cards"
"
Supplementary tool: 1 sheet of A3-sized white cardboard or 2 sheets of
A4-sized white cardboard, 1 steel ruler
5.3.2 Overview of the Special Software
The Product Name Rewriting Software is a program which can read out the
EEPROM data stored in the scanner and rewrites the specified data onto the
EEPROM. It has following detailed functions:
"
Read out or write the product name
"
Read out the life counter (scanning times and ADF paper sheets fed)
"
Paper size detect setting
"
Confirm and adjust the Home Position

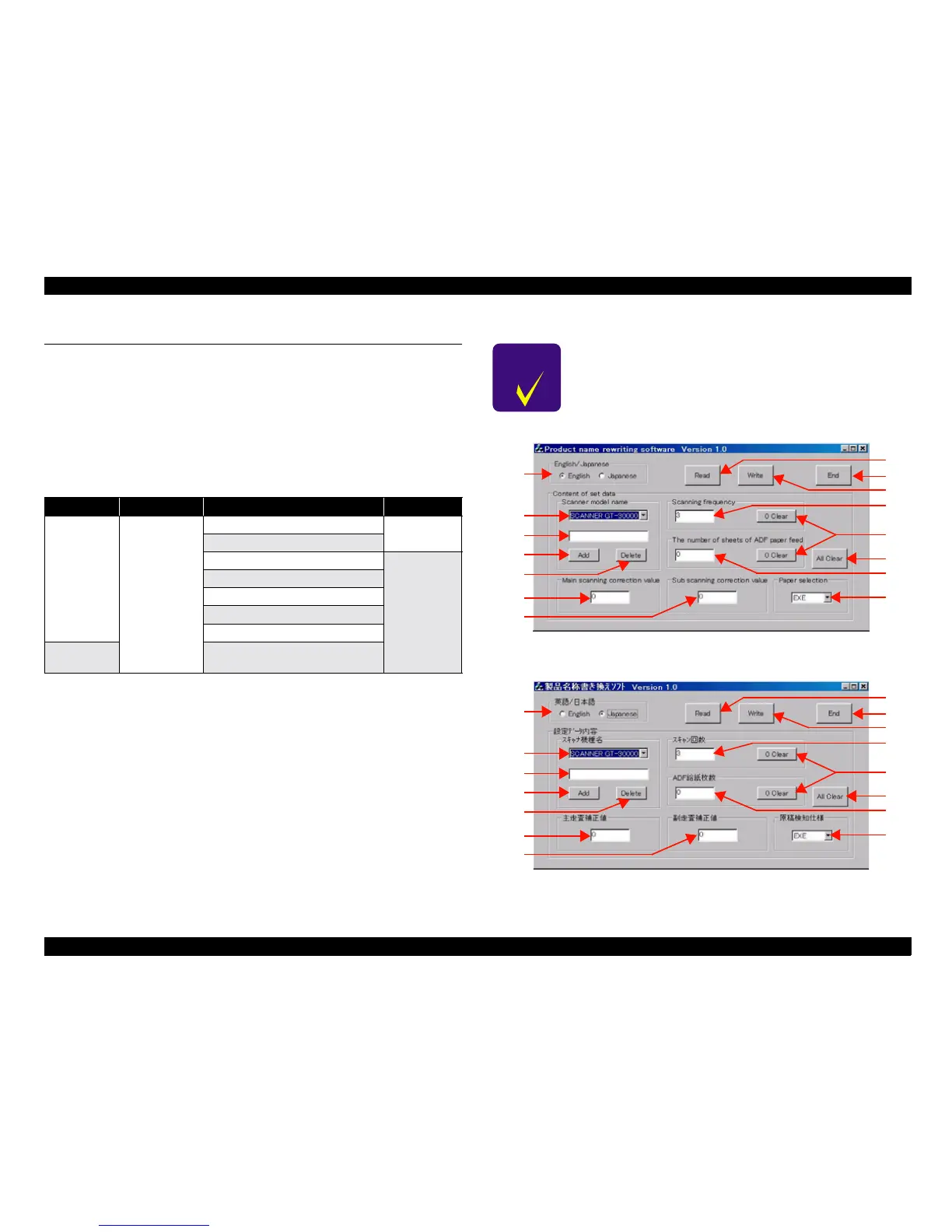

Figure 5-3. Main Dialog Box Components
Figure 5-4. Japanese Main Dialog Box Components
Table 5-2. Pre-checked SCSI Interface Cards
Host PC Manufacturer Product name (Model No.) Remarks
Desktop PC
(DOS/V)
Adaptec
SCSI Card 39160 (ASC-39160)
For wide
SCSI
SCSI Card 29160 (ASC-29160)
SCSI Card 2910C (AHA-2910C)
For normal
SCSI
SCSI Card 2930U (AHA-2930U)
SCSI Card 2940AU (AHA-2940AU)
SCSI Card 29160N (ASC-29160N)
SCSI Card 19160 (ASC-19160)
Notebook PC
(DOS/V)
Slim SCSI 1460-H (APA-1460D)
C H E C K
P O I N T
When starts the program, it may show you by
Japanese UI first. It is possible to change it to
English mode by clicking "English". See "Figure 5-3.
Main Dialog Box Components" for details.
3
6
5
1
11
12
8
14
15
2
4
9
10
13
7
3
33
3
6
66
6
5
55
5
1
11
1
11
1111
11
12
1212
12
8
88
8
14
1414
14
15
1515
15
2
22
2
4
44
4
9
99
9
10
1010
10
13
1313
13
7
77
7

Epson GT-30000 Specifications

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption operating without ADF	65W
power consumption operating with ADF	90W
power consumption standby without optional unit	12W

Operating Environment

temperature operating	41ºF to 95ºF (5ºC to 35ºC)
humidity operating	10% to 80% (no condensation)
humidity storage	10% to 85% (no condensation)

Scanning Specifications

optical resolution	600 x 1200 dpi with Micro Step Drive™ technology
maximum resolution	9600 x 9600 dpi with interpolation
effective pixels	7020 x 10200 pixels (600 dpi)
color depth internal	36 bits per pixel
color depth external	24 bits per pixel (selectable)
grayscale depth internal/external	12 bits per pixel
grayscale depth external	8 bits per pixel
scanning speed at 1600 dpi, draft mode, color	0.79 msec/line (approx.)
scanning speed at 1600 dpi, draft mode, grayscale	0.39 msec/line (approx.)
scanning speed at 1600 dpi, draft mode, art	0.39 msec/line (approx.)

Weight and Dimensions

maximum read area	11.7" x 17.0" (297mm x 432mm)
width	25.9" (658mm)
depth	19.2" (488mm)
height	10.0" (254mm)
weight	66 lb (37.5 kg approx.)
