DISASSEMBLY & ASSEMBLY Disassembly Procedures 48

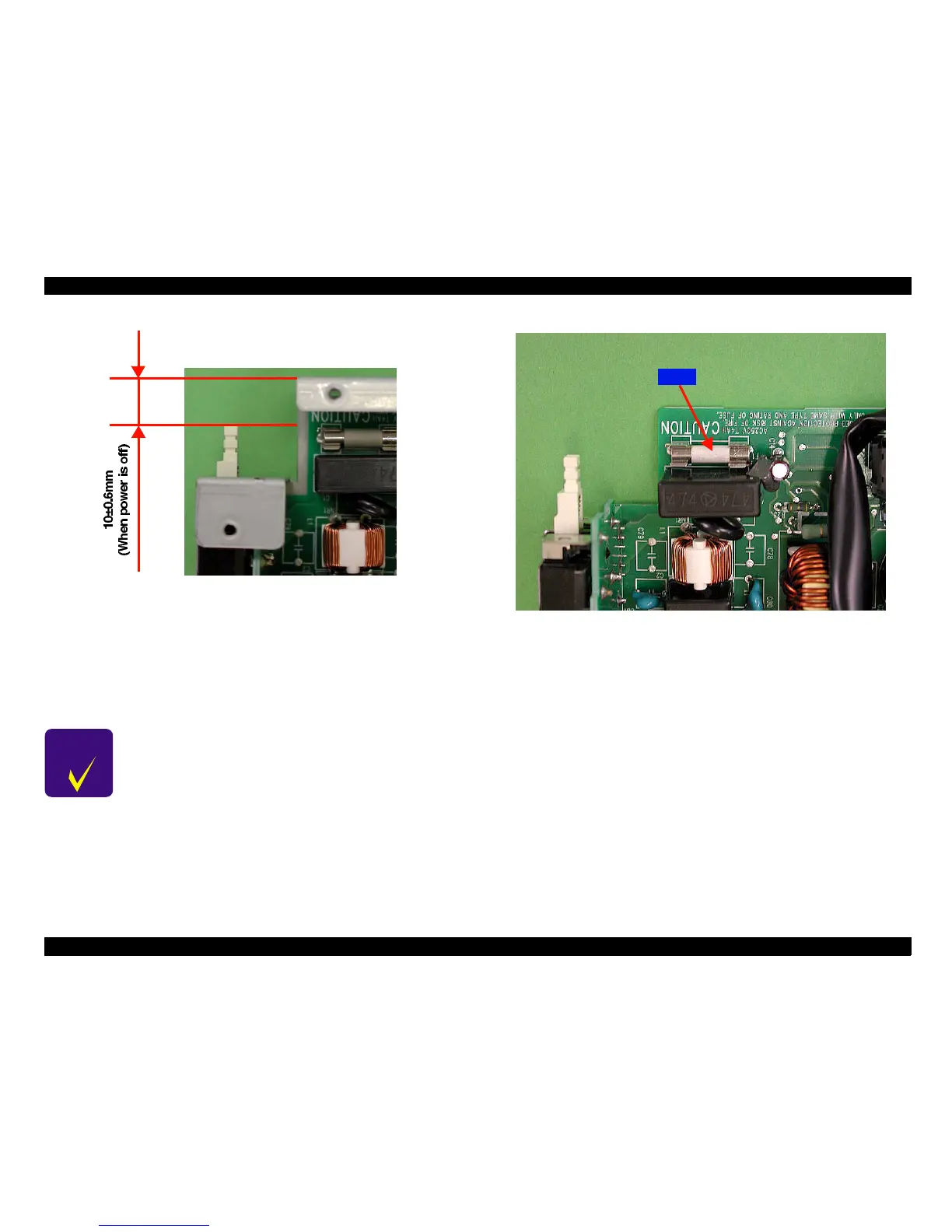

Figure 4-13. Power Switch Height
4.2.2.4 Fuse Removal
1. Remove the power supply assembly. (See "Chapter 4.2.2.3 Power Supply
Circuit Board Removal".)
2. Remove the fuse. (See "Figure 4-14. Fuse Removal".)
Figure 4-14. Fuse Removal
C H E C K
P O I N T
!
Be careful to avoid static electric discharges when
removing the fuse, in order to protect the circuits.
!
When installing and removing the fuse, use tweezers
to avoid damaging other components.
Fuse
