Epson LX-300+ Service Manual

LX-300+/1170 Revision C
PRODUCT DESCRIPTION
S
PECIFICATIONS 20
o
Roll paper

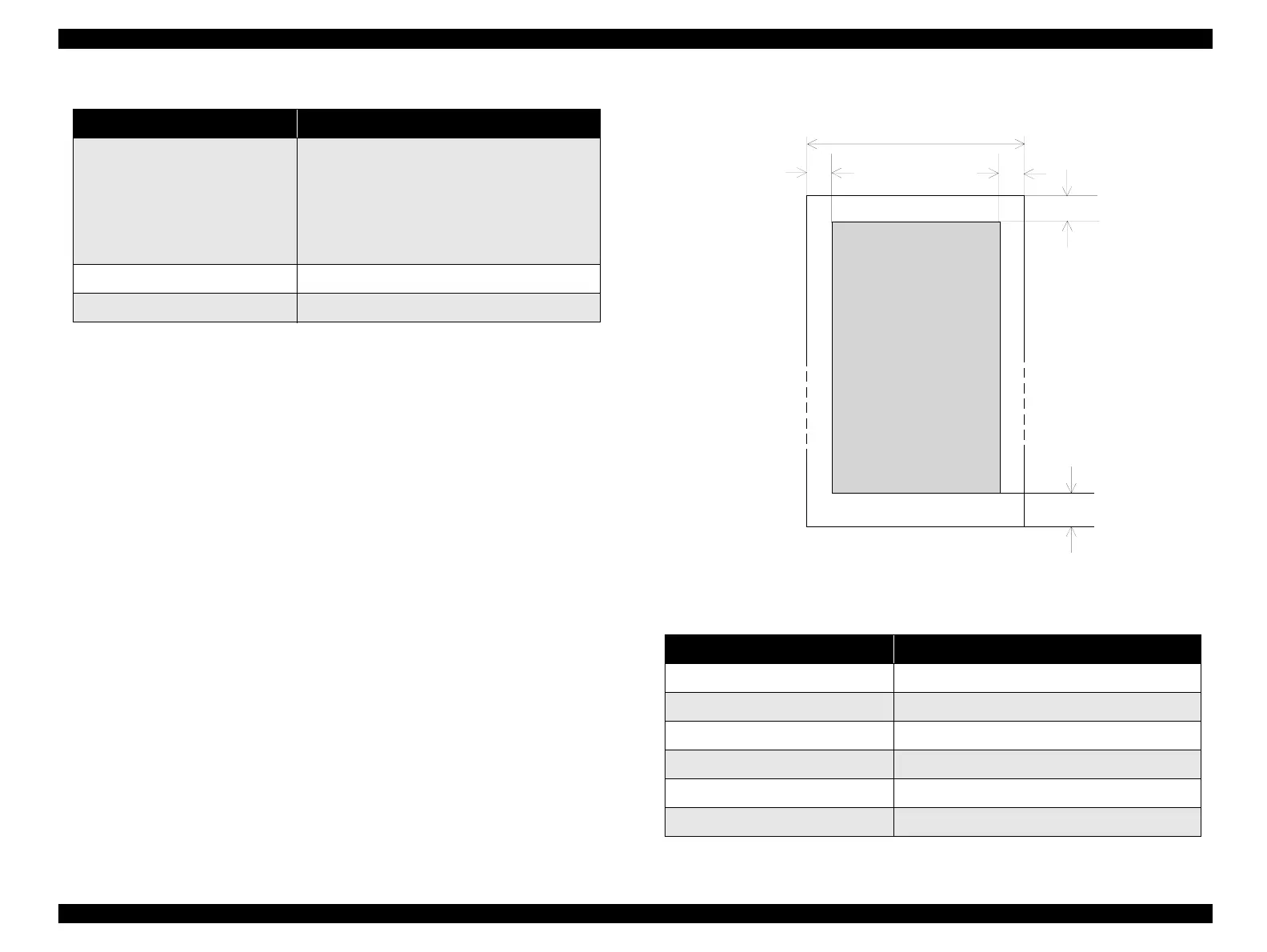

Figure 1-5. Printable Area for Roll Paper
RM (Right Margin) LX-300+:
13 mm or more (PW<=254 mm)
24mm or more(PW=254 mm)
LX-1170:
13 mm or more (PW<=377.8mm)
18 mm or more(PW=406.4 mm)
TM (Top Margin) 4.2 mm or more
BM (Bottom Margin) 4.2 mm or more
NOTE: The maximum horizontal printable area is 203.2mm for LX-300+/
345.44 for LX-1170.
Table 1-8. Printable Area for Continuous Paper
Continuous Paper
Table 1-9. Printable Area for Roll Paper
Continuous Paper
PW (Width) Refer to 1.7 "Paper Specifications"
PL (Length) Refer to 1.7 "Paper Specifications"
LM (Left Margin) 3 mm or more
RM (Right Margin) 3mmormore
TM (Top Margin) 4.2 mm or more
BM (Bottom Margin) 4.2 mm or more
NOTE: The maximum horizontal printable area is 203.2mm.
P r i n t a b l e A r e a
B M
T M
B M
L M
P W

Epson LX-300+ Specifications

General

Emulation	Epson ESC/P, IBM PPDS
Print Method	9-pin, impact dot matrix
Interface	Parallel
Paper Handling	Friction feed
Dimensions	366 x 275 x 159 mm
Paper Width	4 - 10 inches
