Epson LX-300+ Service Manual

LX-300+/1170 Revision C
Adjustment
O
verview 91

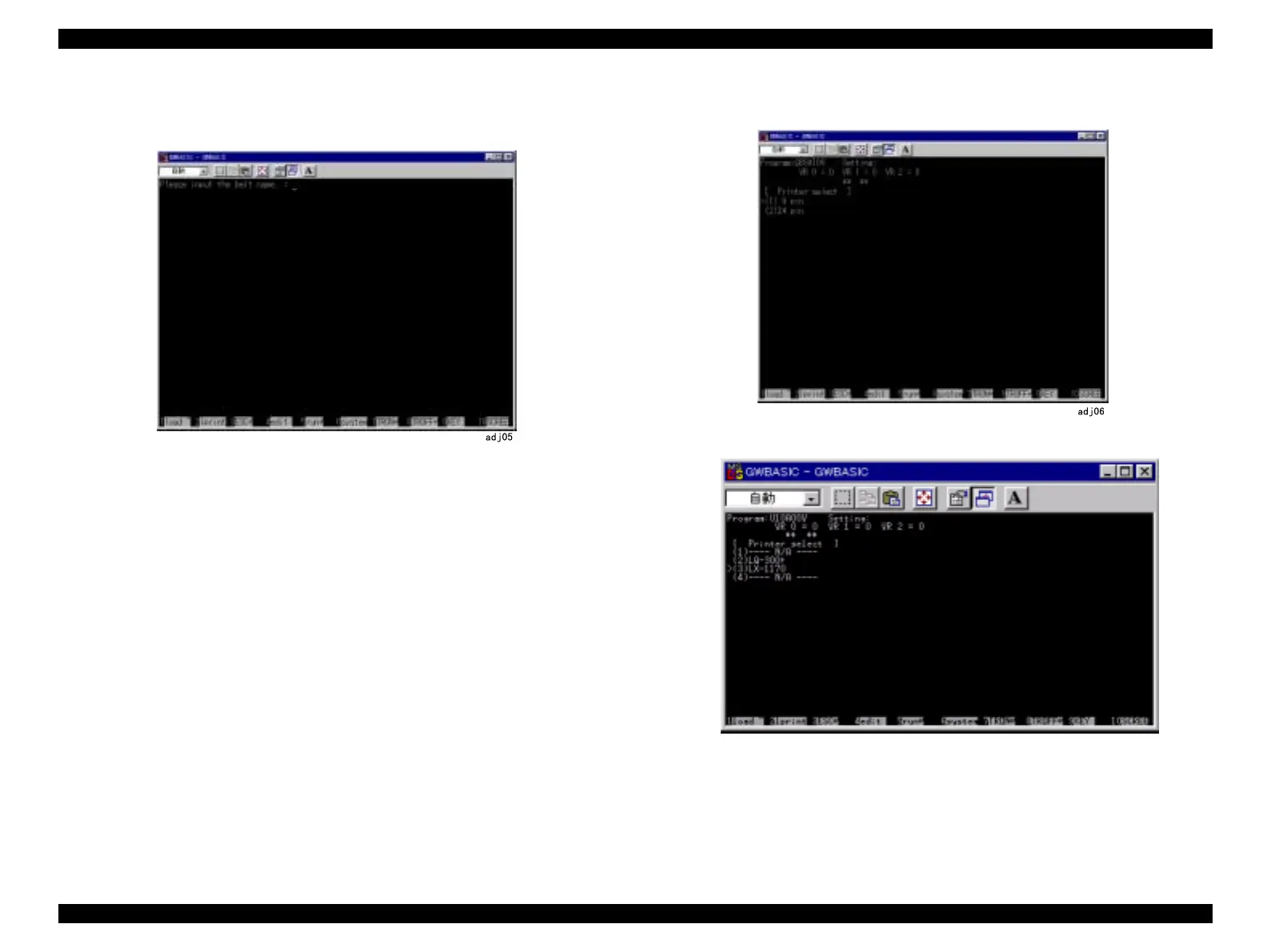

7. The program will ask you the production line No. Ignore it and press ENTER.
LX-300+: After pressing ENTER, input “1”(model number) to select LX-300+.
LX-1170: After pressing ENTER, go to step 8.
8. LX-300+: Printer 9/24 pin select screen appears. Use ↑ and ↓ keytoshift“>”markto
the left of “(1) 9 pin” and press ENTER to select 9 pin printer.
LX-1170: Select “LX-1170” and press ENTER.

Epson LX-300+ Specifications

General

Emulation	Epson ESC/P, IBM PPDS
Print Method	9-pin, impact dot matrix
Interface	Parallel
Paper Handling	Friction feed
Dimensions	366 x 275 x 159 mm
Paper Width	4 - 10 inches
