Maintenan
ce

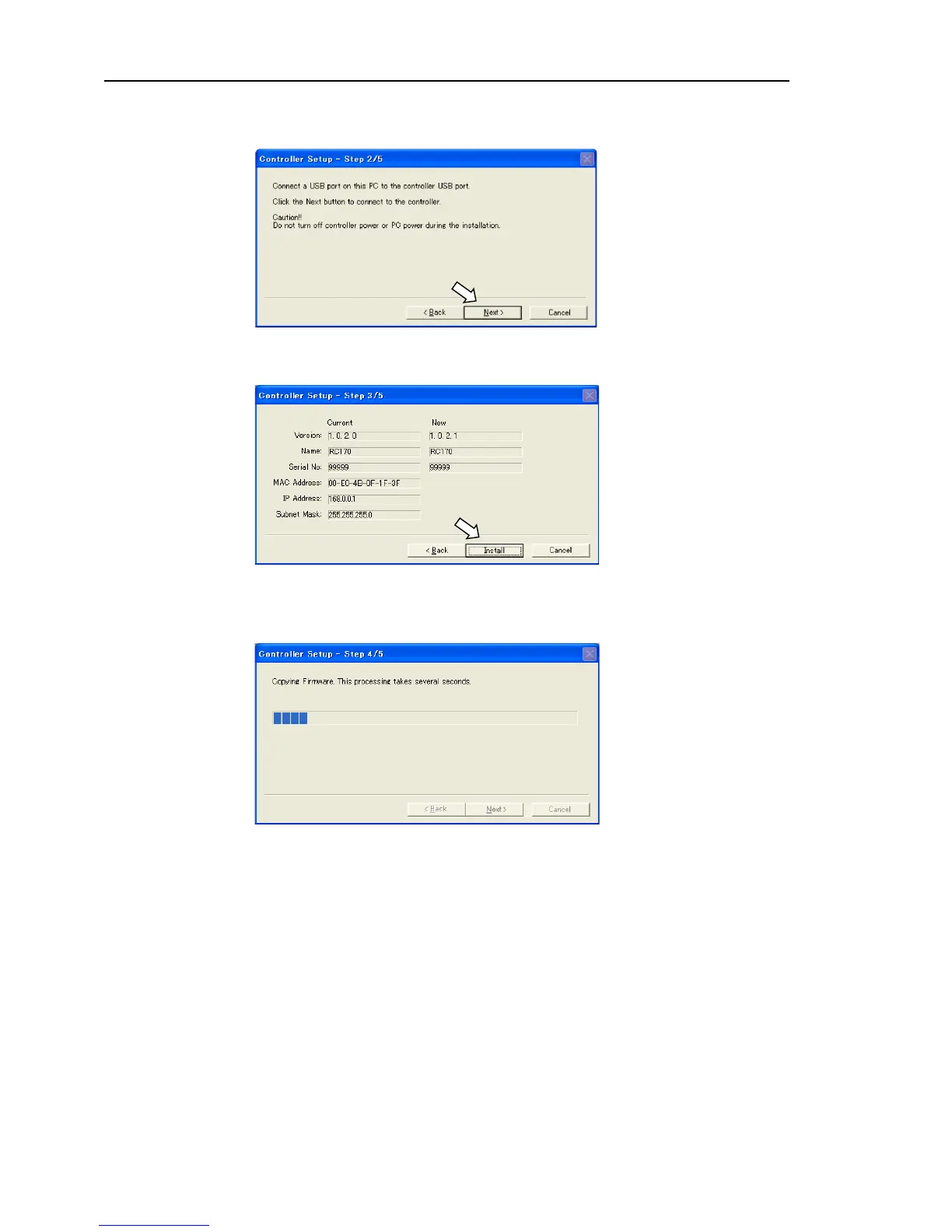

5. Firmware Update
(6)
Make sure
that
the developm
ent PC
is connected to
the Control
ler
with a
USB cable
and Click the
<Next> butt
on.
(7)
Check the current
firmwa
re version and the
new
firmware version
and
click the
<Install> bu
tton.
(8)
The f
irmware
upgrade
starts.
It takes several
minutes to complete
.
Do not unplug
the USB ca
ble during t
ransfer or t
urn OFF
the Controll
er or the
developm
ent PC.
NOTE
92
RC90
(EPS
ON RC
+ 7.
0)
R
ev.
4
