Epson RC90 User Manual

Maintenance 7. Maintenance Parts Replacement Procedures
7.4 CF (Compact Flash)
CF Removal
(1)
Turn OFF the Controller and unplug the power connector.
(2)
Remove
the Top Panel. (Mounting screws ×10)
(3)
Remove the CF mounting screw (
×1).
(
4)

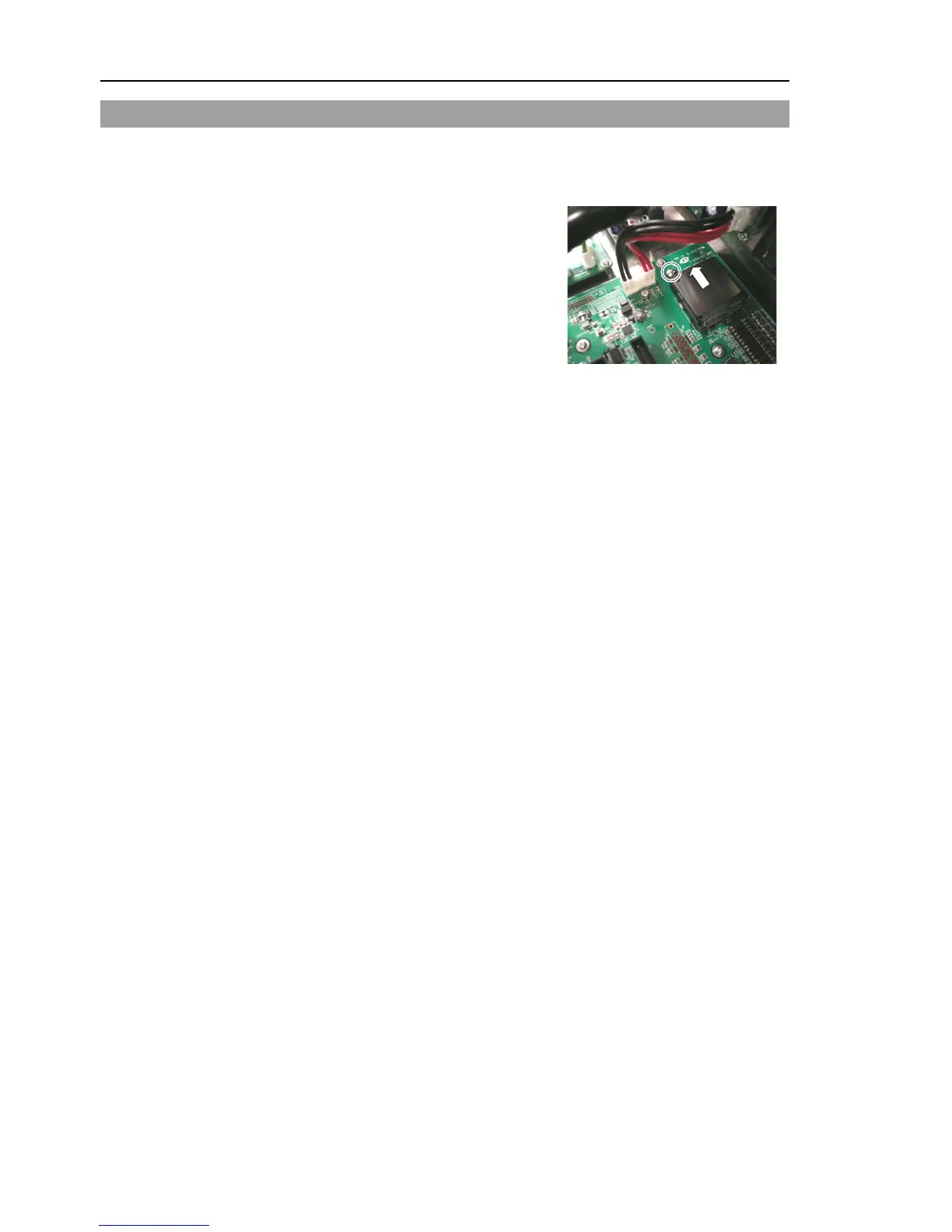

Pull the CF toward the direction of the arrow in
the picture.
CF Installation
(1)
Insert a new CF toward the opposite direction of the arrow
in the picture above.
(2)
Tighten
the CF mounting screw (×1).
(3)
Mount the Top Panel. (Mounting screws
×10)
(4)
Plug in
the power connector. Turn ON the Controller and make sure that the
Controller starts properly without any vibration or abnormal noise.
104 RC90 (EPSON RC+ 7.0) Rev.4
