Maintenance 7. Maintenance Parts Replacement Procedures
MDB
Installation

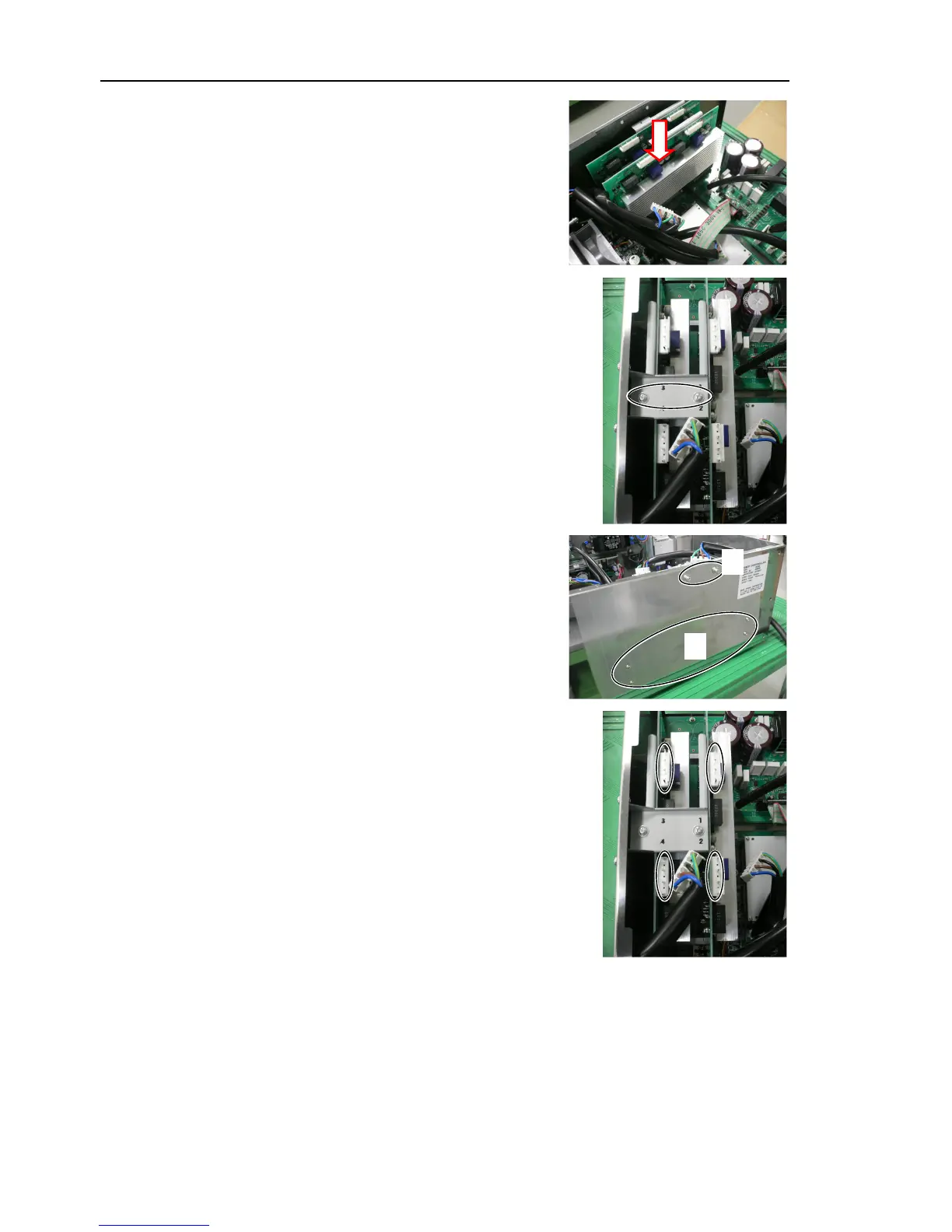

(1)
Insert the
MDB in the direction shown in
the
picture.
(2)
Mount the
MDB clamp.
(Mounting screw
×2)
(3)
Tighten
the screws on the chassis side surface
(
×2).
(5)
(3)
(4)
Mount the
MDB clamp for the upright
mounting.
(5)
Tighten
the screws on the chassis side surface
(
×4).
(6)
Mount the output cable of each axis of
the MDB.
When mounting the output cables, make sure that
the number on the
MDB
clamp and the connector
are the same.
(7)
Mount the Top Panel. (Mounting screws
×10)
(8)
Plug in
the power connector. Turn ON the Controller and make sure that
the
Controller starts properly without any vibration or abnormal noise.

NOTE
106 RC90 (EPSON RC+ 7.0) Rev.4
