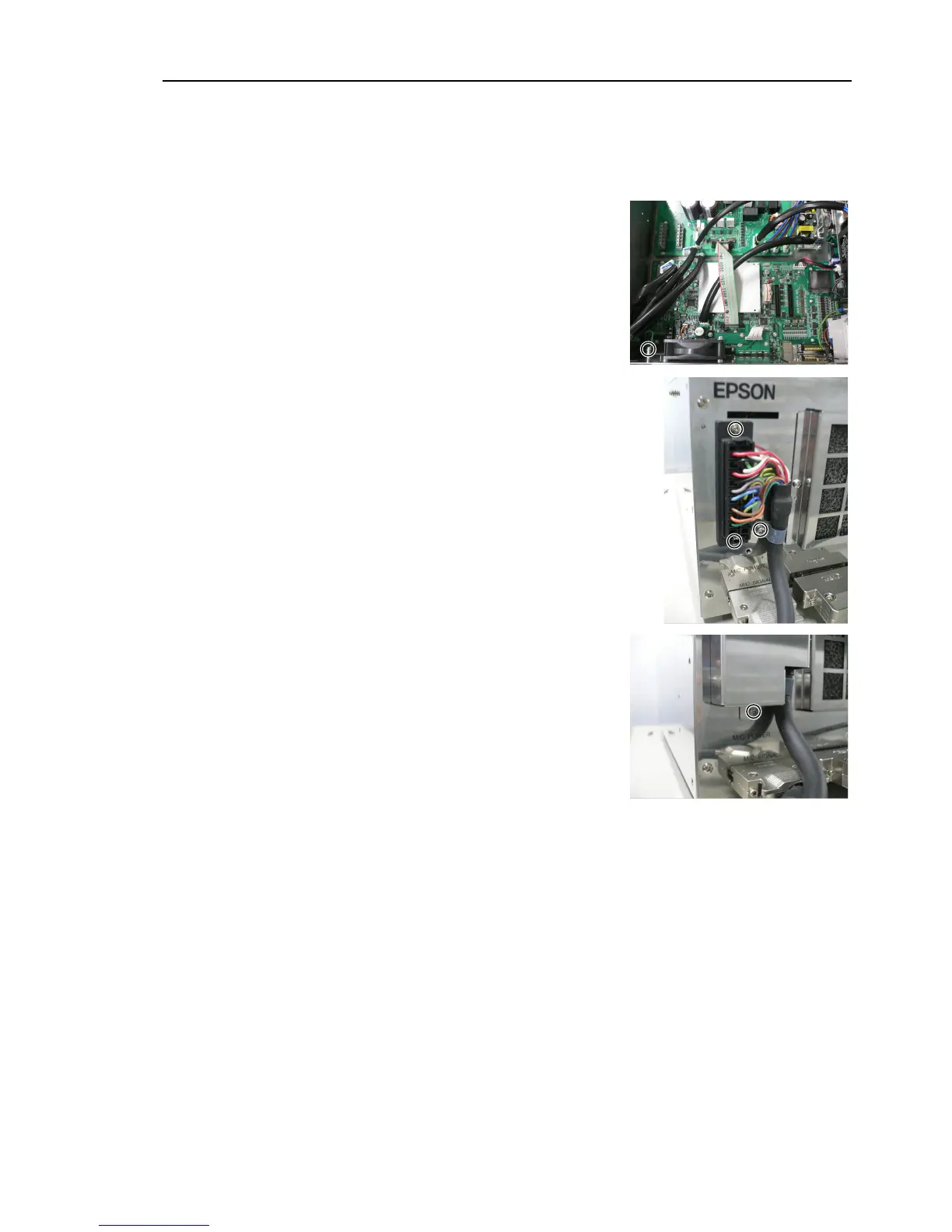

Maintenance 7. Maintenance Parts Replacement Procedures
DMB
Installation
(1)
Insert the
DMB into the chassis.
At this point, be careful not to touch the chassis and other parts.
(2)
Pull in the
M/C Power Cable from the chassis front side.
(3)
Set the FG line of the
M/C Power Cable.
(4)
Tighten
the screw of the clamp for the M/C Power
Cable (
×
1) and screws of the M/C Power
Connector (
×2).
(5)
Remove
the cover for the M/C Power Connector.
(6)
Mount the fan.
Refer to
Maintenance: 7.2 Fan.
(7)
Tighten
the DMB mounting screw (×14).
(8)
Connect
the connectors (×4).
(9)
Mount the
MDB.
Refer to
Maintenance: 7.5 MDB
RC90 (EPSON RC+ 7.0) Rev.4 109
