Shutter Adjustment
1
Turn the printer OFF.
2
Press down the release lever, and pull it to the front to open the roll
paper cover.
3

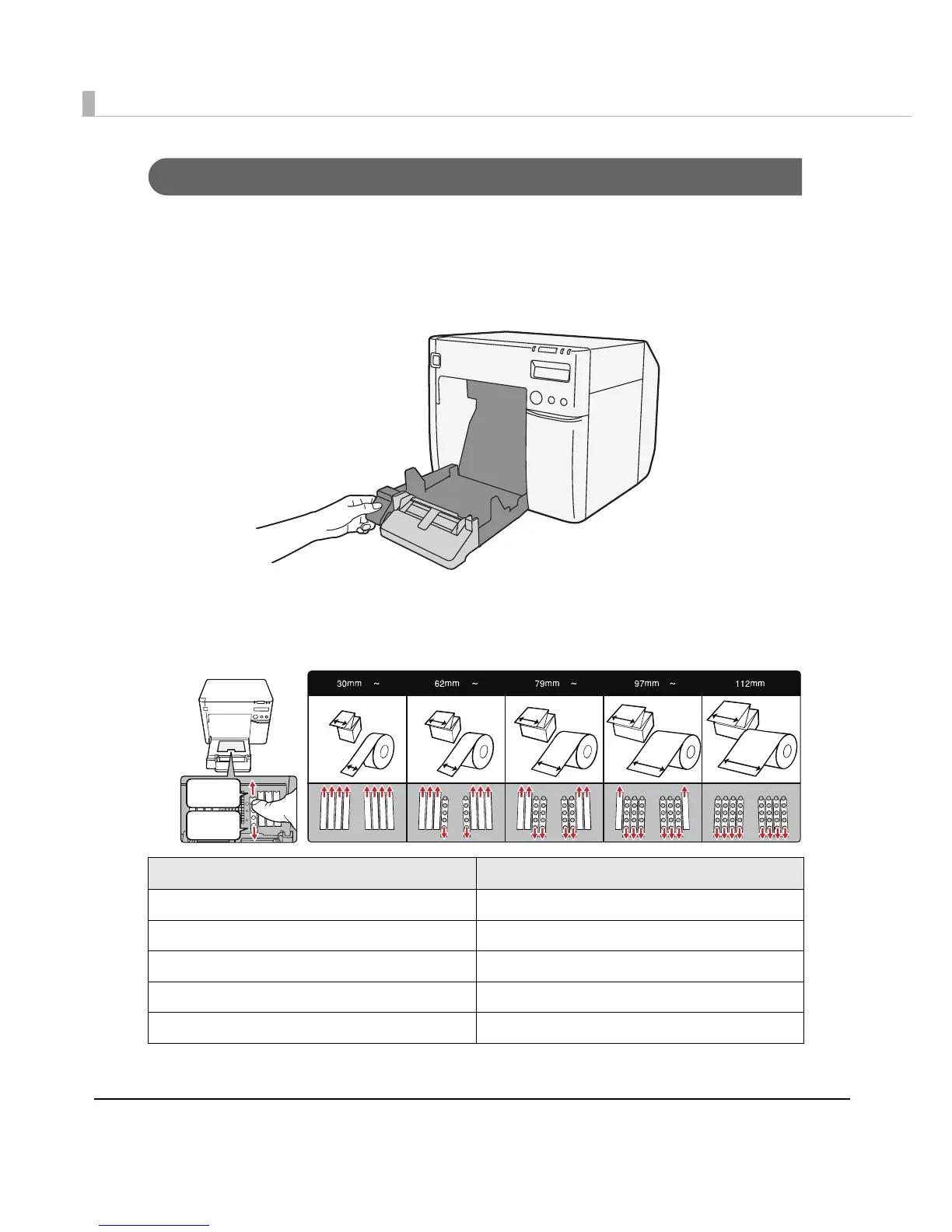

Refer to the shutter adjustment method label on the top of the printer,
and open or close the shutters on the platen to match the width of the
paper. If the shutter is set incorrectly, paper may be jammed or get dirty.
Paper/backing width (mm) Shutter open/close status
30 mm {1.18"} or more, less than 62 mm {2.44"} Close all shutters.
62 mm {2.44"} or more, less than 79 mm {3.11"} Open only the most inward shutters.
79 mm {3.11"} or more, less than 97 mm {3.82"} Open only the 2 most inward shutter rows.
97 mm {3.82"} or more, less than 112 mm {4.41"} Open only the 3 most inward shutter rows.
112 mm {4.41"} Open all shutters.
