Epson TM-U200 Series Technical Manual

Rev. A Disassembly, Assembly, and Adjustment 5-45
TM-U200 Series (Type A/AM) Technical Manual
Confidential

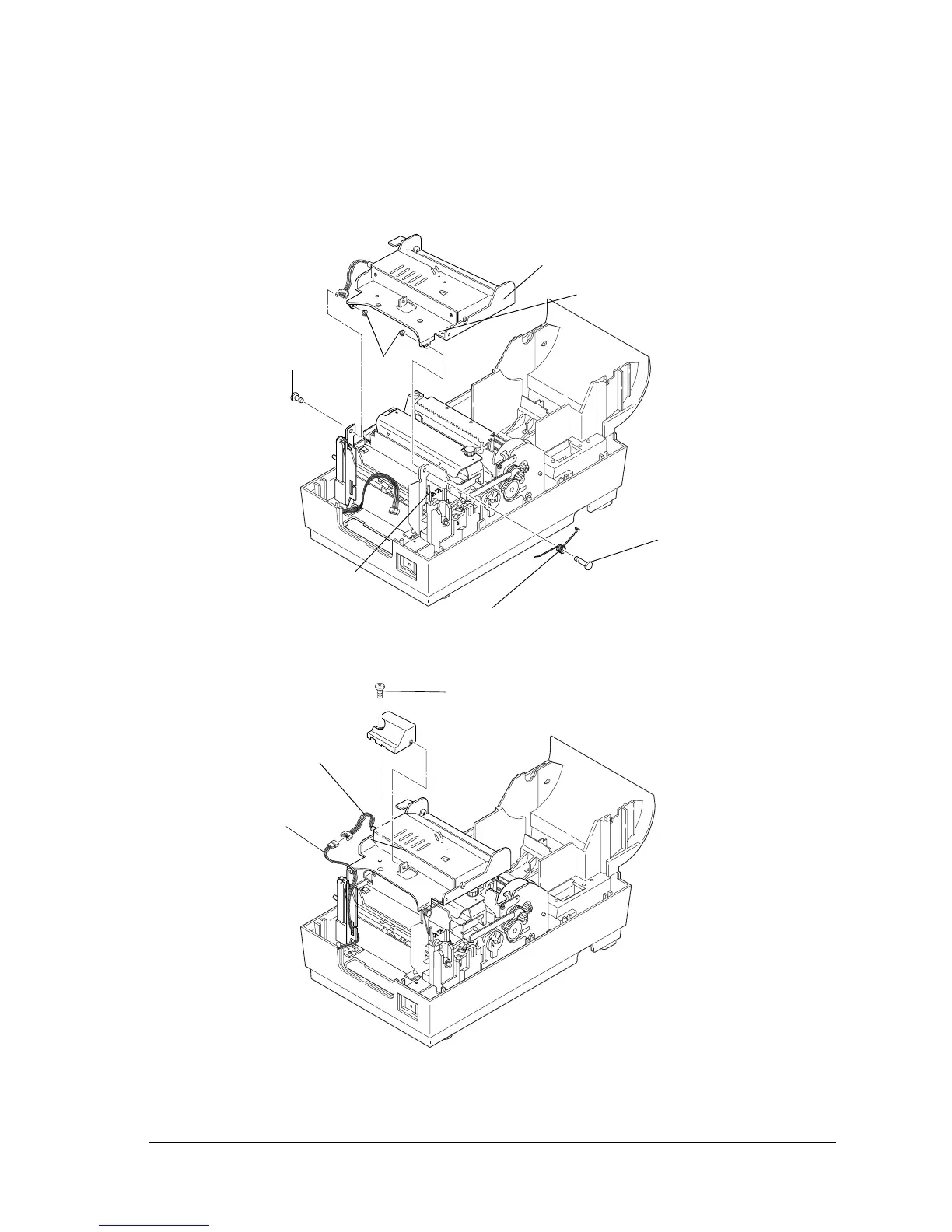

auto-cutter plate spring shaft and auto-cutter plate shaft in the holes of the auto-cutter fixing
plate and secure them with the RE (3). Attach the other side of the spring into the hook of the
auto-cutter fixing plate.
11. Connect the auto-cutter cable to the cable connector for the auto-cutter.
Auto-cutter plate spring
Hole for spring
Auto-cutter plate
Auto-cutter plate shaft
RE (3)
Auto-cutter plate assembly
auto-cutter
fixing plate
Hook of
spring shaft
Auto-cutter cable
Cable connector
of the auto-cutter
CBS-tite (M3x5)
(0.59 to 0.78 N • m (6 to 8 kgf • cm)]
