Epson WF-C8690 User Manual

145
Parent topic: Selecting Additional Layout and Print Options - Windows
Selecting a Printing Preset - Windows
For quick access to common groups of print settings, you can select a printing preset on the Main or
More Options tab.
Note: You can create your own preset by clicking the Add/Remove Presets button.
1. Click the Main or More Options tab.

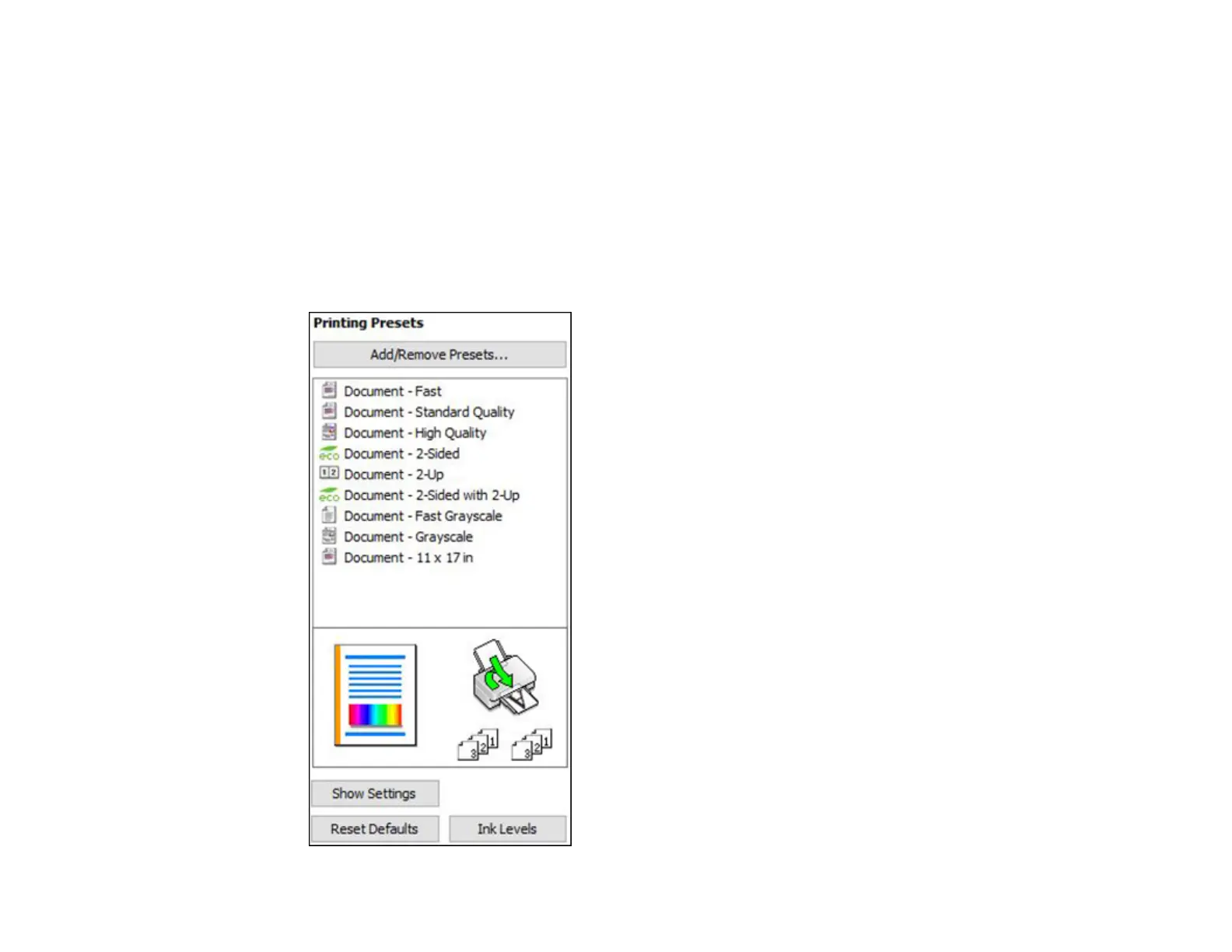

You see the available Printing Presets on the left:

Epson WF-C8690 Specifications

General

Print Resolution	4800 x 1200 dpi
Max Print Size	13" x 19"
Print Speed	24 ppm (black), 24 ppm (color)
Automatic Duplex Printing	Yes
Scanner Type	Color Flatbed / ADF
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Fax Speed	33.6 kbps
Mobile Printing	Epson Connect, Apple AirPrint, Google Cloud Print, Mopria
Display	4.3" color touchscreen
Ink Colors	Cyan, Magenta, Yellow, Black
Print Technology	PrecisionCore
Monthly Duty Cycle	75, 000 pages
Connectivity	USB, Ethernet, Wi-Fi
Paper Capacity	330 sheets standard / 1, 830 sheets maximum
