Epson WF-C8690 User Manual

342

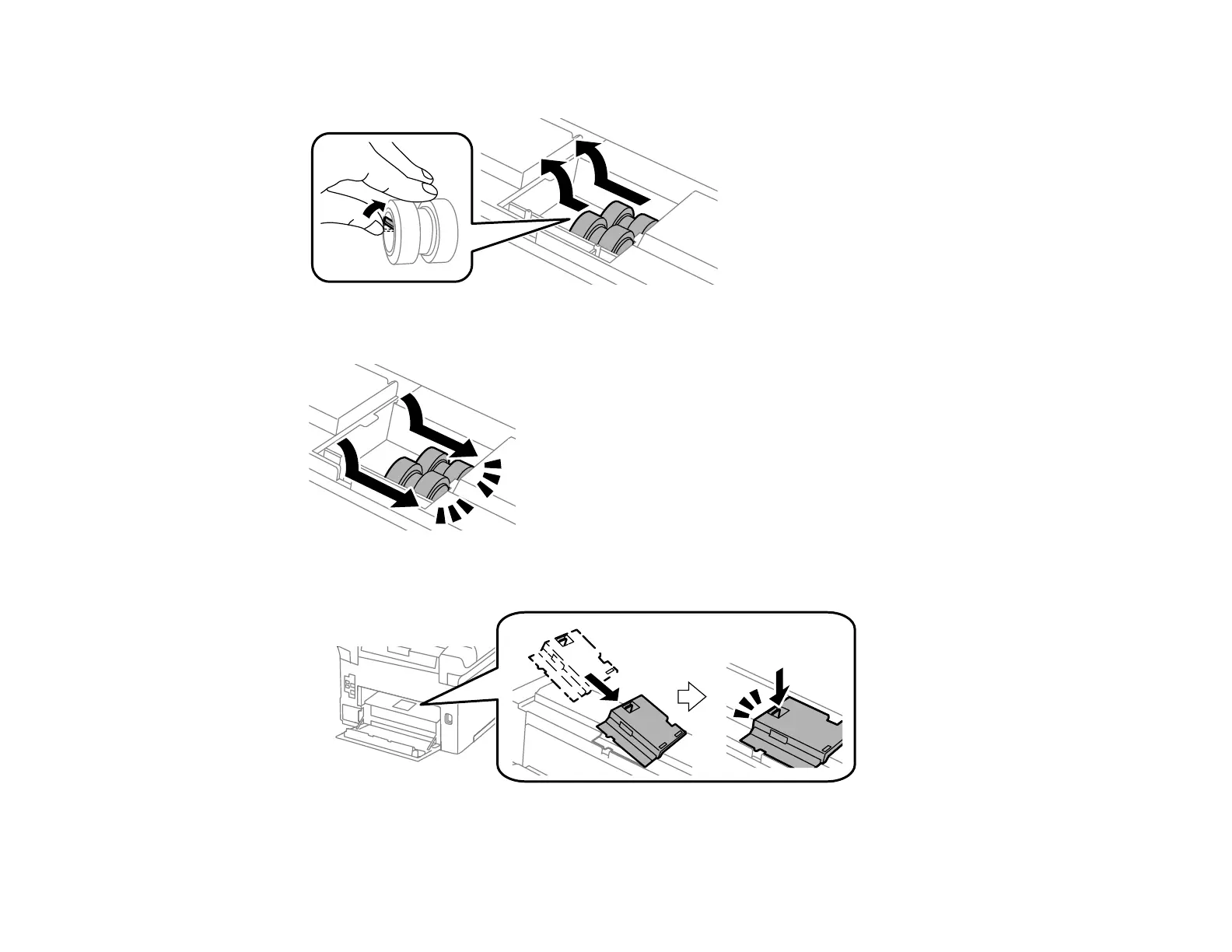

8. Pull up the roller tabs and slide the rollers to the left to remove them.
9. Insert the replacement rollers and slide them to the right until they click into place.
10. Replace the roller cover as shown and press it down until it clicks into place.
11. Insert rear cover 2 (D2).

Epson WF-C8690 Specifications

General

Print Resolution	4800 x 1200 dpi
Max Print Size	13" x 19"
Print Speed	24 ppm (black), 24 ppm (color)
Automatic Duplex Printing	Yes
Scanner Type	Color Flatbed / ADF
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Fax Speed	33.6 kbps
Mobile Printing	Epson Connect, Apple AirPrint, Google Cloud Print, Mopria
Display	4.3" color touchscreen
Ink Colors	Cyan, Magenta, Yellow, Black
Print Technology	PrecisionCore
Monthly Duty Cycle	75, 000 pages
Connectivity	USB, Ethernet, Wi-Fi
Paper Capacity	330 sheets standard / 1, 830 sheets maximum
