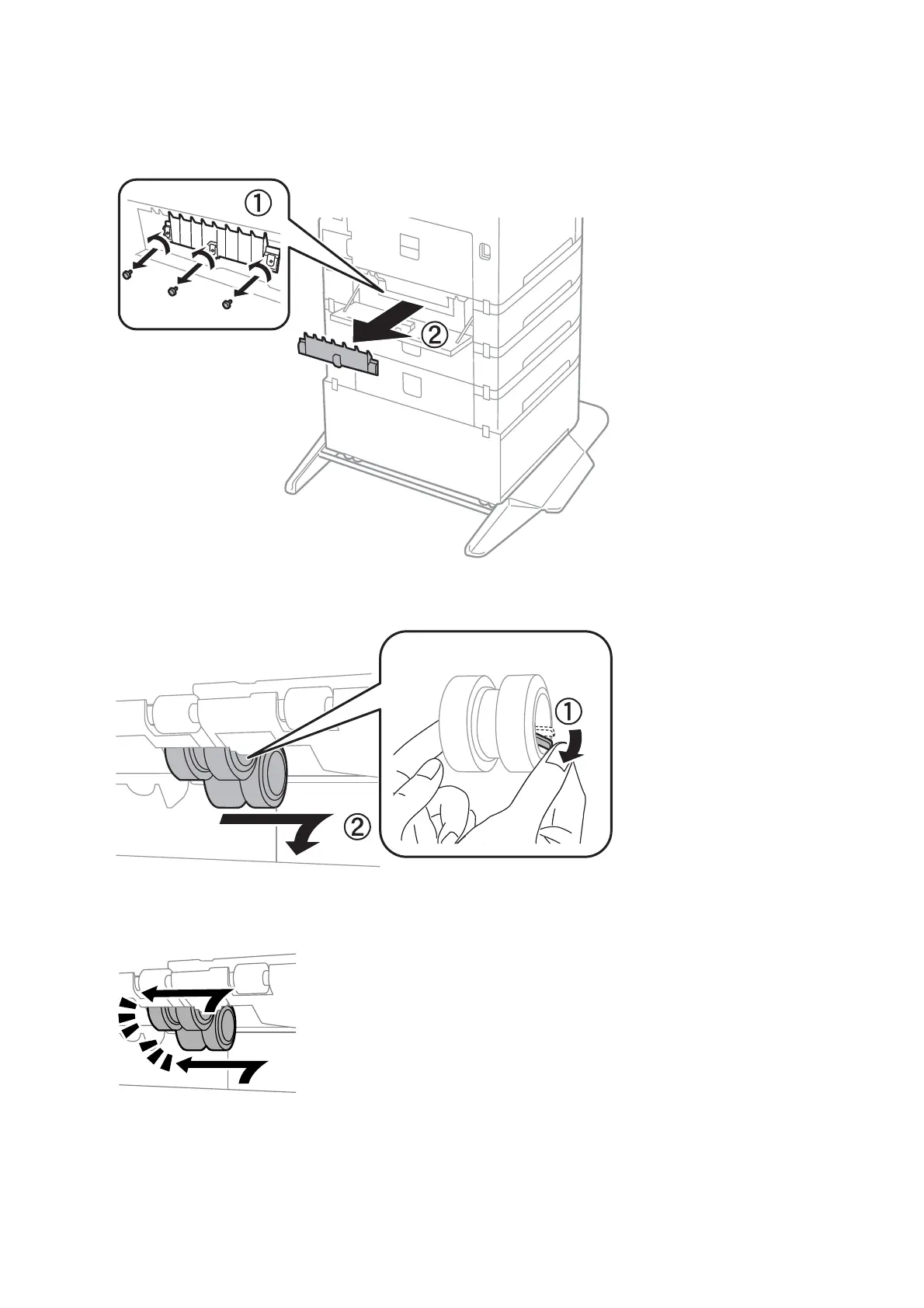

5. Remove the screws by a screwdriver and remove the cover on the rear of inside the printer.

6. Slide out two used maintenance rollers, and remove both of them.

7. Insert two new maintenance rollers until they click into place.

Note:

Insert the maintenance rollers by rolling them so that you can insert them smoothly.

User's Guide

Replacing Ink Cartridges and Other Consumables

166
