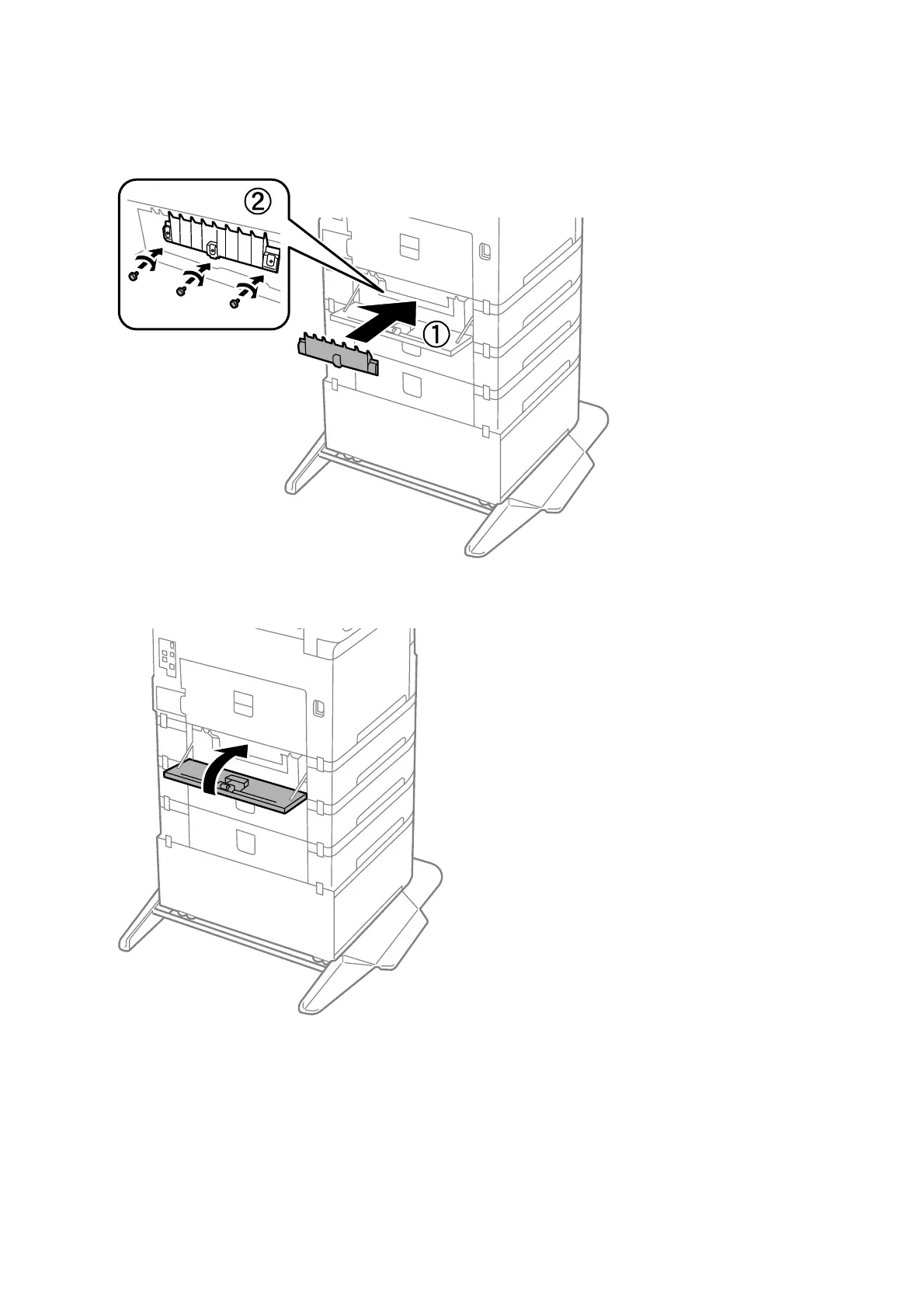

8. Tighten the screws to re-attach the cover.

9. Close the cassette unit cover.

User's Guide

Replacing Ink Cartridges and Other Consumables

167
