Epson XP-710 Series - Product Parts

Product Parts
Note:
The illustrations in this manual are from a similar product model. Although they may differ from your actual product, the
method of operation is the same.

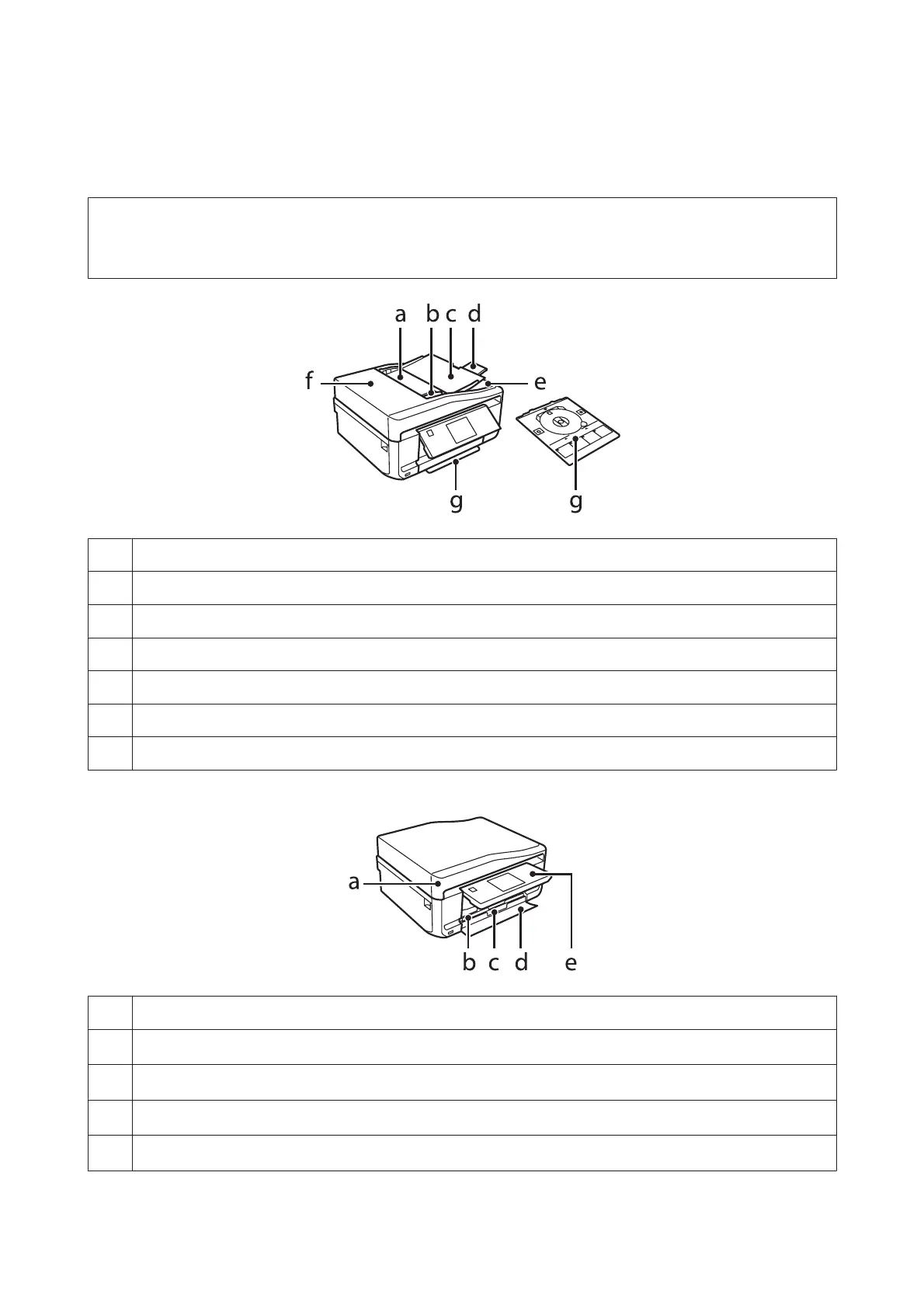

a. Automatic Document Feeder (ADF)*
b. Edge guide*
c. ADF input tray (place your originals here to be copied)*
d. ADF output tray extension (slide out the extension when using the ADF)*
e. ADF output tray (your originals are ejected here as they are copied)*
f. ADF cover*
g. CD/DVD tray
* This part is only available for the XP-810 Series.
a. Document cover
b.
Paper cassette 1 (upper cassette)*
1
c.
Paper cassette 2 (lower cassette)*
1
d.
Front cover*
1
e.
Control panel*
2
*1 See the following illustration for details.
*2 The control panel raises automatically when printing starts. Lower it manually if necessary. (XP-710 Series/XP-810 Series)
