B
Ink cartridge holder Install the ink cartridges. Ink is ejected from the print head nozzles
underneath.
C
Scanner unit Scans placed originals. Open to replace the ink cartridges or to remove
jammed paper. This unit should usually be kept closed.
D
Control panel Indicates the printer's status and allows you to make print settings.
E
CD/DVD tray slot Insert the CD/DVD tray with a CD/DVD placed on it for label printing into this
slot.
F
Maintenance box cover Remove when replacing the maintenance box. The maintenance box is a
container that collects a very small amount of surplus ink during cleaning or
printing.

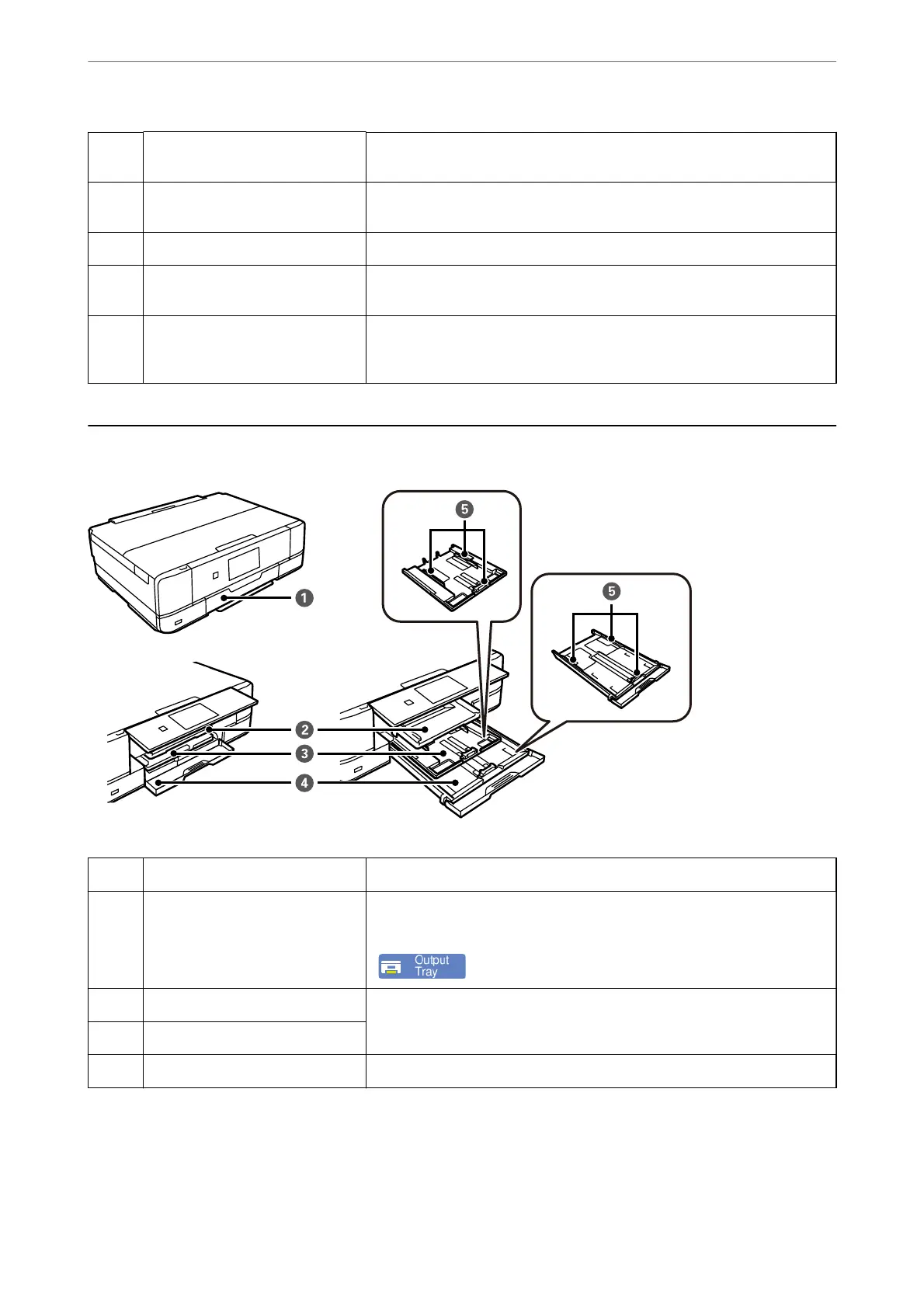

Front 3
A
Front cover Open to load paper in the paper cassette.
B
Output tray Holds the ejected paper. When you start printing, this tray is ejected
automatically. If you tap Ye s on the screen displayed when the printer is
turned o, it is stored automatically. To store the tray manually,tap
on the home screen.
C
Paper cassette 1 Loads paper.
D
Paper cassette 2
E
Edge guide Feeds the paper straight into the printer. Slide to the edges of the paper.
Part Names and Functions
>
Front 3
