VEHICLE OPERATION

3-2

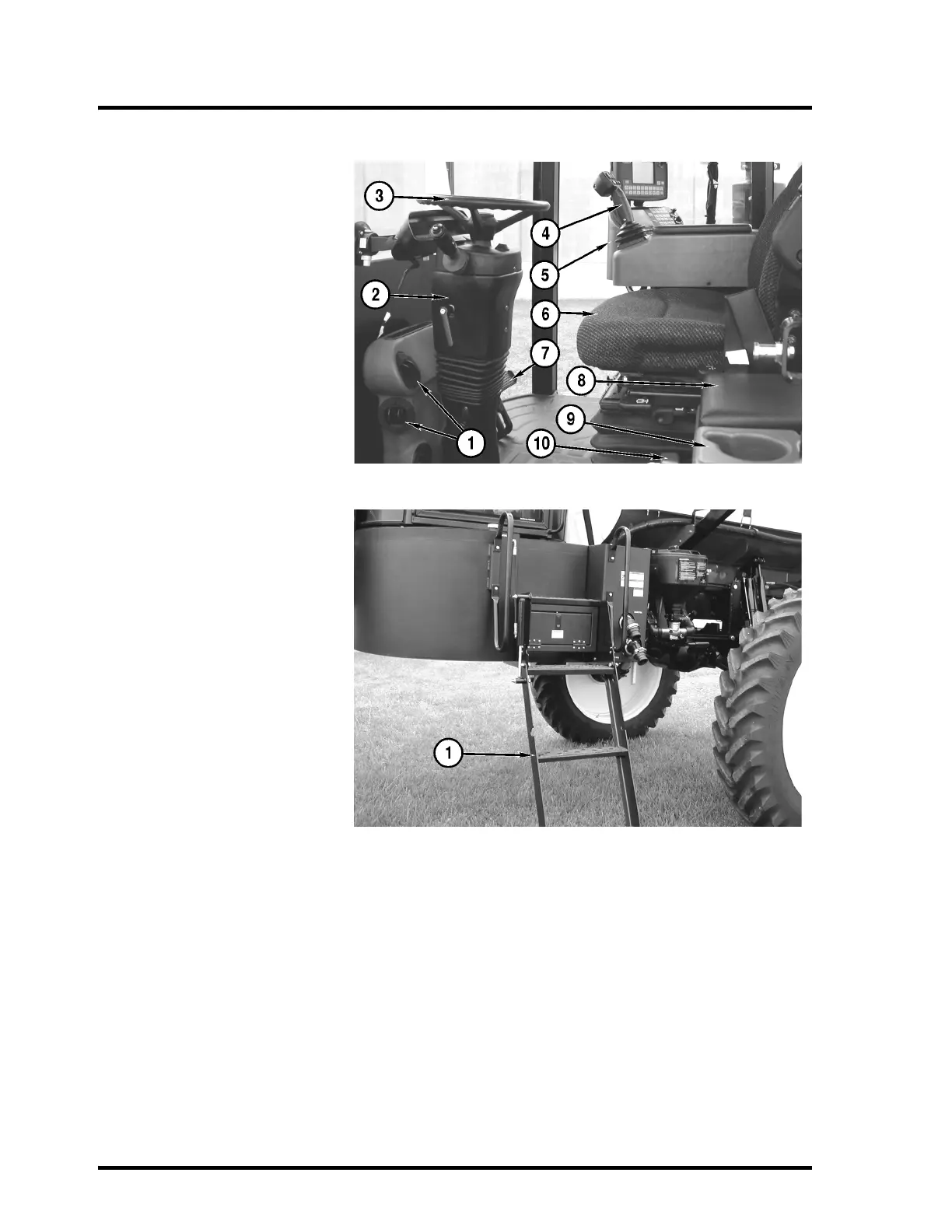

Cab Overview

1. Air vents

2. Steering Column

3. Steering Wheel

4. T-Handle

5. Side Console

6. Air Seat

7. Vehicle Brakes

8. Padded Storage Unit

9. Cup Holder

10. Fire Extinguisher

Cab Access Ladder

1. Access Ladder

The cab access ladder is

automatically actuated by the

parking brake switch. When

the parking brake is applied,

the ladder folds down. When

the parking brake is released,

the ladder folds up.
