4-1
WET SYSTEM OPERATION

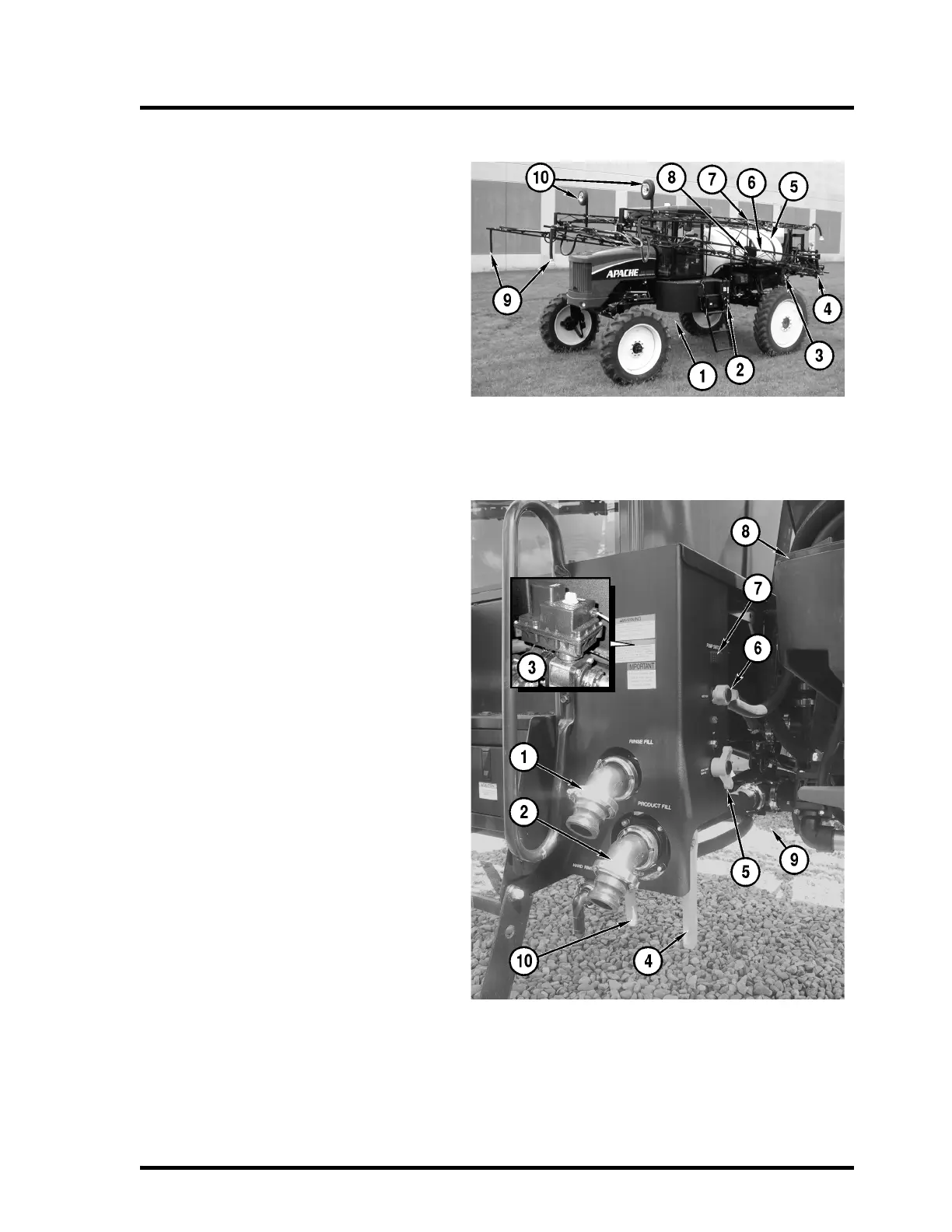

Wet System Overview
1. Rinse Tank (mounted on opposite
side)
2. Fill Station
3. Flowmeter
4. Boom Rack
5. Product Tank
6. Left Boom
7. Left Boom Tip
8. Boom cradle
9. Left and Right Foam Marker Nozzles
10. Auto Boom Wheels (if equipped)
Fill Station
1. Rinse Tank Quick Fill
2. Product Tank Quick Fill
3. Agitation Valve
This valve is electronically actuated and
controlled by a switch on the side console
in the cab.
4. Product Valve (shown in CLOSED
position)
5. Rinse Tank Fill (shown in OFF posi-
tion)
6. Roto-Flush/Agitate Valve (shown in
Agitate position)
Roto-Flush is optional on Apache spray-
ers.
7. Remote Product Pump Switch
This switch turns the product pump ON to
start agitation of product.
8. Optional Cleanload Chemical Eductor
9. Check Valve for Rinse Tank
10. Hand Rinse Valve
This valve allows water from the rinse
tank on the right side to be used for hand
rinsing.
