LUBRICATION AND MAINTENANCE
5-13
Grease Axle Components

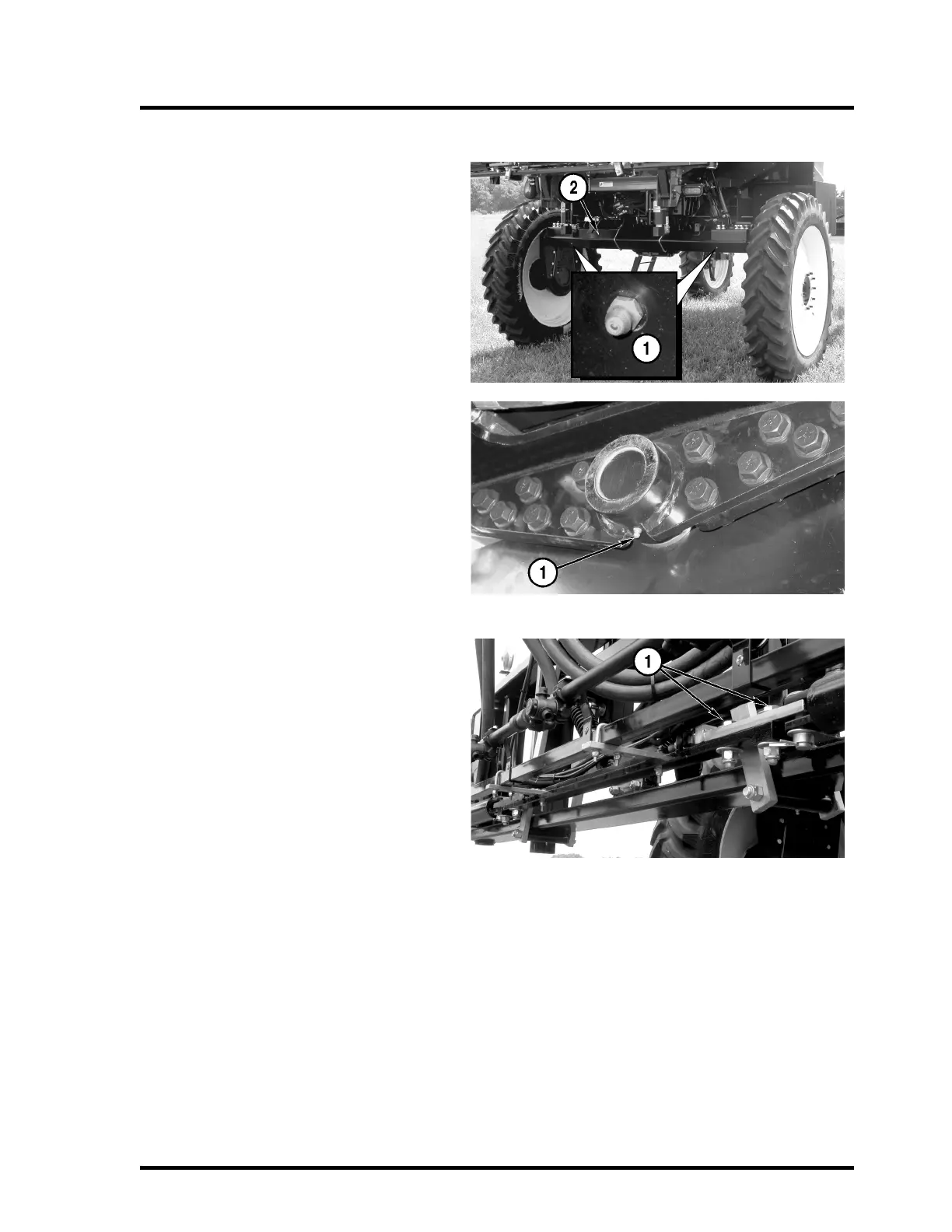

The rear axle is equipped with eight grease
fittings, installed in two square-tube axle
extension assemblies. Four fittings (1) point
downward from the bottom faces of each
square tube (2). Shown are the two rear-most
fittings.
The front axle is equipped with four grease
fittings installed on one square-tube axle
extension assembly.
Apply an ample amount of lithium grease
through each of the fittings.
An axle pivot is located under the vehicle on
the front axle. The pivot is equipped with a
grease fitting (1) on front and rear of the front
axle.
Apply an ample amount of lithium grease
through each of the fittings.
Torque Boom Lead Bolts
Torque the boom lead bolts (1) on the boom
rack to 297 ft-lb [402.6 N•m]. Torque the bolts
on both the right hand side and left hand side
of the boom rack.
