LUBRICATION AND MAINTENANCE
5-33
Every 1000 Hours or Yearly
The following services must be performed after every 1000 hours of operation or yearly.
Clean Transmission Fluid Strainer
Funk Transmission (AS1210 and optionally
equipped AS1010)
The transmission fluid strainer is located
behind the drain plug, under the vehicle, on
the left side of the transmission fluid pan.
Remove the drain plug (1) and drain the
transmission fluid into a suitable container.
Remove the strainer and clean with diesel
fuel. Dispose of the fuel properly.
Install the strainer and drain plug.
Fill the transmission to the appropriate level.
See “Check Transmission Fluid Level” on
page 5-10.
Replace Hydraulic Fluid

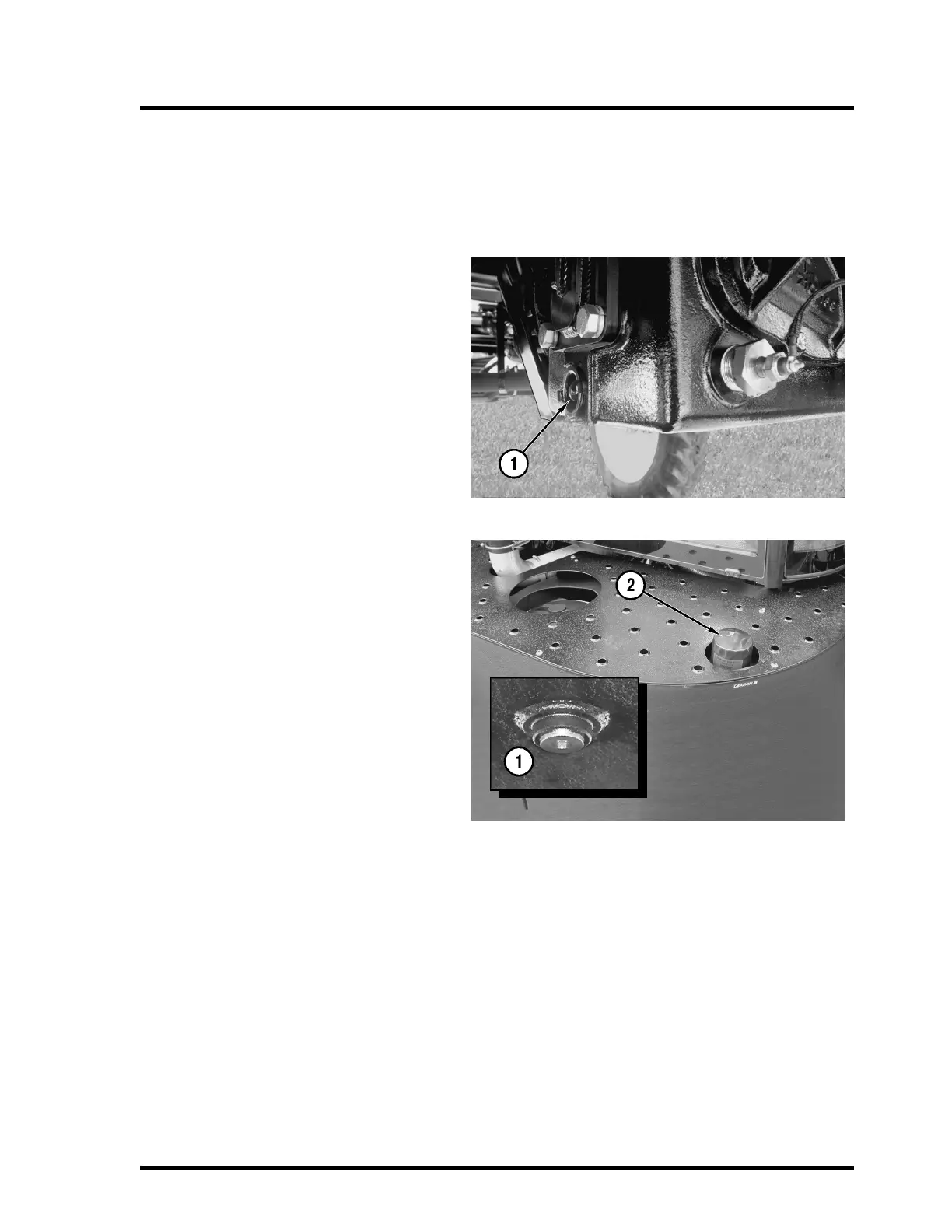

The hydraulic fluid drain plug (1) is located
under the vehicle, on the bottom of the
hydraulic fluid reservoir. The hydraulic fluid fill
location (2) is on top of the reservoir.
Remove the hydraulic fluid drain plug and
drain the fluid into a suitable container with a
capacity of approximately 30 gallons [113.5
liters]. Dispose of the fluid properly.
Install the drain plug.
IMPORTANT: Use only Lucas Universal
Hydraulic Fluid for the Apache Sprayer
hydraulic system.
Fill the hydraulic fluid reservoir with Lucas
Universal Hydraulic Fluid. The reservoir
capacity is approximately 30 gallons [113.5
liters].
Use the sightglass to check the fluid level.
See “Check Hydraulic Fluid Level” on page 5-
11.
