VEHICLE OPERATION
3-18
Axle Adjustment (Optional)
(Adjust On The Go)
The front and rear axles on the Apache Sprayer are adjustable from 120” to 144” (center of left tire to
center of right tire). The Adjust On The Go system will not allow the axle to be adjusted beyond 144”.
To adjust the axles:
While the engine is idling, operate the vehicle
in the forward direction at approximately 3
mph.

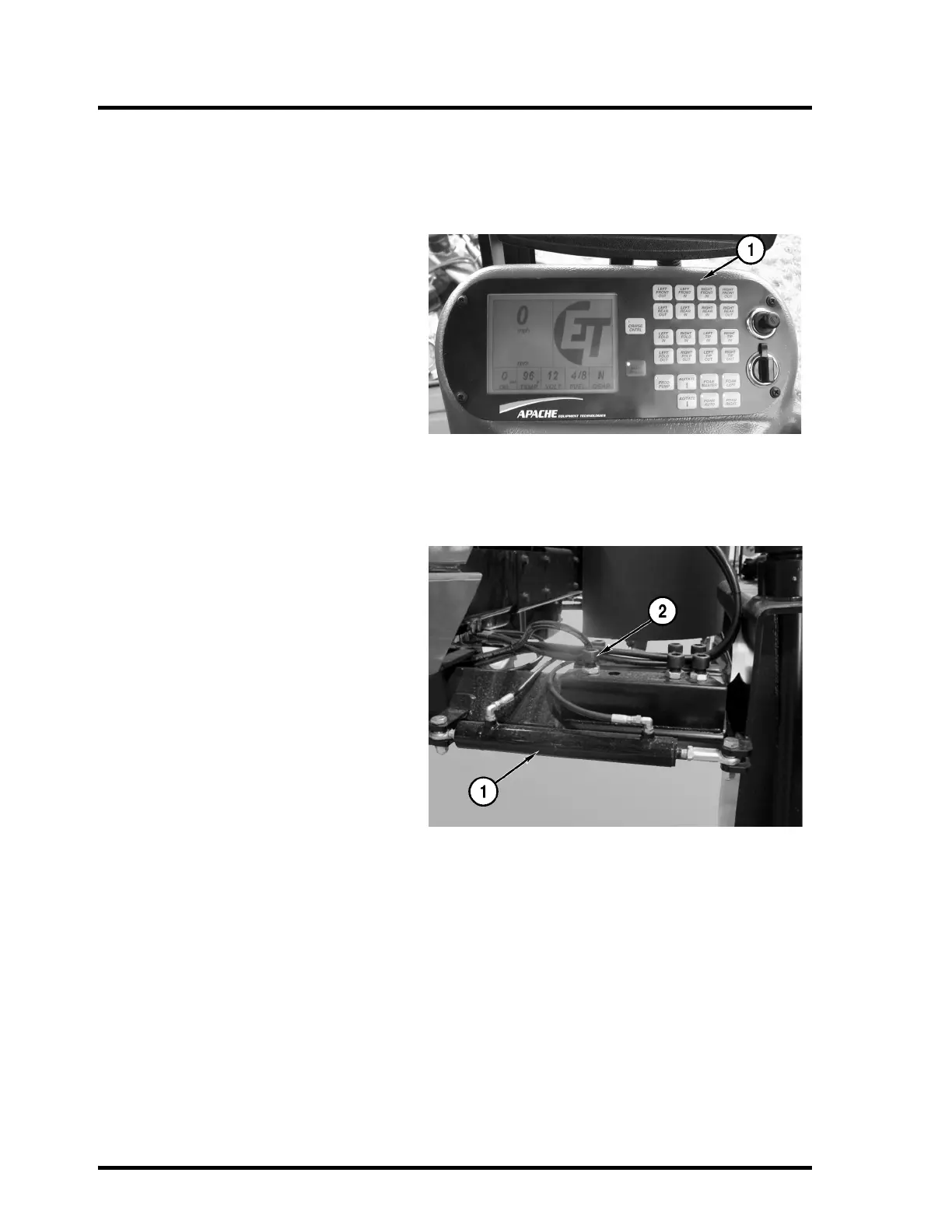

Press the desired switch(es) (1) on the con-
sole to move the wheels in or out.
The axles can be adjusted individually, in
combination, or all together.
Front
When activated, the Adjust On The Go cylin-
der (1) adjusts the axle inward or outward as
desired. The front wheels/axles are actuated
by one cylinder per wheel. The left front
Adjust On The Go axle is shown.
The socket-head bolts (2) should be torqued
to 15 lb-ft [20 N•m] at all times. Check and
adjust the torque weekly. See “Adjust On The
Go” on page 5-16.
Grease the axles daily when using the Adjust
On The Go feature. See “Grease Axle Com-
ponents” on page 5-13.
