Raven 4400 Controller and T-Handle

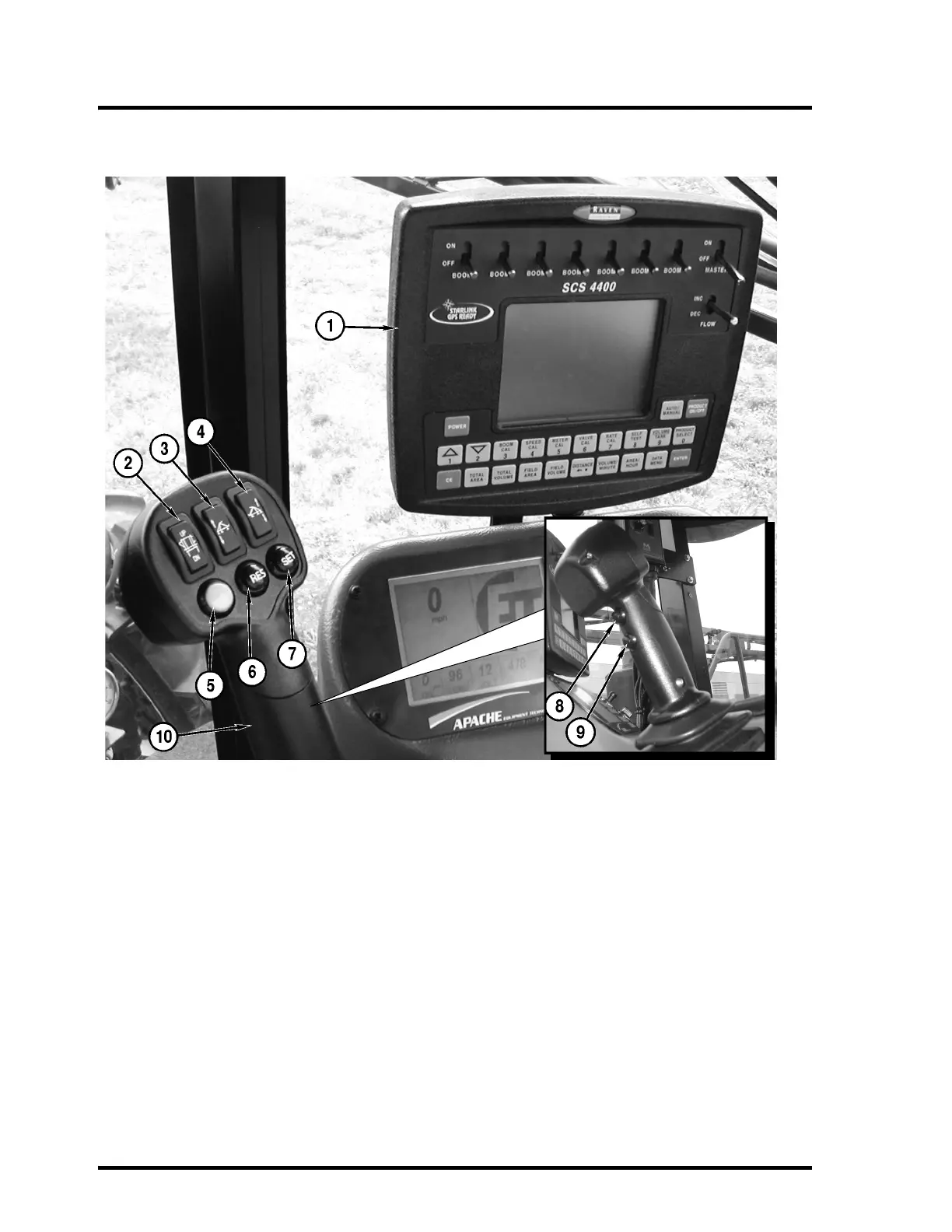

1. Raven 4400 Controller

2. Boom Rack

Press to move the boom rack up or down.

3. Left Boom Tilt

Press to tilt the left boom up or down.

4. Right Boom Tilt

Press to tilt the right boom up or down.

5. Master Spray Switch

Press to turn all five spray sections on or off.

6. Resume Button for Cruise

Press to resume cruise control.

7. Set Button for Cruise

Press to set cruise control.

8. Forward Trigger Button

9. Reverse Trigger Button

10. T-Handle
