WET SYSTEM OPERATION
4-3

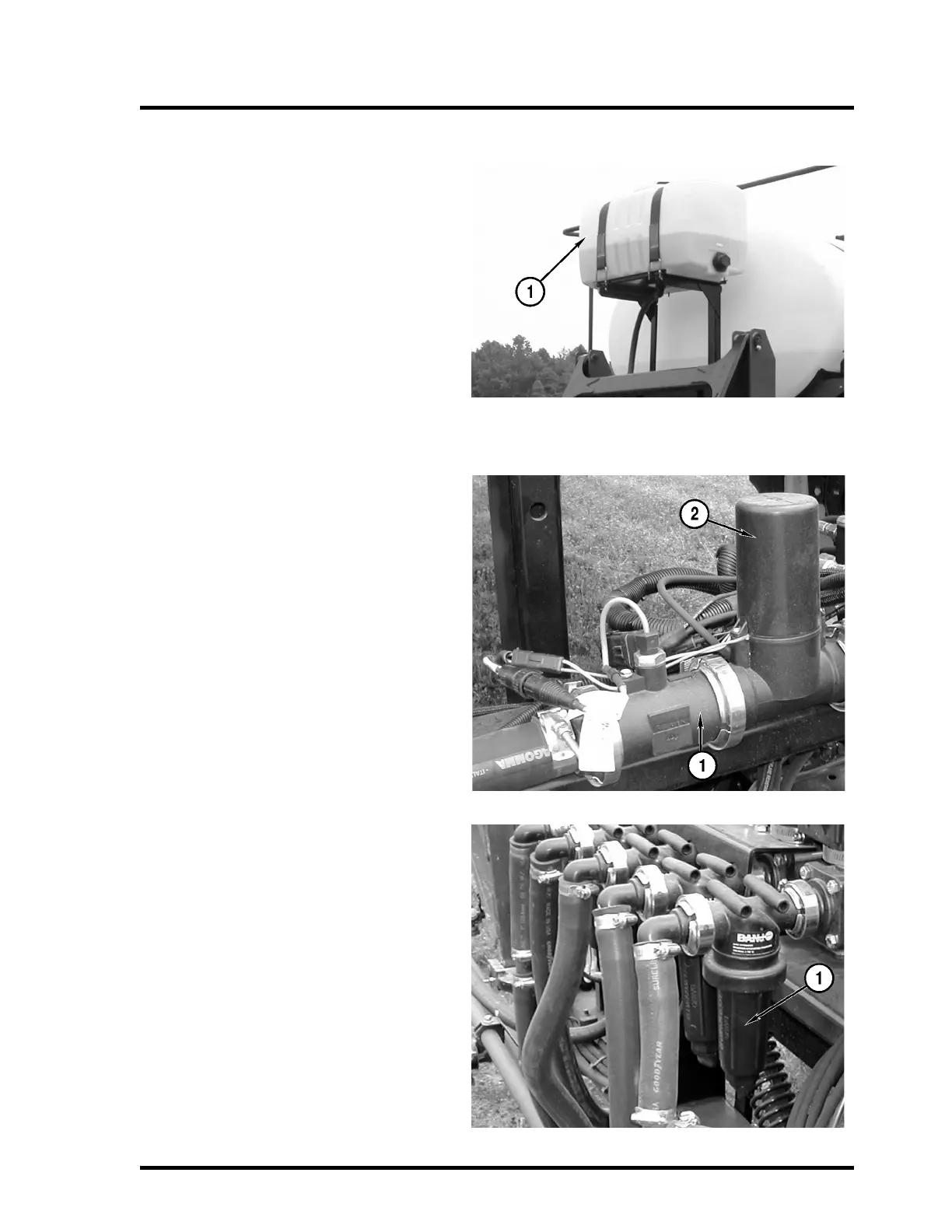

Second Rinse Tank (Optional)
The second rinse tank is plumbed into the
cross just above the product pump. This tank
can be used to flush the product tank (with
optional Roto-Flush) and/or the booms.
Flow Control
Standard Flow
1. Raven Flowmeter
2. Raven Servo Valve
Electronic Boom Valves
The strainers (1) on the five electronic boom
valves have 50 mesh screens which must be
cleaned periodically.
NOTE: Depending on the product being
applied and the rate it is applied, it may be
necessary to use a different mesh screen.
