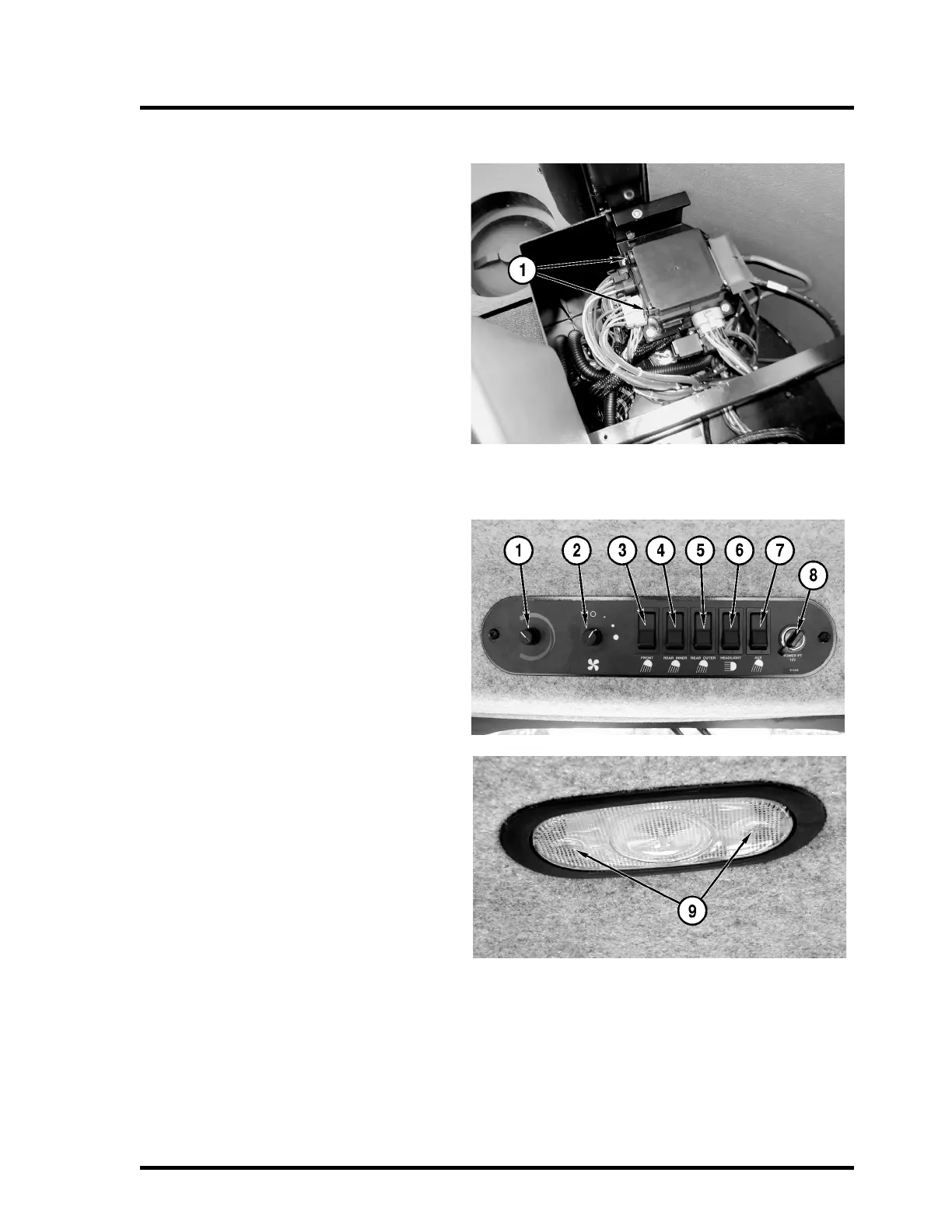

Fuse Block
The fuse block is located under a service
cover inside the right, rear, of the cab. The
cover is shown removed for clarity.
Remove the thumbscrews and cover to
access the fuse block.
Press the two tabs (1) to access the fuses.
Climate Control and Light
Switches
1. Cab Temperature Control
Turn the switch toward blue (counter-
clockwise) for cool. Turn the switch
toward red (clockwise) for warm.
2. Blower Fan Control
Turn the switch counter-clockwise for
“OFF” and clockwise for “ON”.
3. Cab Front Lights
Press the switch down to turn “ON” and
up to turn “OFF” the cab-mounted, front-
facing, work lights.
4. Cab Inner Rear Lights
Press the switch down to turn “ON” and
up to turn “OFF” the cab-mounted inner
rear-facing, work lights.
5. Cab Outer Rear Lights
Press the switch down to turn “ON” and
up to turn “OFF” the cab-mounted outer
rear lights.
6. Driving Lights
Press the switch down to turn “ON” and
up to turn “OFF” the bumper-mounted
driving lights.
7. Future Field Lights
Light switch for future use. The wires are
in a two-pin weatherpack connector
located at the boom valves on the boom
rack.
8. Auxiliary Power Outlet
