WET SYSTEM OPERATION
4-14

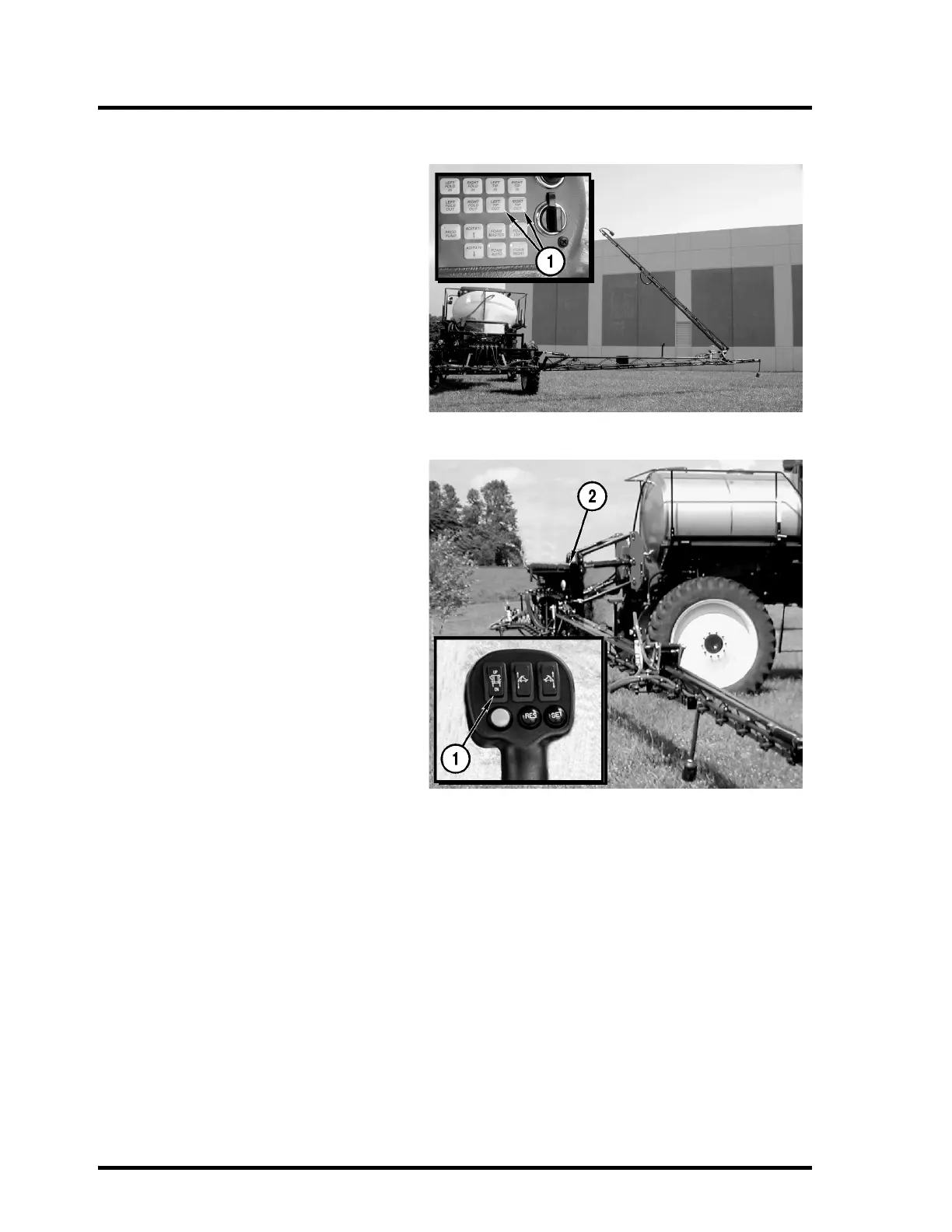

Unfold Boom Tips
All Boom Sizes
NOTE: The booms must be unfolded before
the boom tips can be extended. The cab can
be damaged if the booms are not unfolded
properly.
On the side console, press the bottom of the
left and right boom tip fold switches (1) until
the boom tips are fully extended.
Height Adjustment
All Boom Sizes
On the T-handle, press the bottom of the
boom rack raise/lower switch (1) to lower the
boom rack (2) to the desired height. Press the
top of the switch to raise the boom rack.
