VEHICLE OPERATION
3-19
Rear

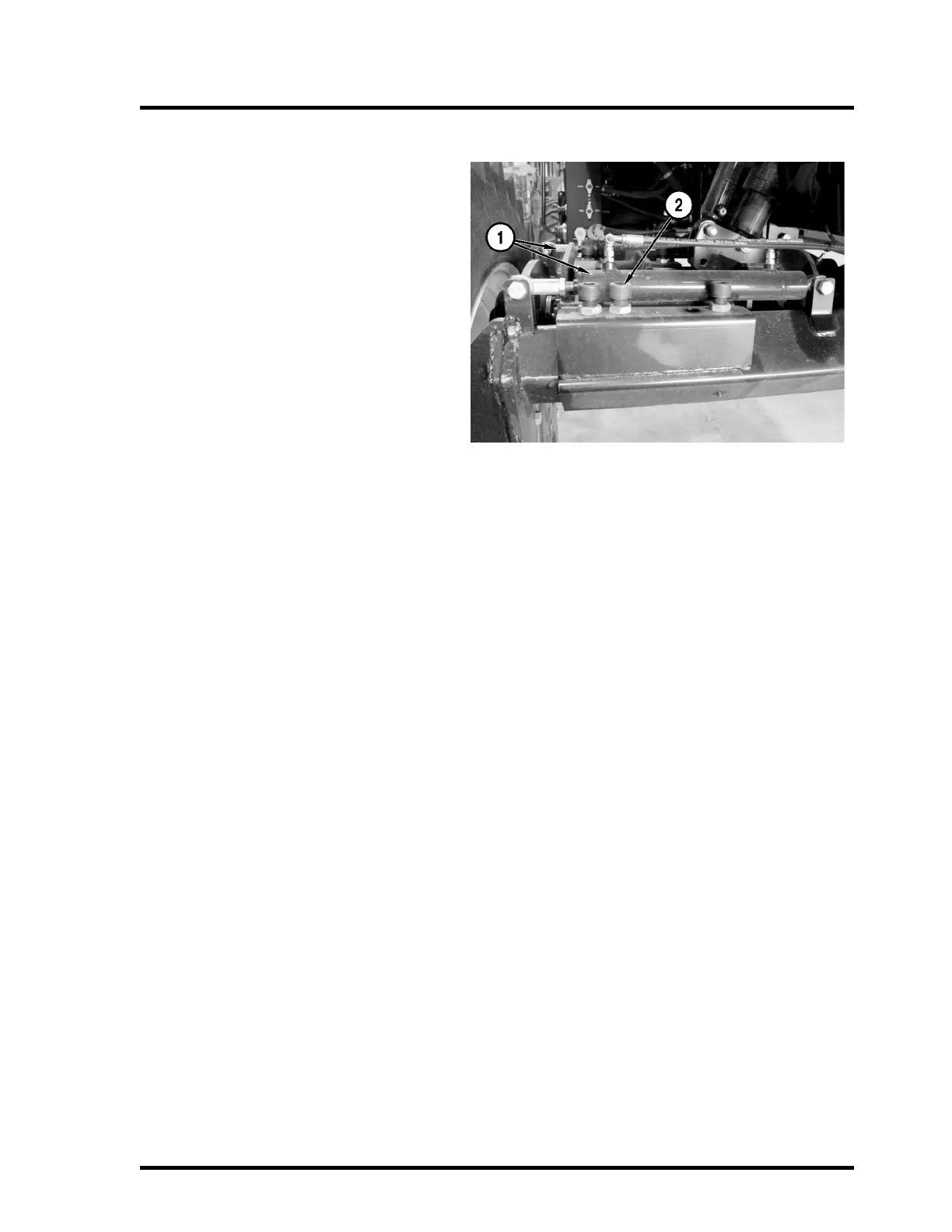

When activated the Adjust On The Go cylin-
ders (1) adjust the axle inward or outward as
desired. The rear wheels/axles are actuated
by two cylinders per wheel. The left rear
Adjust On The Go axle is shown.
The socket-head bolts (2) should be torqued
to 15 lb-ft [20 N•m] at all times. Check and
adjust the torque weekly. See “Adjust On The
Go” on page 5-16.
Grease the axles daily when using the Adjust
On The Go feature. See “Grease Axle Com-
ponents” on page 5-13.
Optional Equipment
NOTE: If your Apache Sprayer is equipped with the optional Raven Smartrax autosteer, Raven Envisio
Plus or Pro smart bar or Raven Autoboom Height Control (PowerGlide Plus or UltraGlide), refer to the
Raven manual supplied with the Apache Sprayer.
NOTE: The Raven Smartrax autosteer and Raven Envisio Plus or Pro smart bar are the only factory-
installed options for guidance. The Raven Autoboom Height Control (PowerGlide Plus or UltraGlide) are
the only factory-installed options for height control. If your Apache Sprayer is equipped with a different
guidance system or height control system, please contact your dealer for assistance.
