Equipment Technologies APACHE AS1010 - Axle Adjustment (Manual); Front; Rear

VEHICLE OPERATION
3-17
Axle Adjustment (Manual)
The front and rear axles on the Apache Sprayer are adjustable from 120” to 144” (center of left tire to
center of right tire).
Front

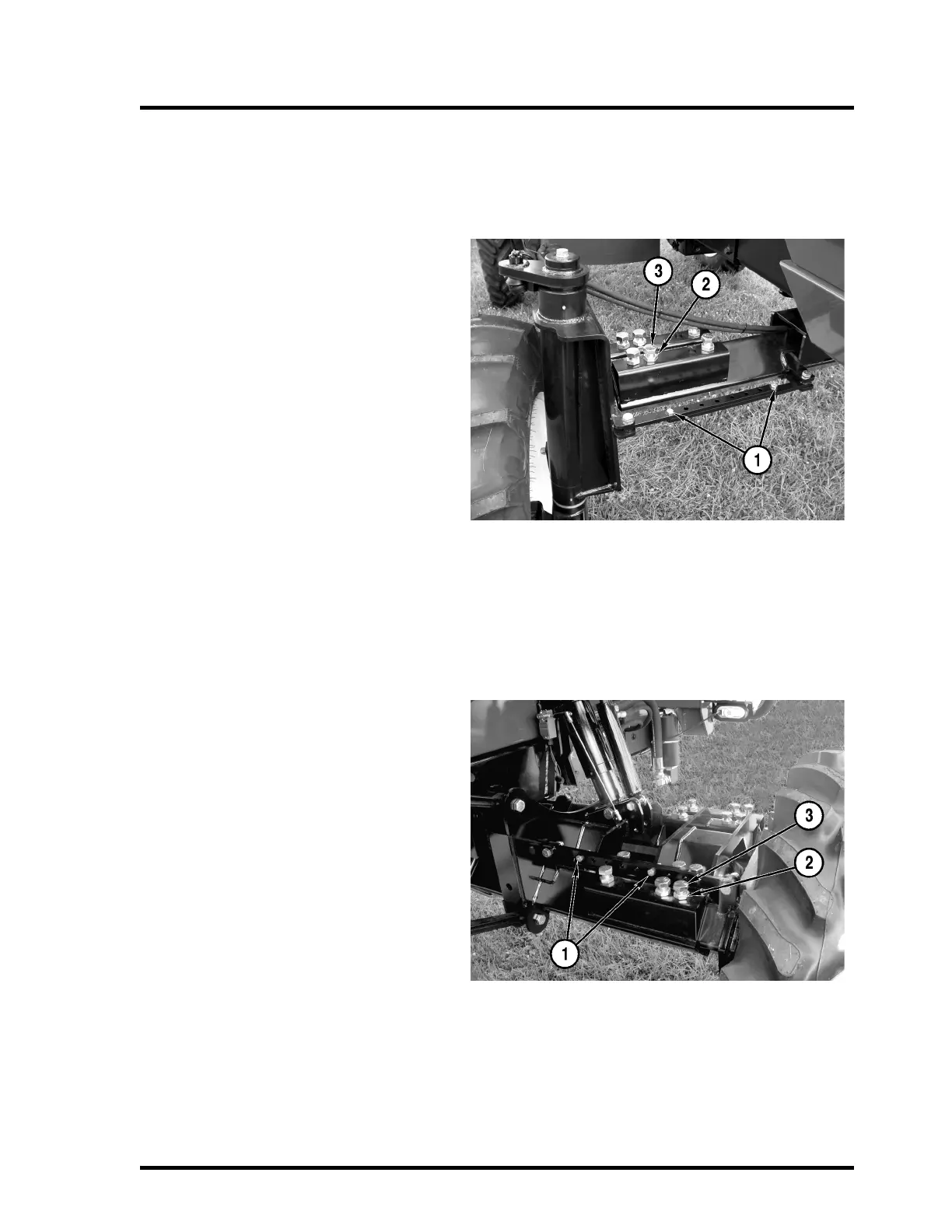

Safely lift the front of the Apache Sprayer so
the front tires are slightly off of the ground.
Remove the two inner bolts (1) from the lock-
ing bar.
Loosen the six jam nuts (2) and six bolts (3)
on the axle brace. The right front axle is
shown.
NOTE: Do not extend the axle beyond 144”
from center of left tire to center of right tire.
Manually slide the wheel to the desired width,
making sure the locking bar holes are
aligned.
Tighten the six bolts (3) to 80 lb-ft [108 N•m]
to secure the axle in place. Tighten the jam
nuts (2).
Install the two locking bar bolts (1) and
tighten.
Repeat the steps to adjust the other front
axle.
Rear
Safely lift the rear of the Apache Sprayer so
the rear tires are slightly off of the ground.
Remove the two inner bolts (1) from the lock-
ing bar.
Loosen the twelve jam nuts (2) and twelve
bolts (3) on the two axle braces. The left rear
axle is shown.
NOTE: Do not extend the axle beyond 144”
from center of left tire to center of right tire.
Manually slide the wheel to the desired width,
making sure the locking bar holes are
aligned.
Tighten the twelve bolts (3) to 80 lb-ft [108
N•m] to secure the axle in place. Tighten the
twelve jam nuts (2).
Install the two locking bar bolts (1) and
tighten.
Repeat the steps to adjust the other rear
axle.
