LUBRICATION AND MAINTENANCE
5-28
Replace Engine Safety Air Filter
IMPORTANT: Do not attempt to clean the
engine safety air filter. Always replace with a
new filter.

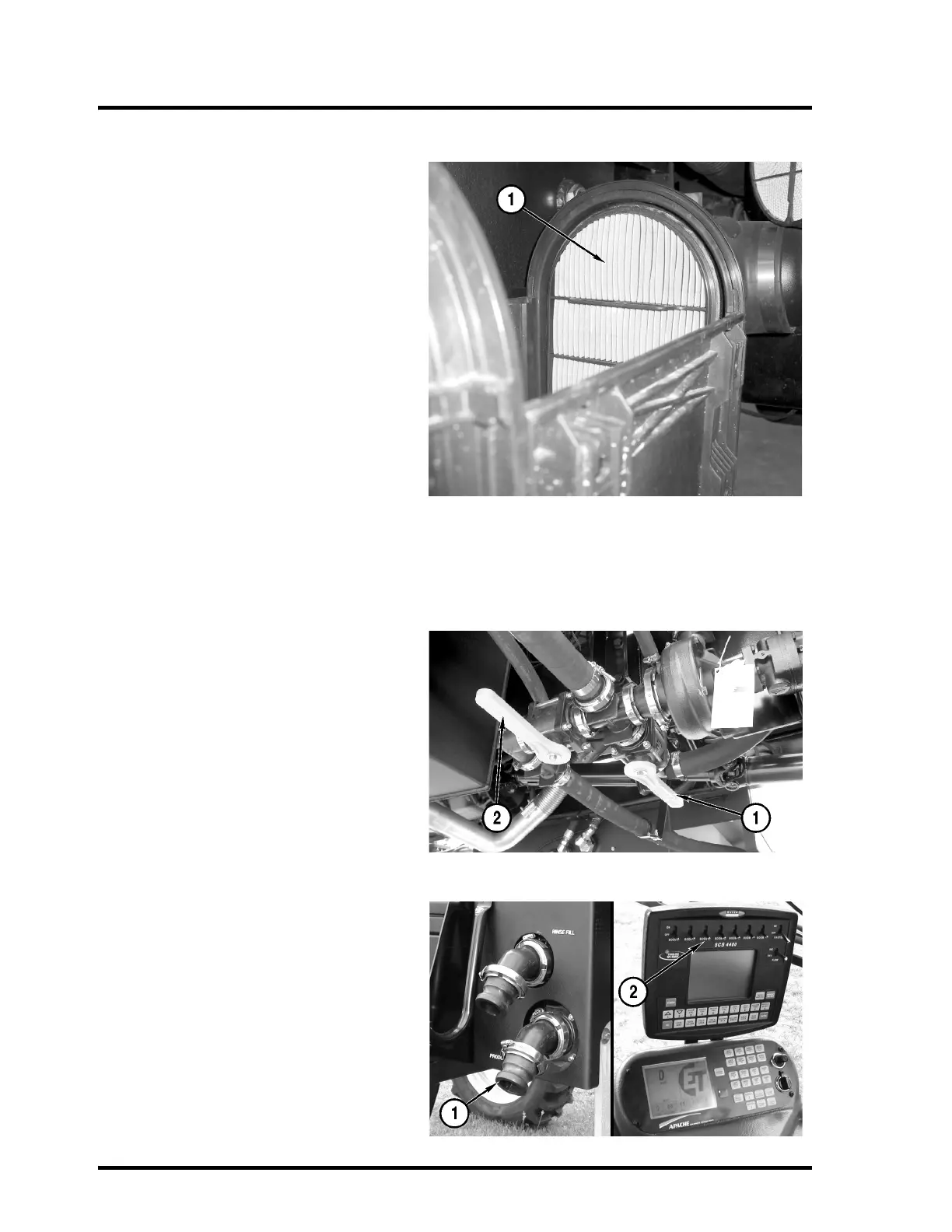

The engine safety air filter (1) is mounted on
the right side of the vehicle, in front of the
hydraulic tank.
Release the four latches and remove the
cover from the air cleaner assembly. Use a
rocking motion to remove the primary air filter
and set it aside.
Use a rocking motion to remove the safety air
filter and discard the old filter. Do not leave
the intake opening uncovered. If not replac-
ing the filter immediately, cover the opening
to prevent dirt and debris entering the intake
system.
Install the new engine safety air filter, Part
Number 201300117.
Install the primary filter, air cleaner cover, and
engage the four latches.
Winterize Wet System
The product tank and wet system must be
flushed before winterizing. See “Flushing
Product Tank” on page 4-24. See “Flushing
Wet System” on page 4-26.
Open the product tank fill valve (1), foam
marker fill valve, rinse tank valve (2), and
Roto-Flush valve to drain any remaining
water in the tanks and Roto-Flush line.
Close the rinse tank valve (2), foam marker
valve, and sump valve. Set all boom section
switches to the “ON” position and press the
bottom half of the agitation switch to turn agi-
tation off.
Connect a compressed air line to the main fill
valve (1). Apply compressed air at 40 psi to
blow out the wet system and booms. Cycle
the boom section switches (2) off and on sev-
eral times to purge water from around the
valves.
Disconnect the air line and close the product
fill valve.
