Equipment Technologies APACHE AS1010 - Replace Cab Recirculating; Air Filter; Replace Cab Charcoal

LUBRICATION AND MAINTENANCE
5-31
Replace Cab Recirculating
Air Filter
IMPORTANT: Do not attempt to clean the old
cab air filters. Always replace with a new fil-
ter.

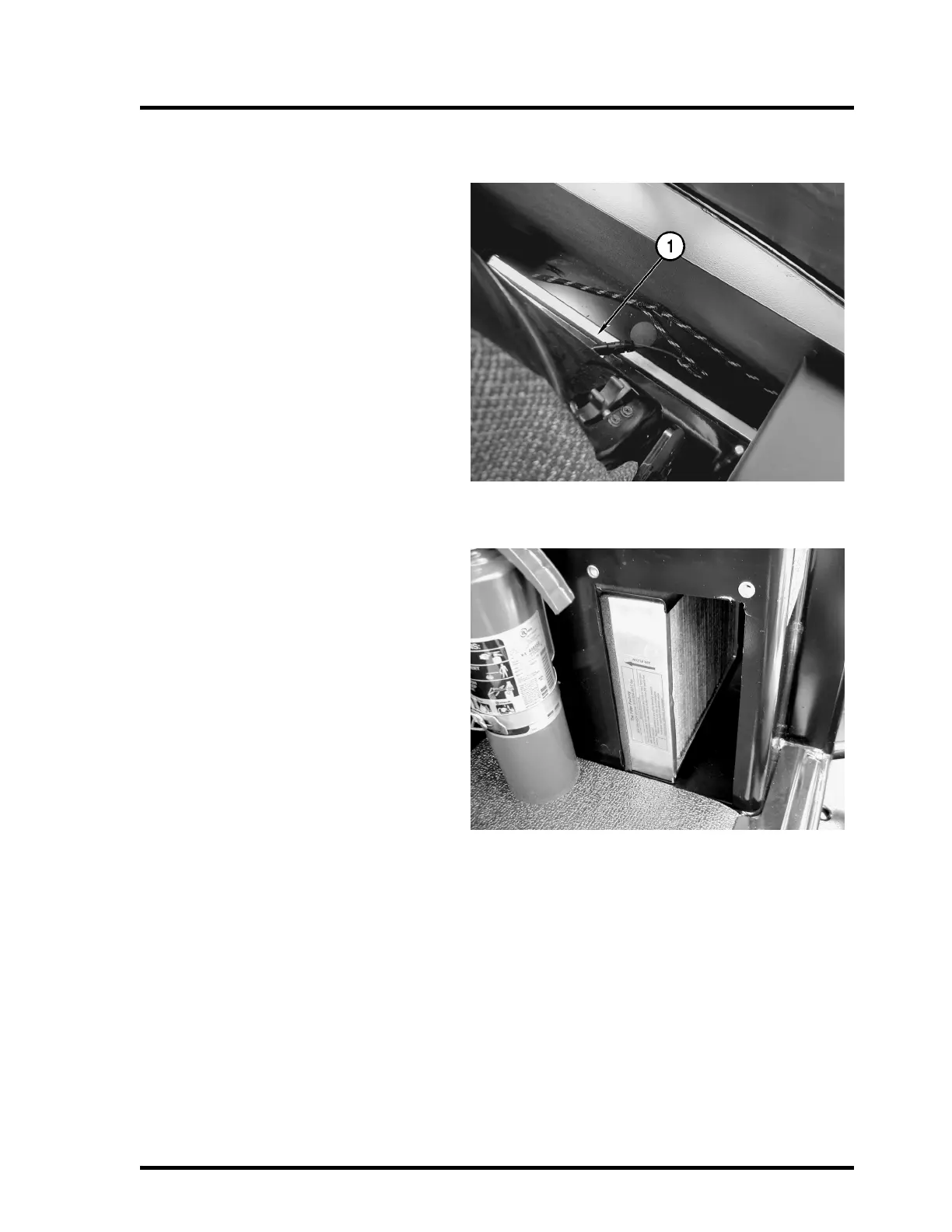

The recirculating air filter (1) is mounted in
the cab, behind the driver’s seat.
Grasp the edge of the filter and slide the old
air filter up and out of the frame. Discard the
old filter.
Insert a new filter, Part Number 490006660
into the frame with the air flow arrow pointing
toward the driver’s seat.
Replace Cab Charcoal
Air Filter
The charcoal cab air filter is mounted in the
cab, to the left of the driver’s seat. The cover
is shown removed for clarity.
Remove the two thumb screws and air filter
cover. Slide the old air filter out of the frame
and discard.
IMPORTANT: Do not allow old cab filters to
stay in the cab. Once removed, dispose of
the filters immediately.
IMPORTANT: Do not attempt to clean the old
cab air filter. Always replace with a new filter.
Insert a new filter, Part Number 490003650,
into the frame with the air flow arrow pointing
toward the driver’s seat.
Replace the cover and thumb screws.
