VEHICLE OPERATION
3-4

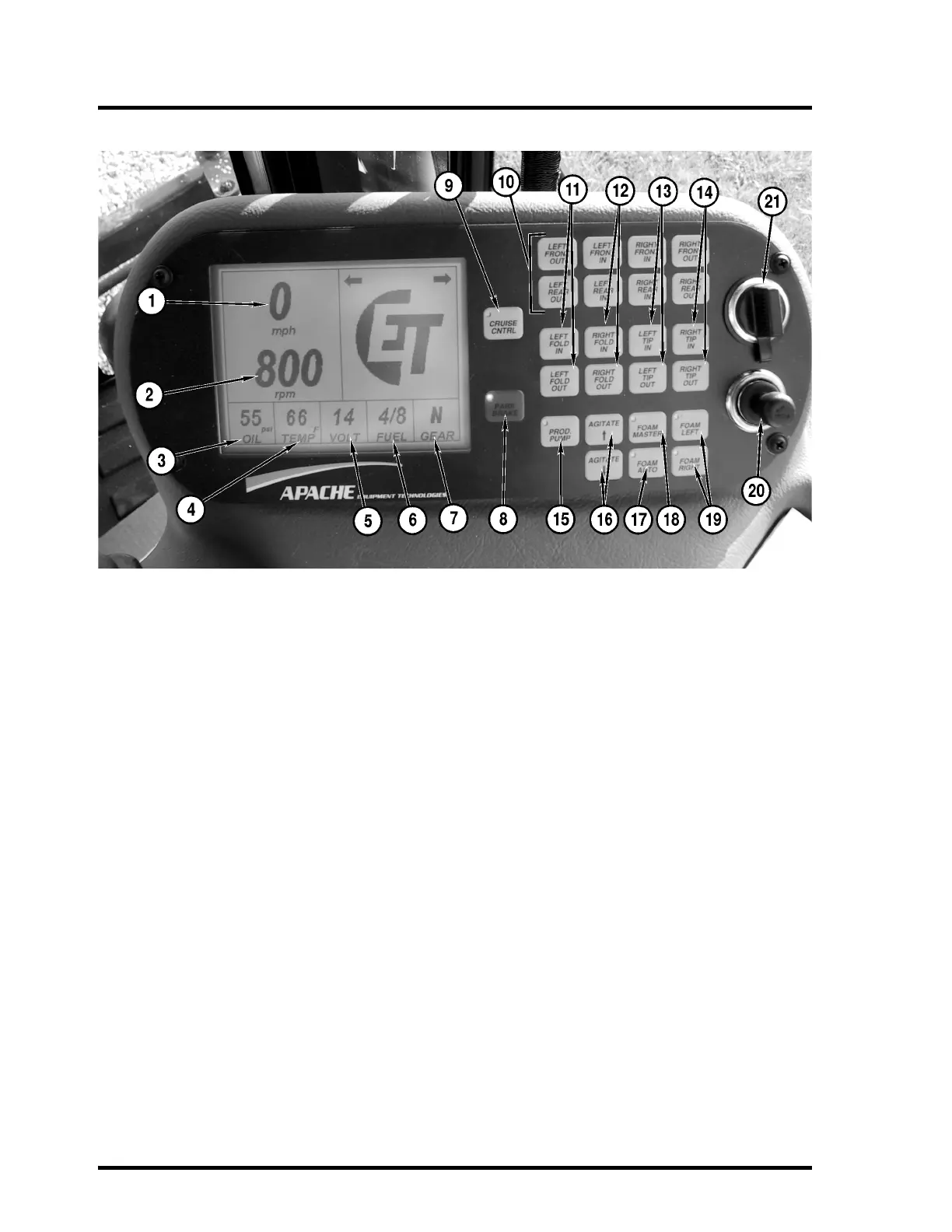

Apache Sprayer Console
1. MPH Readout
2. Engine RPM
3. Engine Oil Pressure
4. Engine Water Temperature
5. Voltage Level
6. Fuel Level
7. Direction & Gear Indicator
8. Park Brake Switch
9. Cruise Control Master Switch
10. Axle Hydraulic Adjust Switches In & Out
(Optional)
11. Left Boom Fold In & Fold Out
12. Right Boom Fold In & Fold Out
13. Left Boom Tip In & Fold Out
14. Right Boom Tip In & Fold Out
15. Product Pump On/Off Switch
16. Agitation Pressure Increase & Decrease
17. Foam Master On/Off Switch
18. Foam Auto On/Off
19. Turn Foam Drop On for Right Side
& Left Side
20. Cigarette Lighter
21. Auxiliary Power Outlet
