Equipment Technologies APACHE AS1010 - Replace Drop Box Fluid; Check Front Suspension Accumulator Charge

LUBRICATION AND MAINTENANCE
5-32
Replace Drop Box Fluid

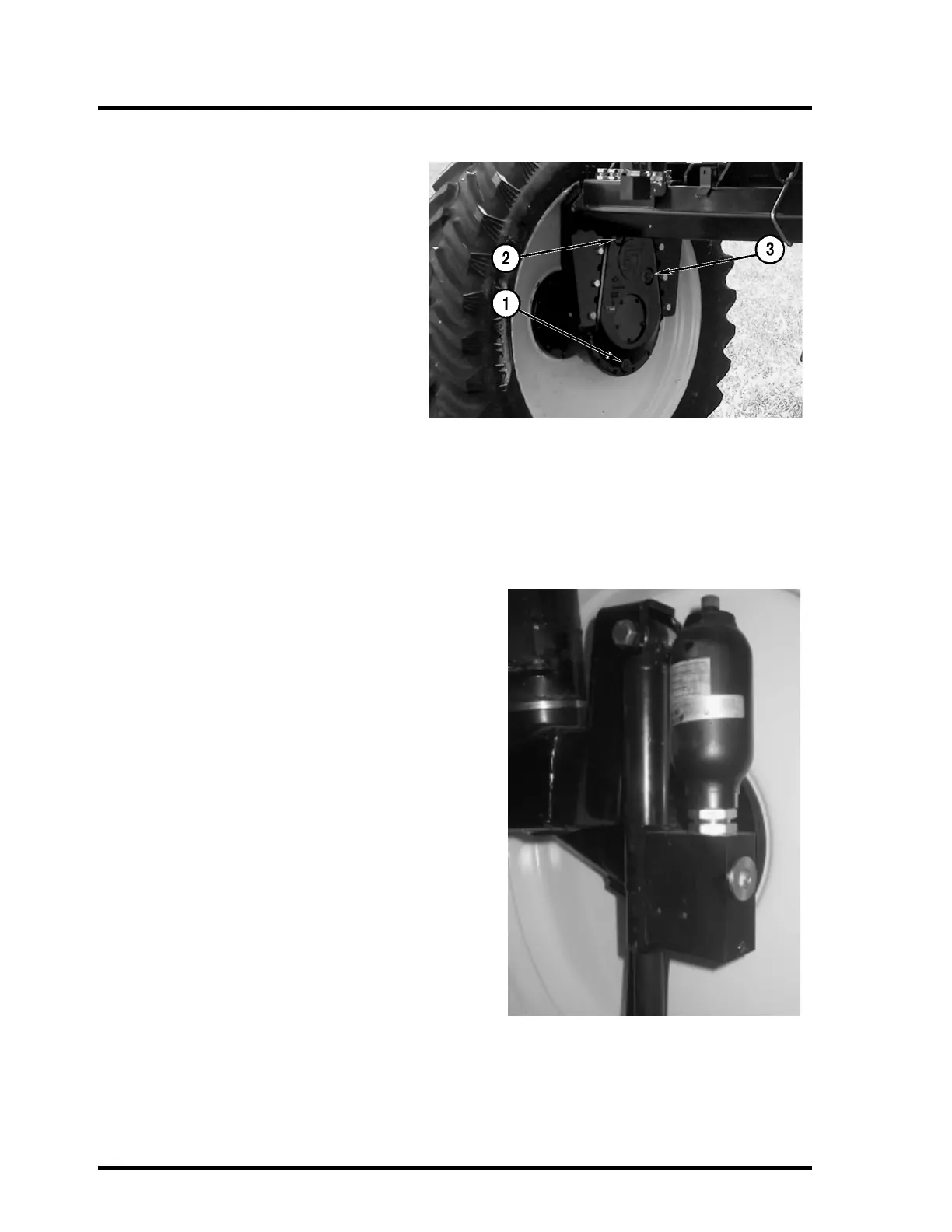

The drop box drain, level, and fill plugs are
located on the drop box at each rear wheel.
The left drop box is shown.
Remove the drain plug (1) and drain the fluid
into a suitable container. Dispose of the fluid
properly.
Install the drain plug.
IMPORTANT: Use only Lucas 80/90 Gear Oil
for the drop box fluid.
Remove the drop box fill plug (2) and level
plug (3). Add fluid until it is level with the bot-
tom of the level hole (3). The approximate
capacity of each drop box is 21 quarts [20
liters].
Install and tighten the fill plug (2) and the
level plug (3).
Repeat the steps for the other drop box.
Check Front Suspension
Accumulator Charge
The charge in the front suspension accumulators must
be checked yearly.
Contact an Apache dealer for service.
AS1010: Charged at 900 psi
AS1210: Charged at 950 psi
