LUBRICATION AND MAINTENANCE
5-7

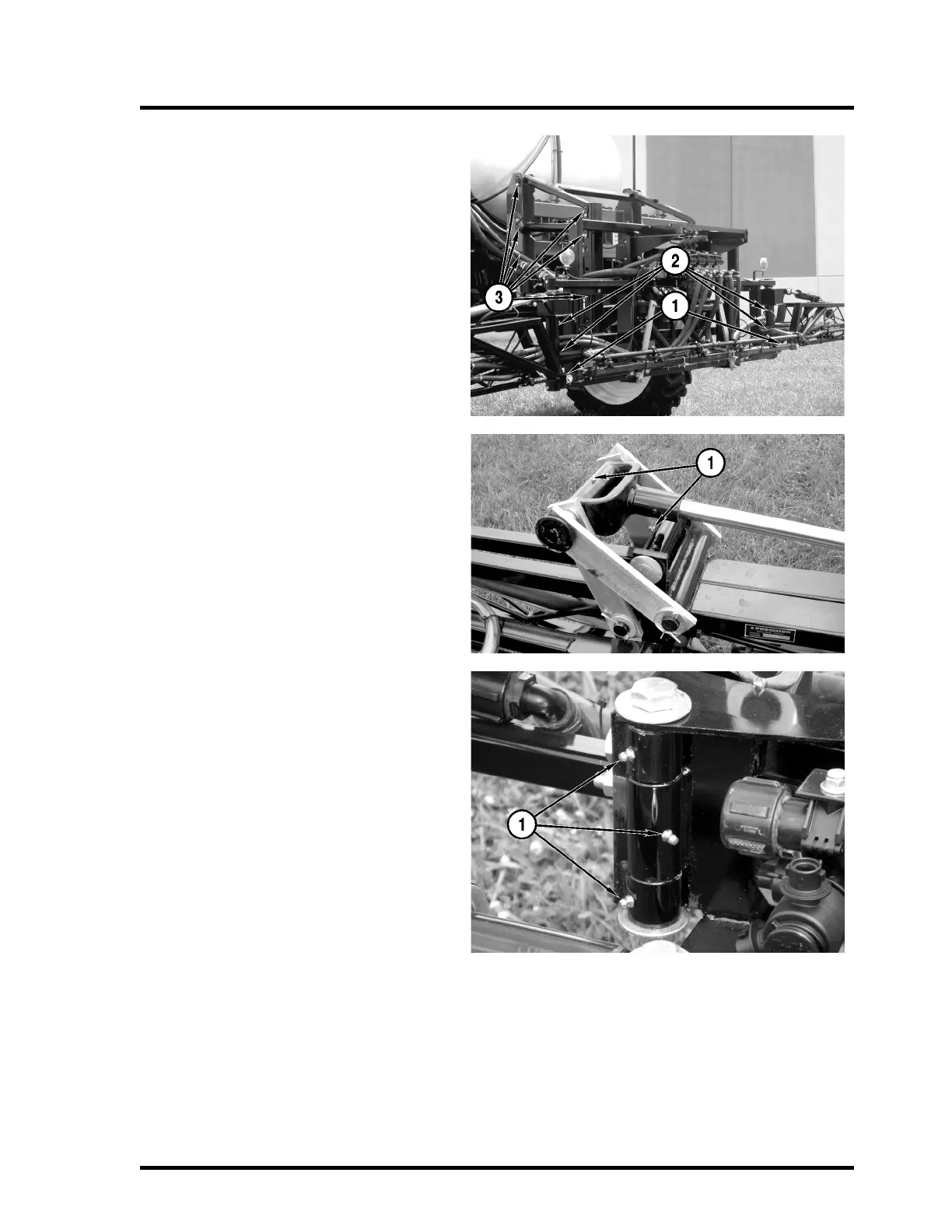

Boom Tilt
There are two boom tilt grease fittings (1).
Boom Fold
There are four boom fold grease fittings (2).
Boom Rack
There are two sets of six boom rack, flag-pin
style, grease fittings. The six left side fittings
(3) are shown. The six right side fittings are in
the same orientation on the right side of the
boom rack.
Boom Tip
There are four boom tip grease fittings (1),
two on each boom tip. The left side is shown.
Boom Inner Breakaway
There are six boom inner breakaway grease
fittings (1), three on each boom. The left side
is shown.
