Erbe VIO 3 - swiftCOAG Effect 10 Voltage Test

77 / 84
7 • Maintenance and servicing
80116-938_V24392  2023-03

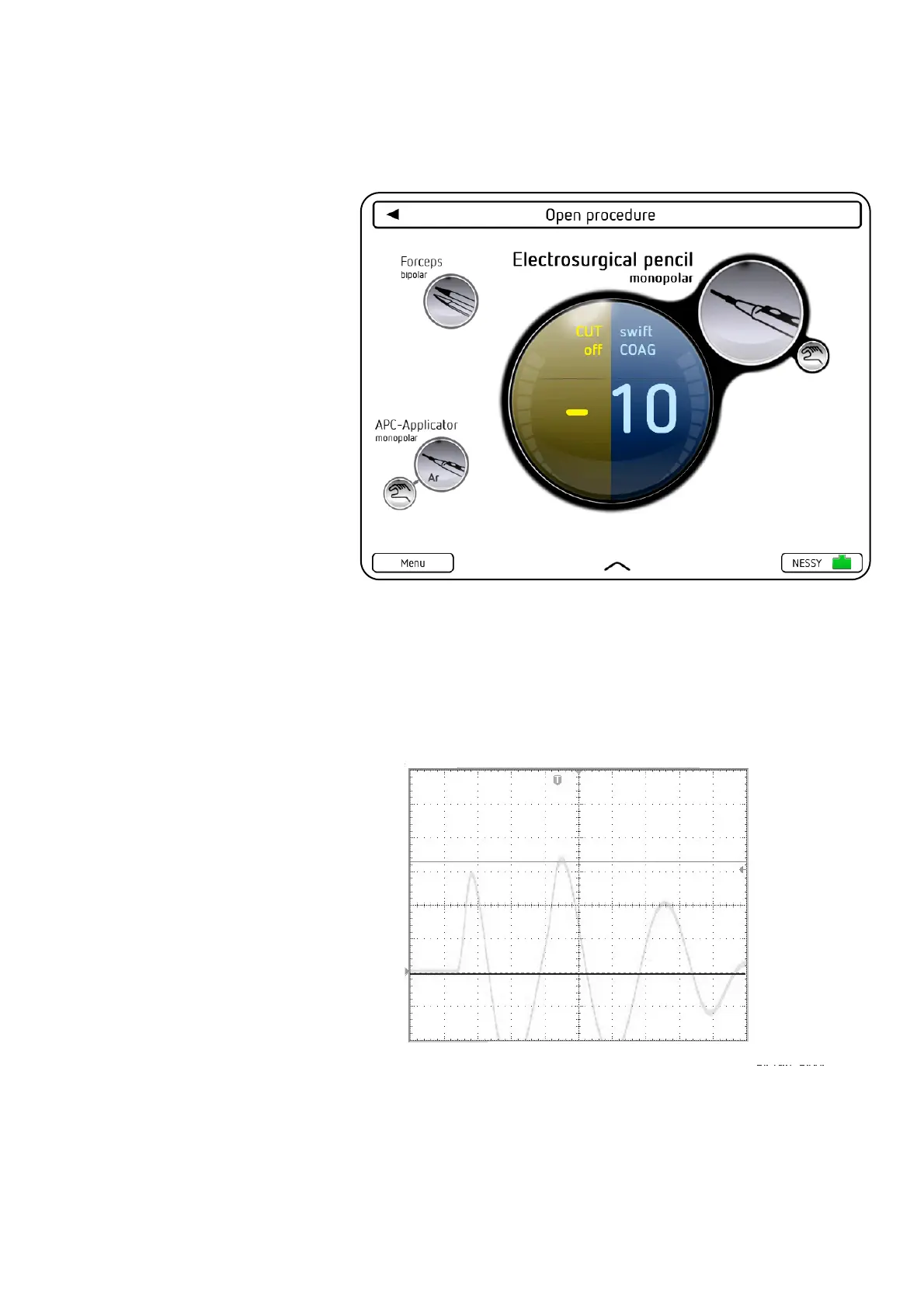

swiftCOAG, effect 10 1. Set the test specimen to:
Electrode handle, monopolar – swiftCOAG – Effect 10
2. Set HF power meter to:
RL = 5200 Ohm
3. Use the COAG button of the electrode handle to activate the test
specimen.
4. Set the zero line on the oscilloscope. To do so:
– Set the picture so that the positive half wave is clearly displayed.
– Terminate activation and determine the zero line with a cursor line
(the probe has an offset value, which can also be negative).
5. Use the COAG button of the electrode handle to activate the test
specimen again.
6. On the oscilloscope, put the second cusor line in the peak of the posi-
tive half wave and determine the measure value for the peak voltage
from the delta.
7. Determine and document the measured value. The tolerance range is
2000 to 2500 V
p
.
