Corrective Maintenance
5-18 © Essemtec AG Fox Maintenance
0000074/05
/ March 31, 2017

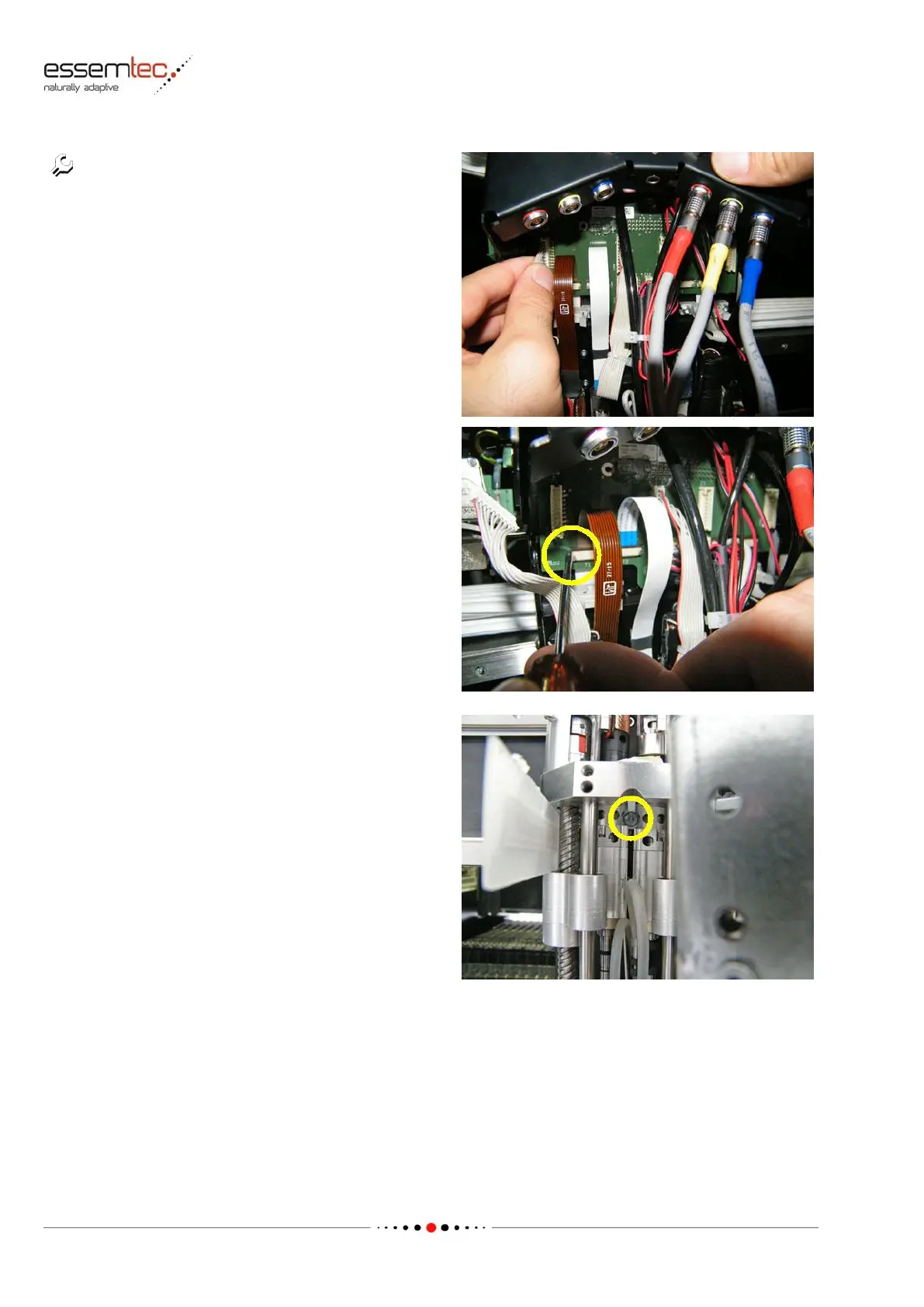

Unplug all edge connectors and flex prints on
PCB side which are relevant to remove the head
(see pictures).
If necessary lift up the connectors by means of a
screwdriver (picture).
Loosen and remove the upper head fixing screw
very carefully. Do not touch the encoder(s) of
the ZT element(s).
Pull out the head assembly tool(s) so that the ZT
element can move up to its neutral position.
