Corrective Maintenance
Fox Maintenance © Essemtec AG 5-19
0000074/05
/ March 31,
2017

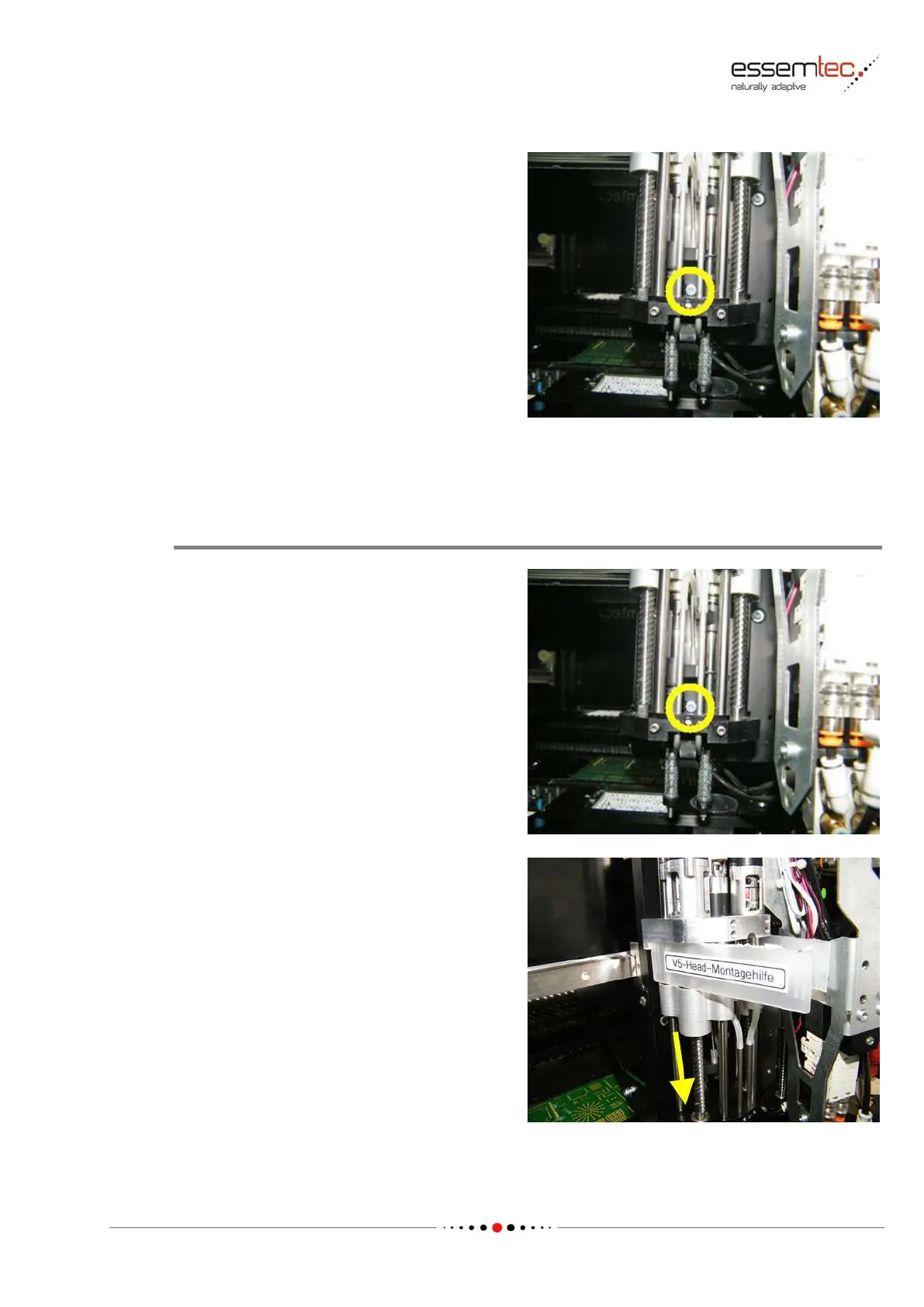

Loosen and remove the lower head fixing screw.
Remove the head very carefully from the
machine. Take care on the connection cables
and vacuum tubes.
5.4.3 Head Mounting onto Machine
Mount the Head
Follow the next steps for a save and gentle re-
attachment of the head to the machine:
Attach very carefully the head to the machine.
Attach and tighten the lower head fixing screw
very carefully by means of a suitable Allen key.
Pull down the ZT element(s) and place the head
assembly tool(s) ESSP-115183 as shown on
picture. The purpose of the head assembly tool
is to hold down the ZT element(s) for an easy
and gentle access of the head fixing screw.
