Essemtec Fox - Head Removal from Machine

Corrective Maintenance
Fox Maintenance © Essemtec AG 5-15
0000074/05
/ March 31,
2017

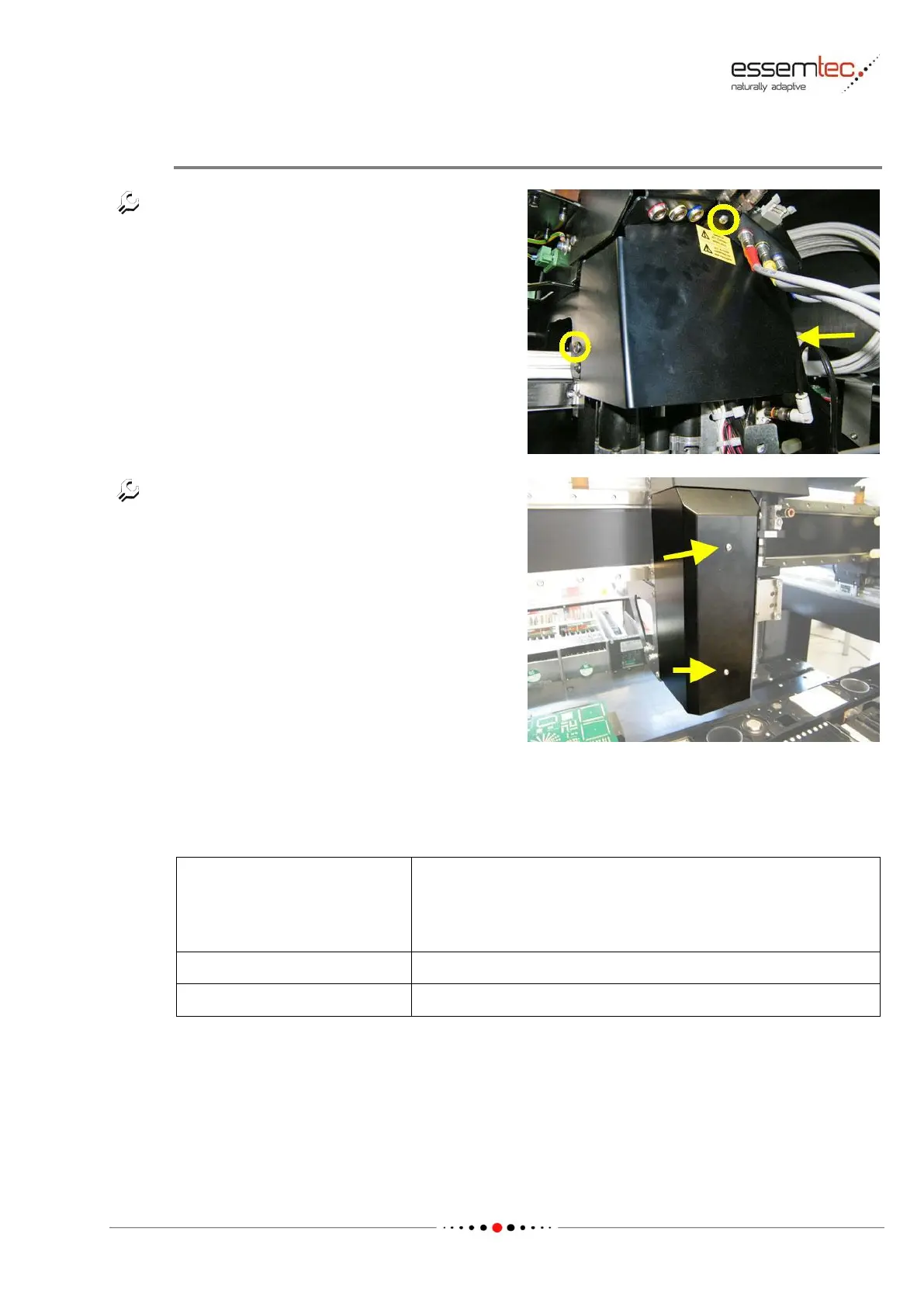

Re-attach the Covers
Carefully place the top head cover on the correct
position.
Screw in the three fixing screws and tighten
them (see picture).
Carefully place the head cover on the correct
position.
Screw in the two fixing screws and tighten them.
5.4.2 Head Removal from Machine
Tools and Material
Tools:
Set of Allen keys
V5 Head Assembly Tool ESSP-115183
Screwdriver 0 or 1
Auxiliary Material:
none
Spareparts:
none
