Corrective Maintenance
5-14 © Essemtec AG Fox Maintenance
0000074/05
/ March 31, 2017

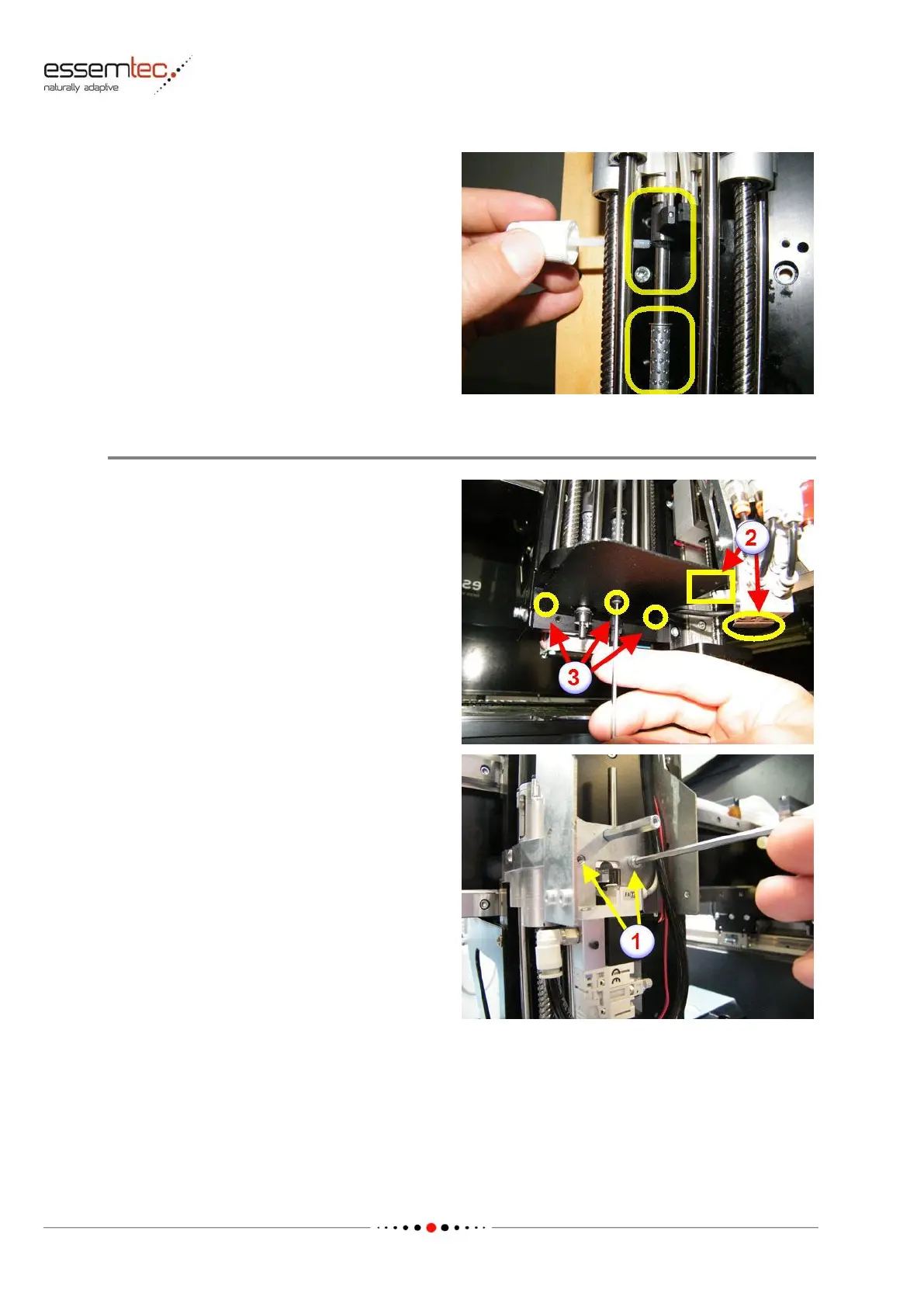

Apply a tiny amount of grease below the groove
(SP26/HG04) and on the ball cage (SP26/HG01).
Turn the axis while applying.
After lubricating, move the feedthrough piece
back up to its correct position.
Reattach the circlip into the groove.
Move up the metal connecting piece and plug in
the silicon tube.
Tighten the grub screw on front of the head.
Re-attach the Valve Support Plate
If blow-off valves are mounted the re-
attachment depends on the variant of
dismounting:
• Variant 1: screw in and tighten the two valve
fixing screws (2).
• Variant 2: screw in and tighten the three
fixing screws of the head bottom cover (3).
For the corrective maintenance, probably both
variants may be used.
Turn the valve support to its correct position.
Screw in and tighten the two fixing screws (1).
