Materials and Tool-Kits
1-2 © Essemtec AG Fox Maintenance
0000074/05
/ March 31, 2017

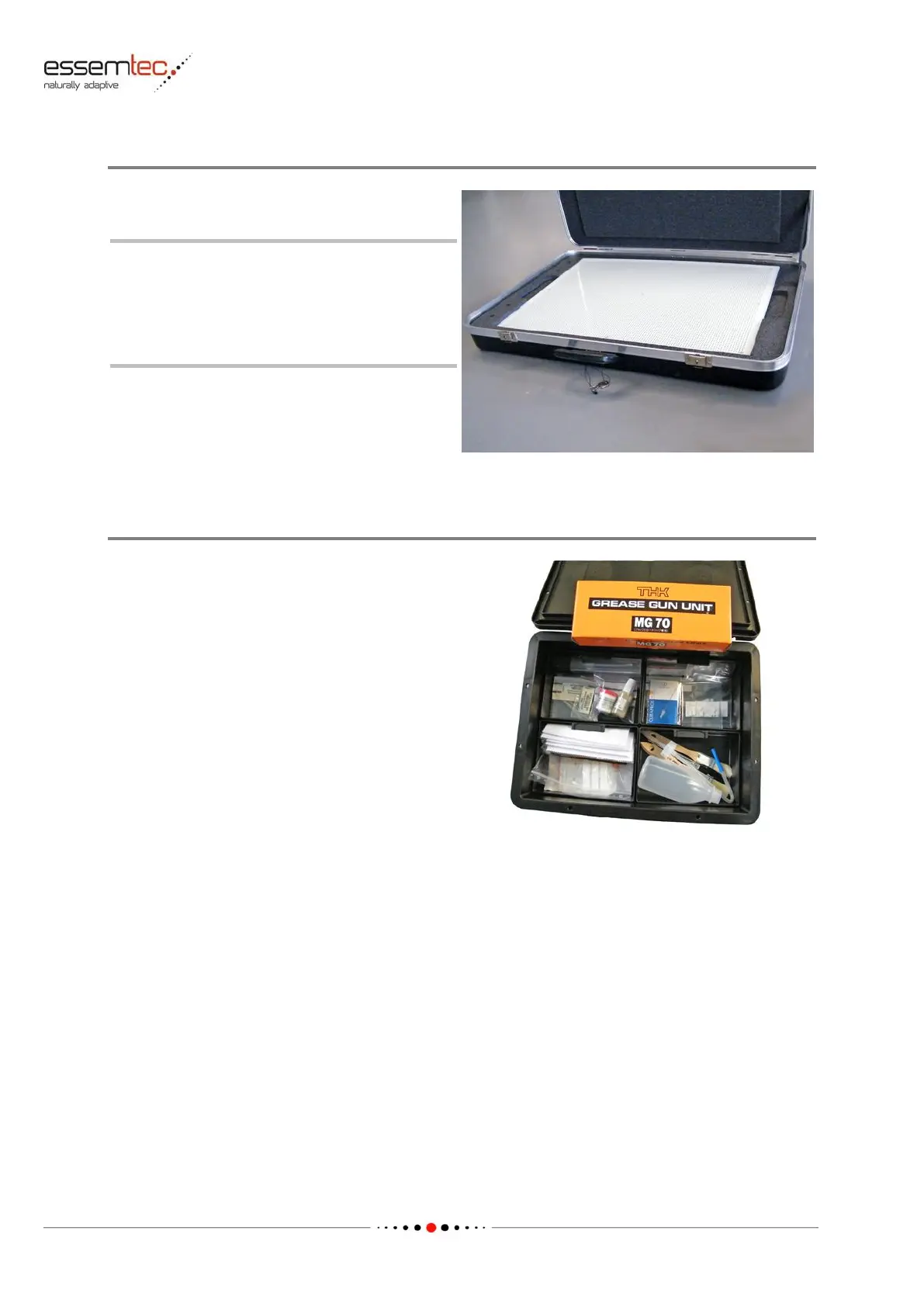

CAL-SET13 Tool-Kit for XY Mapping / Head Rotation
Part number: CAL-SET13
Note:
The CAL-SET13 Tool-Kit is not scope of
the machine delivery.
The arrangement of the tools in the
delivered tool-kit may vary from the
illustration.
The purpose of this set is to calibrate the XY
mapping and head rotation. The kit consists of:
• 1x glass plate 300 x 610 mm
• 4x support pins PC-SUP-C00
SP26/MAIN05 Tool-Kit for P&P Maintenance Tasks
Part number: SP26/MAIN05
The purpose of this set is to provide the correct
tools and materials for machine maintenance.
The kit consists of:
• grease gun with grease fittings
• grease for linear carriages
• contact pins for PC feeder
• various brushes for cleaning
• 2x head assembly tool for downholding the
ZT elements
• leaf springs for pulling back the nozzle on
the ZT element shaft
• microfibre eyeglass cloth for cleaning the
optical measuring system
• squeeze bottle for rinsing the vacuum
passage
• various filters for valves
• vacuum silicon tubes for head
• grease for head lubricating
