DIR911T User Guide
75
Each of the individual connectors is described in the subsections that follow.
USB A “Host Side” Connector
There is a single “Host Side” USB A type connector on the front panel. This connector is
used to connect the unit to standard USB peripherals such as USB Hard Drive Keys. The
pin diagram for this connector is shown in Figure #60 and the pin description is shown in
Table #9.
1
4

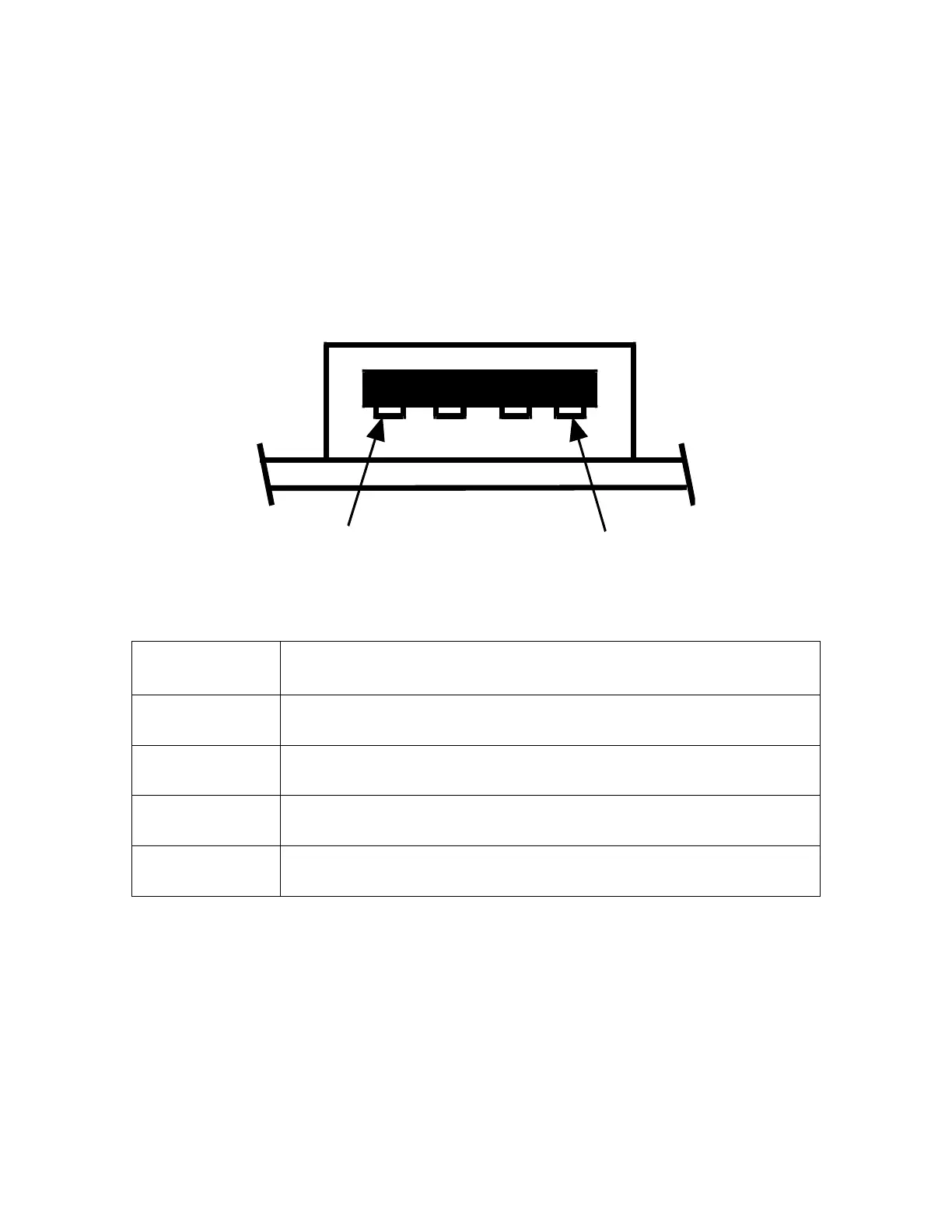

Figure 60: Front Panel USB A Connector Pin Diagram
Pin Description
1 Vbus
2 D-
3 D+
4 Ground
Table 9: Front Panel USB A Connector Pin Description
USB B “Peripheral Side” Connector
There is a single “Host Side” USB B type connector on the front panel. This connector is
used to connect the unit to standard USB hosts such as laptops or PocketPCs. The pin
diagram for this connector is shown in Figure #61 and the pin description is shown in
Table #10.
