DIR911T User Guide

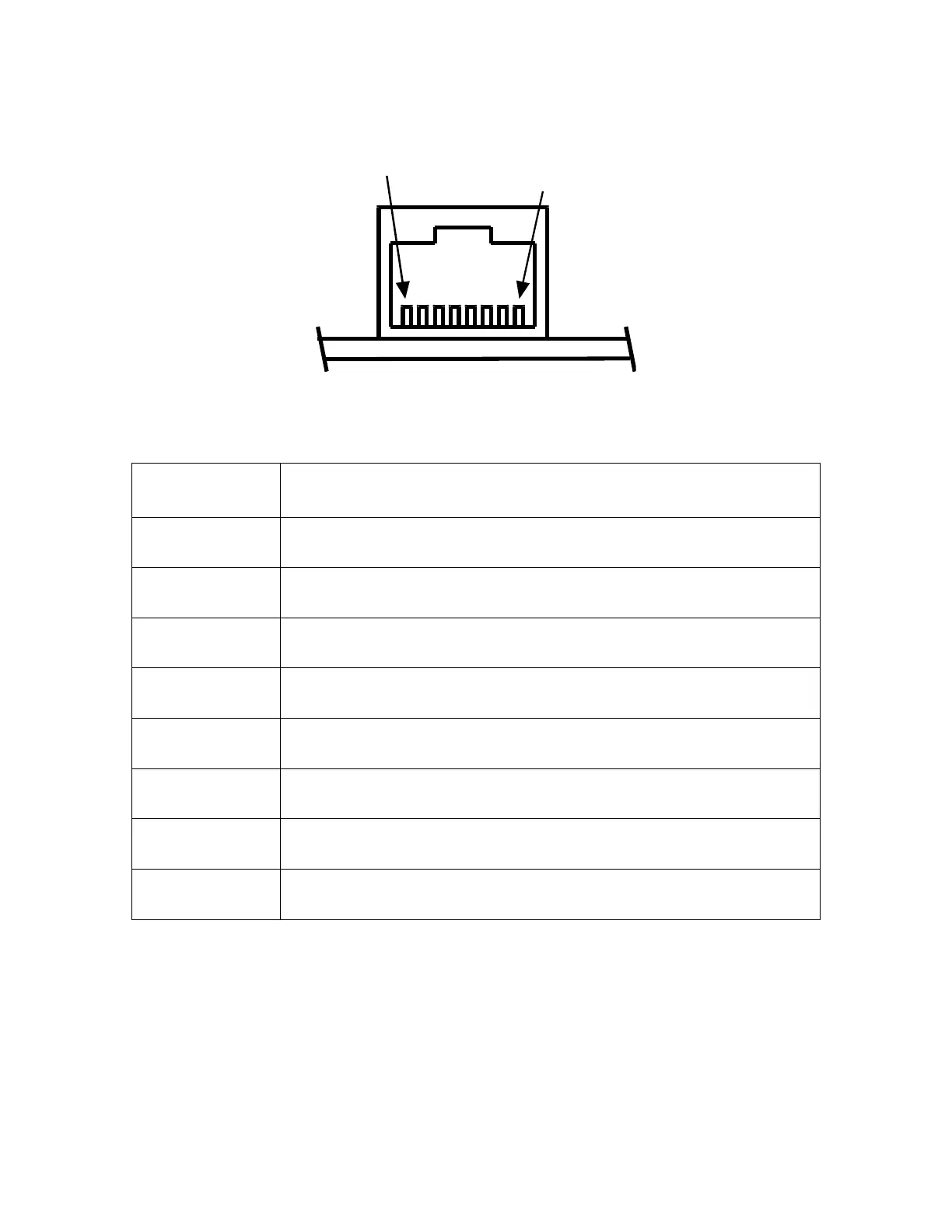

Figure 75: Rear Panel Ethernet RJ-45 Connector Pin Diagram

Pin Description

1 Transmit +

2 Transmit -

3 Receive +

4 No Connect

5 No Connect

6 Receive -

7 No Connect

8 No Connect

Table 22: Rear Panel Ethernet RJ-45 Connector Pin Description
