Each of the individual connectors is described in the subsections that follow.
Power Input Connector
There is a 2.1mm DC barrel type connector on the rear panel that provides DC power to
the unit. This should only be connected to the DC power supply provided with the unit.
The mating connector for this jack is shown in Figure #67 and the pin description is
shown in Table #14.
Inner
Outer
Locking Flange

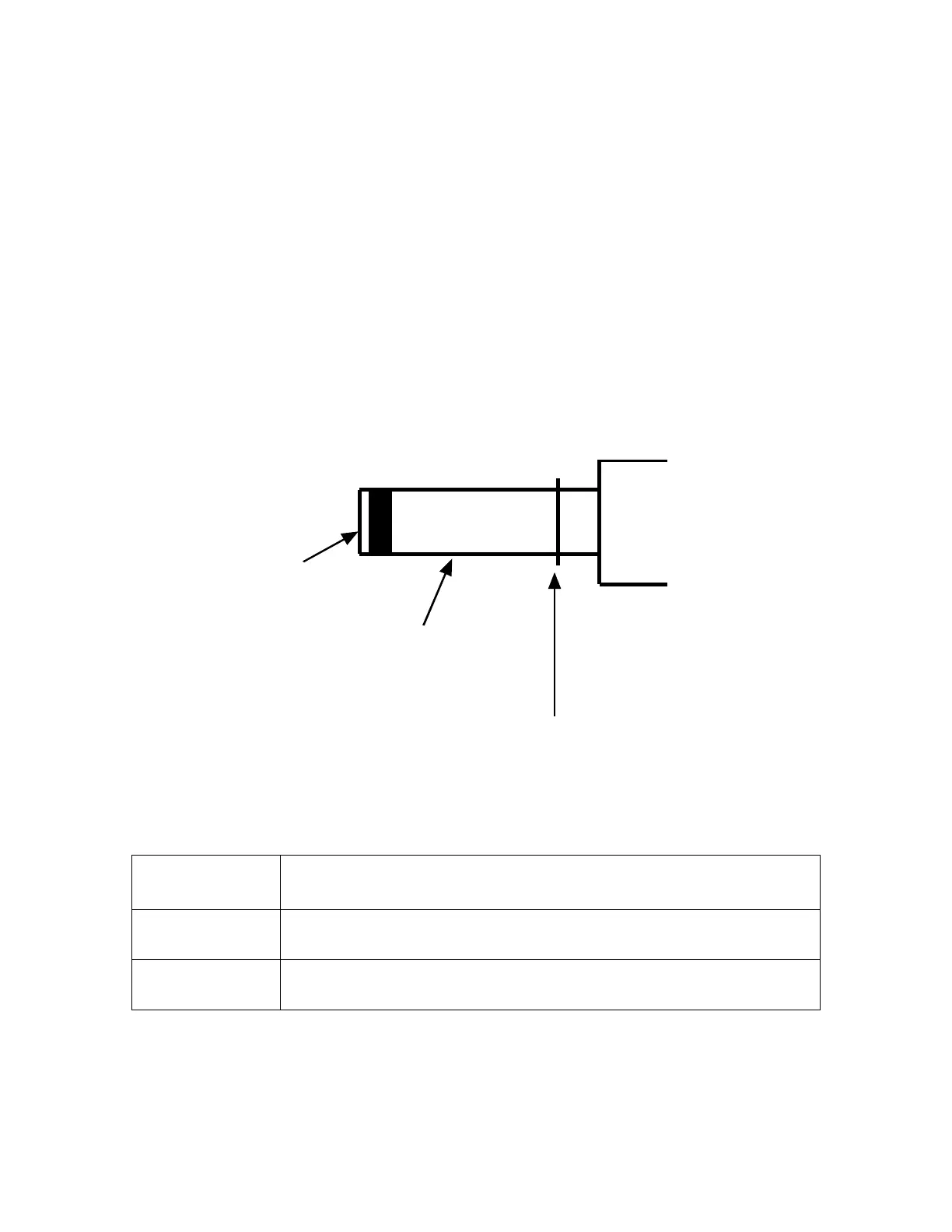

Figure 67: Rear Panel DC Power Connector Pin Diagram
Pin Description
INNER +12V at 1.5A
OUTER Ground
Table 14: Rear Panel DC Power Connector Pin Description
