DIR911T User Guide
82
Telephone Line Connectors
There are at least two (and up to four) “dual” RJ-11 telephone line connectors on the rear
panel used to connect the unit to telephone lines. The units are “dual” in that there are
two physical connectors for each line and the two connectors are pinned out identically.
The connector pin diagram is shown in Figure #68 and the pin description is shown in
Table #15.
6
1

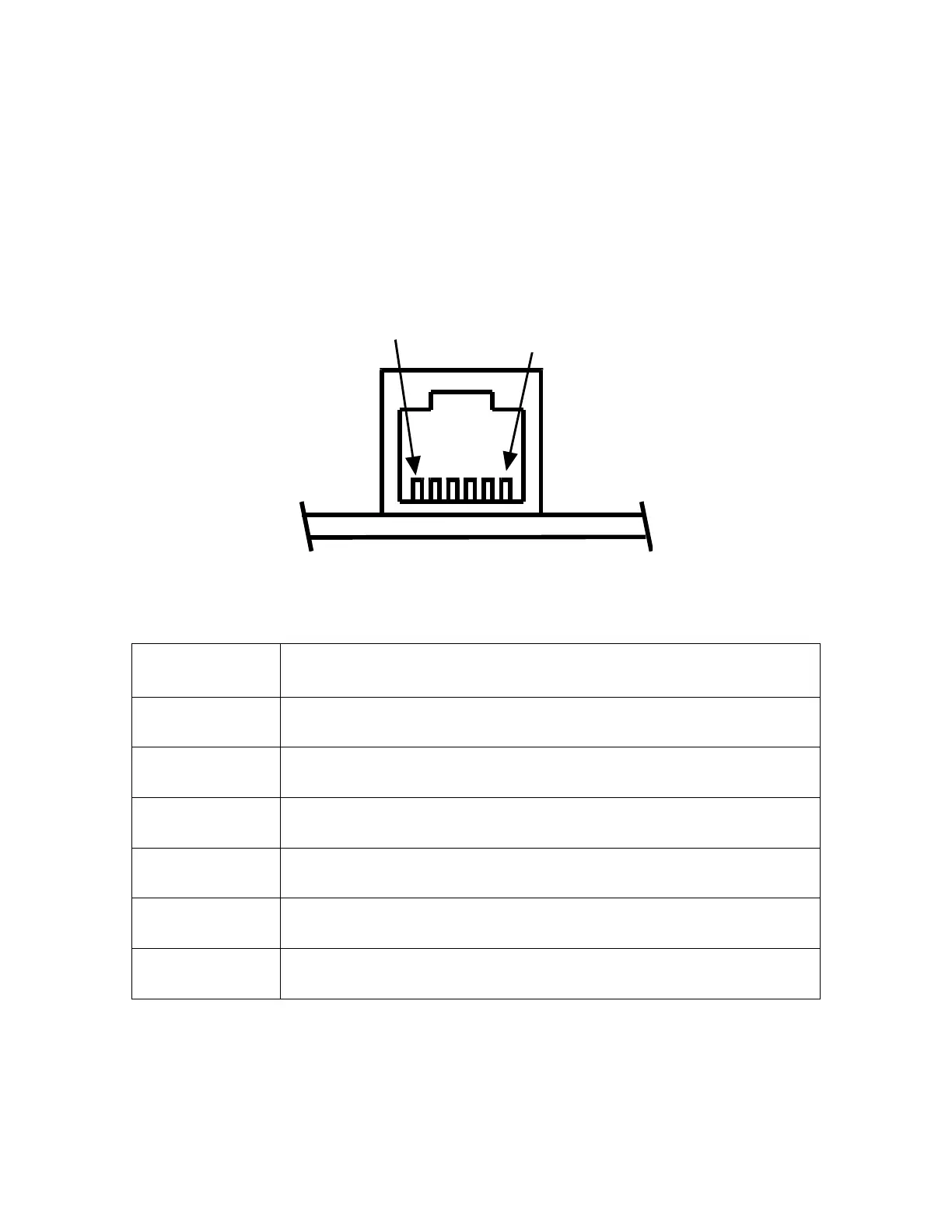

Figure 68: Rear Panel Telephone Line RJ-11 Connector Pin Diagram
Pin Description
1 No Connect
2 No Connect
3 Tip
4 Ring
5 No Connect
6 No Connect
Table 15: Rear Panel Telephone Line RJ-11 Connector Pin Description
